FRONT DOOR LOCK & HANDLE
60930LOCK ASSY, FRONT DOOR, UPPER LH
60940LOCK ASSY, FRONT DOOR, LOWER LH
60950STRIKER ASSY, FRONT DOOR UPPER LOCK
60960STRIKER ASSY, FRONT DOOR LOWER LOCK
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
FAWN,TRIM4#
GREGE,TRIM4#
DK.CHARCOAL,TRIM1#
MD.GRAY,TRIM1#
FAWN,TRIM4#
GREGE,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
FAWN,TRIM4#
GREGE,TRIM4#
DK.CHARCOAL,TRIM1#
MD.GRAY,TRIM1#
FAWN,TRIM4#
GREGE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
BORDEAUX MC.,3P2
RED M.M.,3R3
DK. RED M.M.,3Q3
BEIGE ME.,4M9
BEIGE ME.,4T8
SILKY GOLD M.M.,5A4
LT.GREEN ME.,6U5
TURQUOISE M.M.,779
DK.BLUE MC.,8S6
DK. BROWN M.M.,4U3
GRAY ME.,1G2
LT.BLUE M.M.,8S7
WHITE PEARL CS.,070
WHITE PEARL CS.,073
BORDEAUX MC.,3P2
BEIGE ME.,4M9
SILVER ME.,1F7
LT.GREEN ME.,6U5
GRAYISH BLUE ME.,8N6
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,070
WHITE PEARL CS.,073
BLACK MC.,070 ,1F7 ,209 ,8S6 ,8S7
BORDEAUX MC.,3P2
DK. RED M.M.,3Q3
BEIGE ME.,4M9
SILKY GOLD M.M.,5A4
TURQUOISE M.M.,779
BEIGE ME.,4T8
DK. BROWN M.M.,4U3
GRAY ME.,1D2
SILVER ME.,1F7
GRAY ME.,1G2
LT.GREEN ME.,6U5
GRAYISH BLUE ME.,8N6
BLUE ME.,8P1
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
RED M.M.,3R3
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,070
WHITE PEARL CS.,073
BLACK MC.,209
BORDEAUX MC.,3P2
DK. RED M.M.,3Q3
BEIGE ME.,4M9
SILKY GOLD M.M.,5A4
TURQUOISE M.M.,779
BEIGE ME.,4T8
DK. BROWN M.M.,4U3
SILVER ME.,1F7
GRAY ME.,1D2
GRAY ME.,1G2
LT.GREEN ME.,6U5
GRAYISH BLUE ME.,8N6
BLUE ME.,8P1
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
RED M.M.,3R3
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,070 ,1F7 ,209 ,8S6 ,8S7
RED M.M.,3R3
BEIGE ME.,4T8
SILKY GOLD M.M.,5A4
TURQUOISE M.M.,779
DK.BLUE MC.,8S6
DK. BROWN M.M.,4U3
LT.BLUE M.M.,8S7
WHITE PEARL CS.,070
WHITE PEARL CS.,073
BLACK MC.,209
BORDEAUX MC.,3P2
DK. RED M.M.,3Q3
BEIGE ME.,4M9
GRAY ME.,1D2
SILVER ME.,1F7
GRAY ME.,1G2
LT.GREEN ME.,6U5
GRAYISH BLUE ME.,8N6
BLUE ME.,8P1
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
DK.CHARCOAL,TRIM1#
MD.GRAY,TRIM1#
DK.GRAY,TRIM1#
FAWN,TRIM4#
GREGE,TRIM4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
DK.CHARCOAL,TRIM1#
MD.GRAY,TRIM1#
DK.GRAY,TRIM1#
FAWN,TRIM4#
GREGE,TRIM4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69322STOP, FRONT DOOR LOWER LOCK
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
DK.GRAY,TRIM1#
FAWN,TRIM4#
GREGE,TRIM4#
69420CPLATE ASSY, DOOR LOCK STRIKER
69421CCATCH, DOOR LOCK STRIKER PLATE
69620ACONTROL ASSY, FRONT DOOR LOCK REMOTE, LH
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69749CLAMP, FRONT DOOR LOCK LINK
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9010506260
main90105-06260
9010510436
main90105-10436
9014850003
main90148-50003
9014860022
main90148-60022
9014880028
main90148-80028
9014880040
main90148-80040
9014960079
main90149-60079
9014980029
main90149-80029
9016450031
main90164-50031
9017905118
main90179-05118
9018905003
main90189-05003
9038608066
main90386-08066
9356014012
main93560-14012

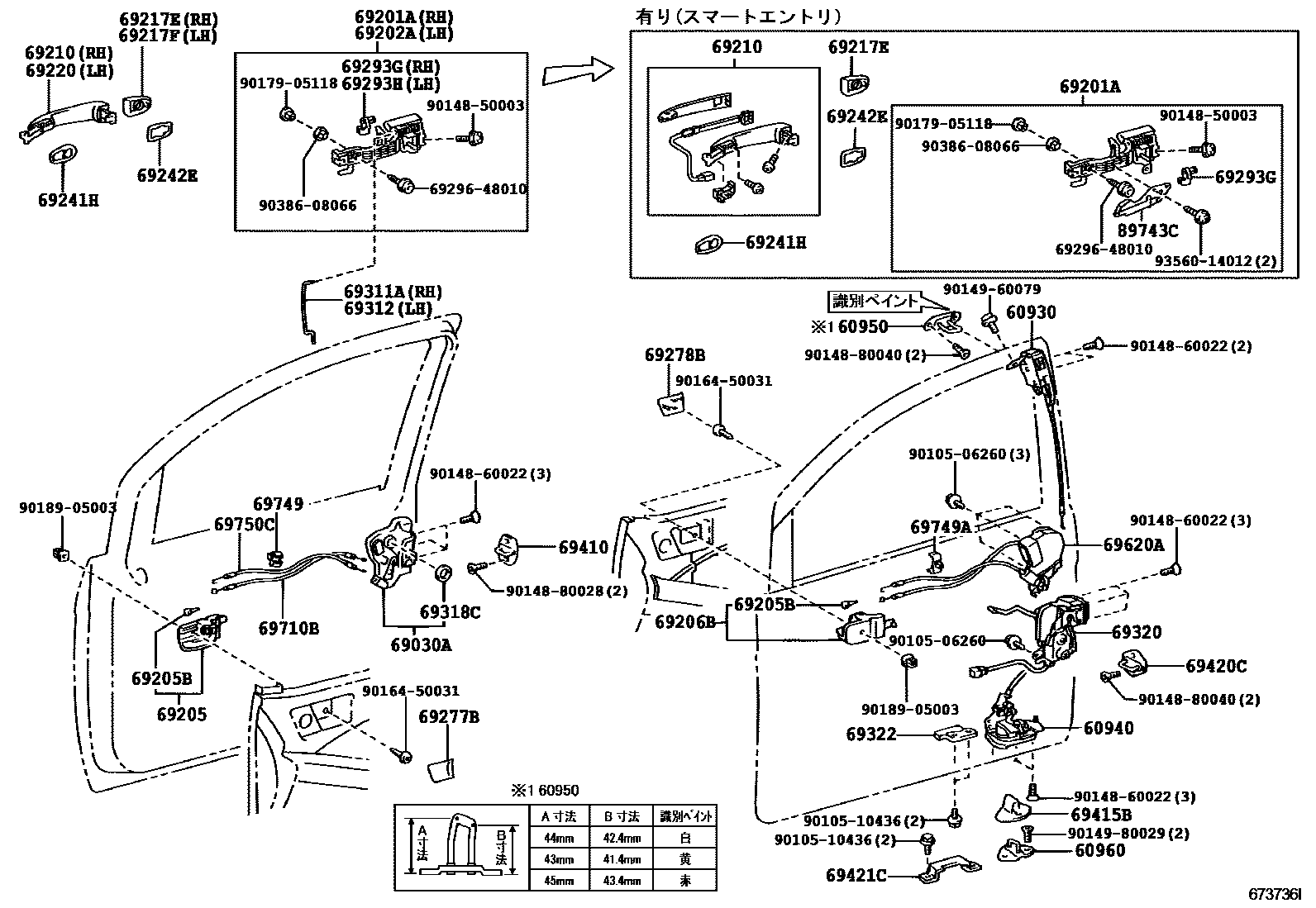

49 parts on this diagram · 2 diagrams in section
