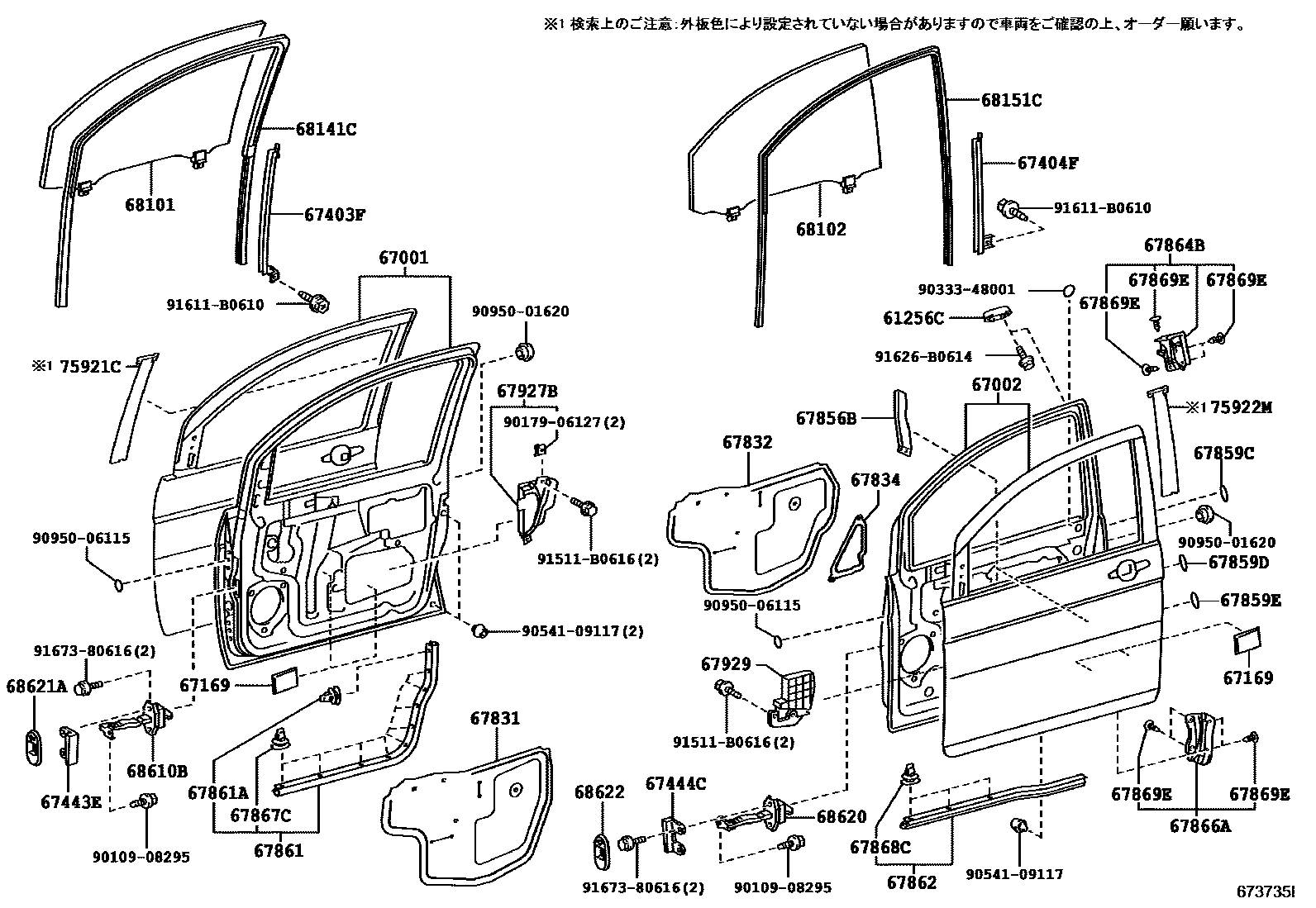

FRONT DOOR PANEL & GLASS
61256CPLATE, ROOF SIDE RAIL, OUTER LH
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67169LINING, DOOR OUTSIDE PANEL REINFORCEMENT
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67443EPLATE, FRONT DOOR INSIDE PANEL, RH
67444CPLATE, FRONT DOOR INSIDE PANEL, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67859CPROTECTOR, FRONT DOOR PANEL, LOWER NO.1
67859DPROTECTOR, FRONT DOOR PANEL, LOWER NO.2
67859EPROTECTOR, FRONT DOOR PANEL, LOWER NO.3
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
67862WEATHERSTRIP, FRONT DOOR, LH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67866AWEATHERSTRIP, FRONT DOOR, NO.3 LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869ECLIP, FRONT DOOR WEATHERSTRIP
67927BCUSHION, SEPARATION DOOR STIFFENER, NO.1
67929CUSHION, SEPARATION DOOR STIFFENER, NO.3
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
68621ACOVER, FRONT DOOR CHECK, RH
68622COVER, FRONT DOOR CHECK, LH
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
9010908295
main90109-08295
9017906127
main90179-06127
9033348001
main90333-48001
9054109117
main90541-09117
9095001620
main90950-01620
9095006115
main90950-06115
91511B0616
main91511-B0616
91611B0610
main91611-B0610
91626B0614
main91626-B0614
9167380616
main91673-80616
45 parts on this diagram · 2 diagrams in section
