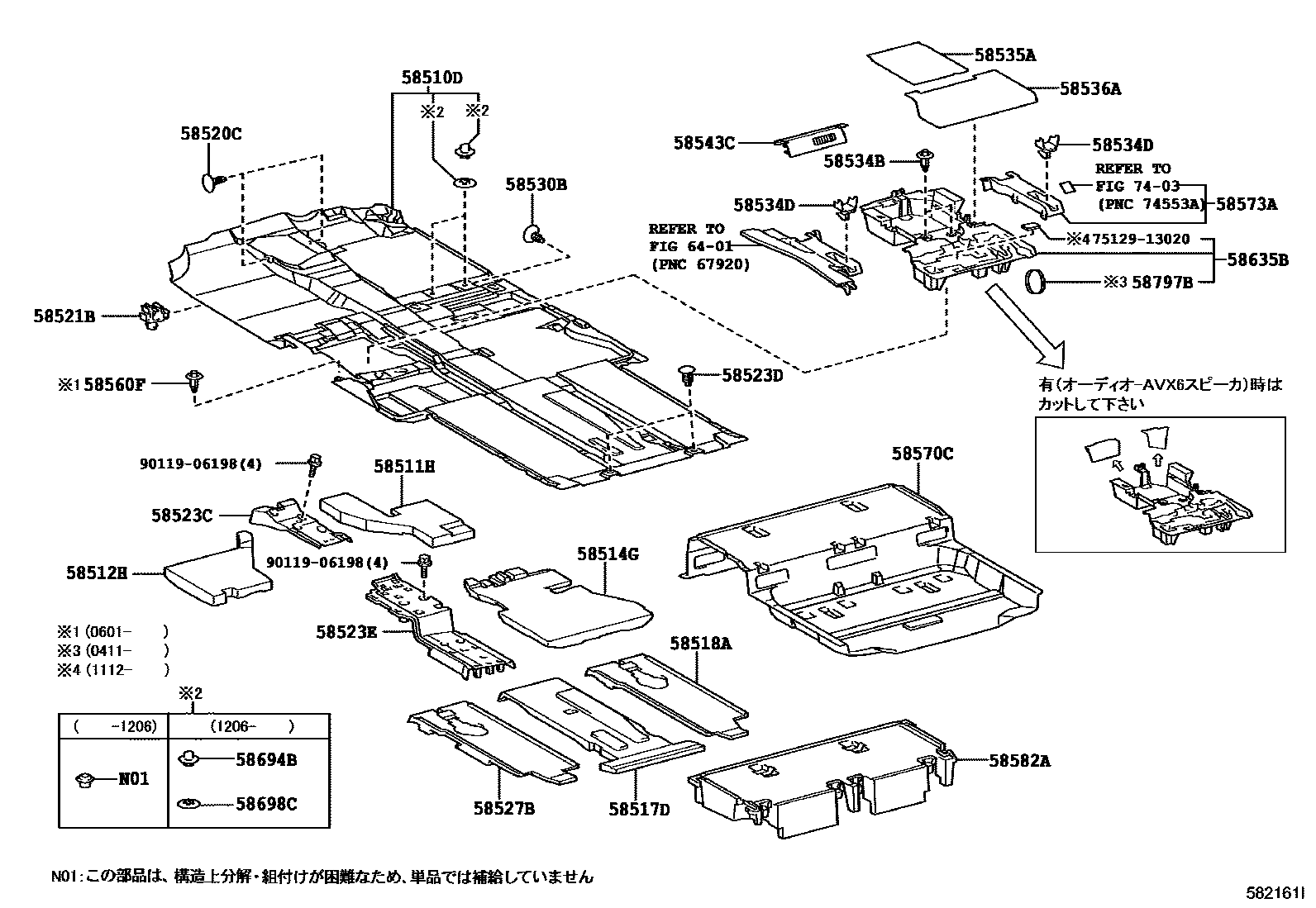

MAT & CARPET
58510DCARPET ASSY, FLOOR, FRONT
GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
58511HMAT, FLOOR, FRONT RH
58512HMAT, FLOOR, FRONT LH
58514GMAT, FLOOR, REAR RH
58517DMAT, REAR FLOOR
58518AMAT, REAR FLOOR, NO.3
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58523CFLOOR CARPET SET BRACKET
58523DCLIP(FOR FLOOR CARPET SET BRACKET)
58523EBRACKET, FLOOR CARPET SET
58527BMAT, REAR FLOOR, NO.3
58530BCLIP(FOR FRONT FLOOR CARPET)
58534BCLIP(FOR FLOOR CARPET CENTER COVER)
58534DCOVER, FLOOR CARPET, CENTER LH
DK.GRAY,TRIM1#
FAWN,TRIM4#
GREGE,TRIM4#
58535ABOARD, FRONT FLOOR MAT, REAR NO.1
58536ABOARD, FRONT FLOOR MAT, REAR NO.2
58543CBOARD, FRONT FLOOR MAT, CENTER NO.1 LH
DK.GRAY,TRIM1#
FAWN,TRIM4#
GREGE,TRIM4#
58560FCLIP(FOR SEAT FLOOR CARPET)
58570CCARPET ASSY, REAR FLOOR
58573APLATE, REAR FLOOR MAT SUPPORT
DK.GRAY,TRIM1#
FAWN,TRIM4#
GREGE,TRIM4#
58582AMAT, 3RD SEAT FLOOR, NO.1
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
58797BBAND, JACK CLAMP
6401
7403
7512913020CUSHION, REAR LICENSE PLATE
9011906198
30 parts on this diagram · 1 diagram in section
