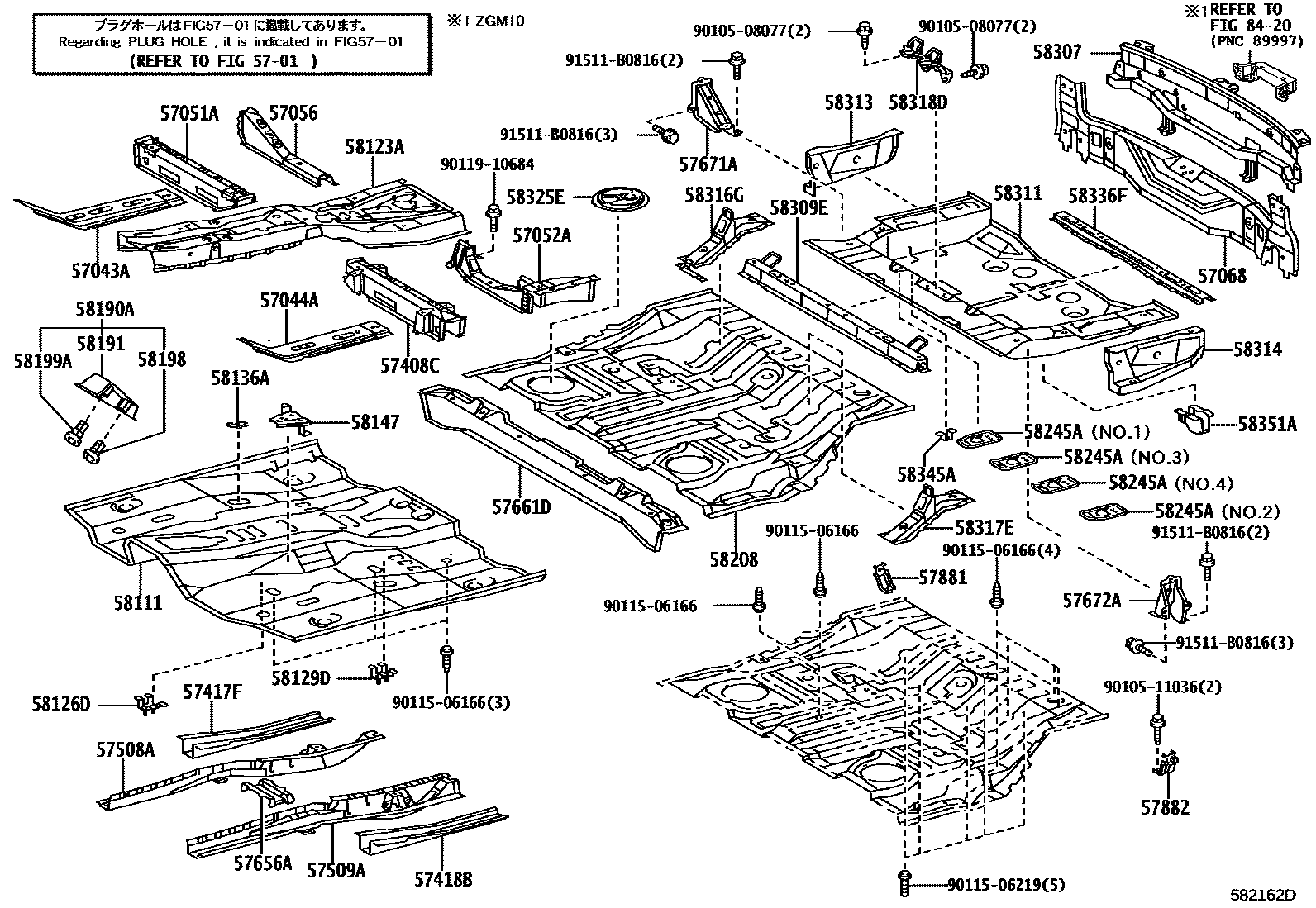

FLOOR PAN & LOWER BACK PANEL
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57056REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.6
57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1
57661DMEMBER, REAR FLOOR CROSS, FRONT
57671ASTAY, REAR FLOOR SIDE MEMBER, RH
57672ASTAY, REAR FLOOR SIDE MEMBER, LH
57881REINFORCEMENT, BELT ANCHOR, NO.3
57882REINFORCEMENT, BELT ANCHOR, NO.4
58123ASUPPORT, SHIFT & SELECT LEVER
58126DPATCH, FRONT FLOOR TO COWL BRACE MOUNTING BRACKET
58129DBRACKET, COWL MOUNTING MEMBER
58136ACOVER, FRONT FLOOR SERVICE HOLE
58147BRACKET, FRONT FLOOR HOUSING, FRONT LH
58190AREST ASSY, FRONT FLOOR FOOT
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58199ACLIP, FOOTREST, NO.2
58208PAN, CENTER FLOOR
58245ABRACKET, REAR SEAT HINGE, CENTER NO.1
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58316GRETAINER, REAR SEAT, NO.1
58317ERETAINER, REAR SEAT, NO.2
58318DRETAINER, REAR SEAT, NO.3
58325ECOVER, REAR FLOOR SERVICE HOLE
58336FREINFORCEMENT, REAR FLOOR PAN, RH
58345ABRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58351ABRACKET, SPARE WHEEL CARRIER
8420
9010508077
main90105-08077
9010511036
main90105-11036
9011506166
main90115-06166
9011506219
main90115-06219
9011910684
main90119-10684
91511B0816
main91511-B0816
49 parts on this diagram · 2 diagrams in section
