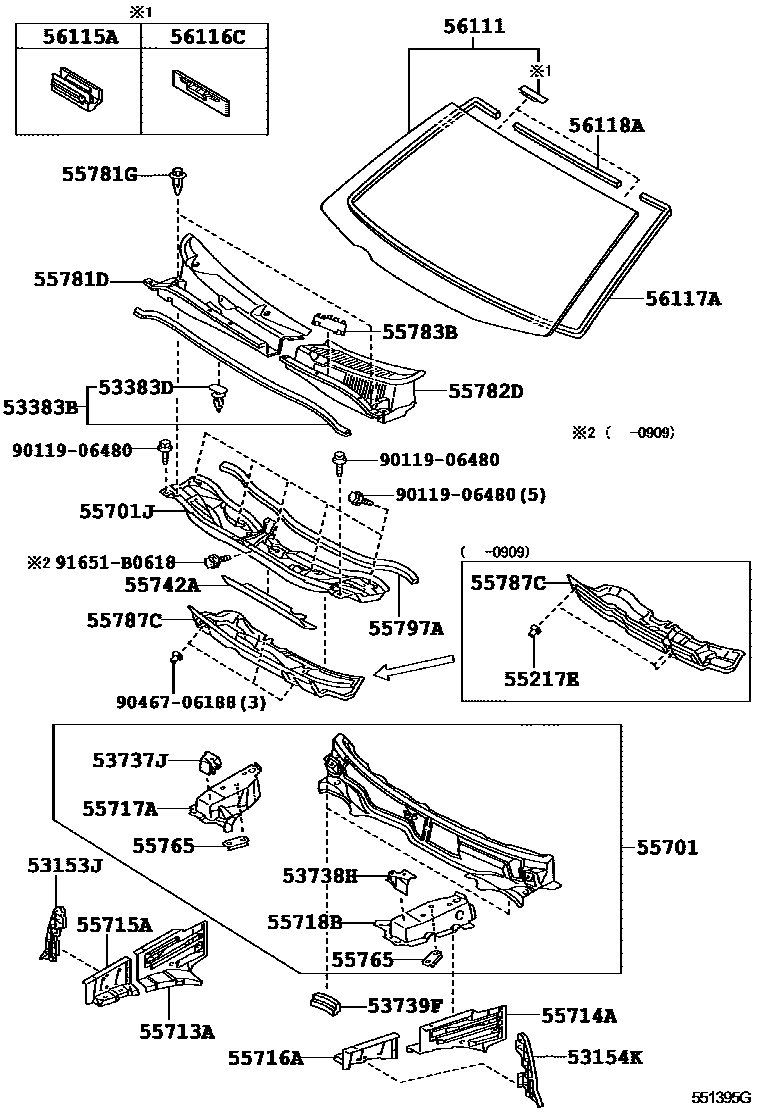

COWL PANEL & WINDSHIELD GLASS
53153JGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154KGUIDE, RADIATOR GRILLE SIDE AIR, LH
53383BSEAL, HOOD TO COWL TOP
53737JPLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53738HPLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53739FSEAL, FRONT FENDER APRON TO FRAME, REAR
55701PANEL SUB-ASSY, COWL
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55716ABRACE, COWL TOP TO APRON, LH
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55765BRACKET, HOOD DAMPER MOUNTING
55781DLOUVER, COWL TOP VENTILATOR, RH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55787CINSULATOR, COWL TOP PANEL, NO.1
55797ASEAL, COWL WATER EXTRACT
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
9011906480
main90119-06480
9046706188
main90467-06188
91651B0618
main91651-B0618
32 parts on this diagram · 1 diagram in section
