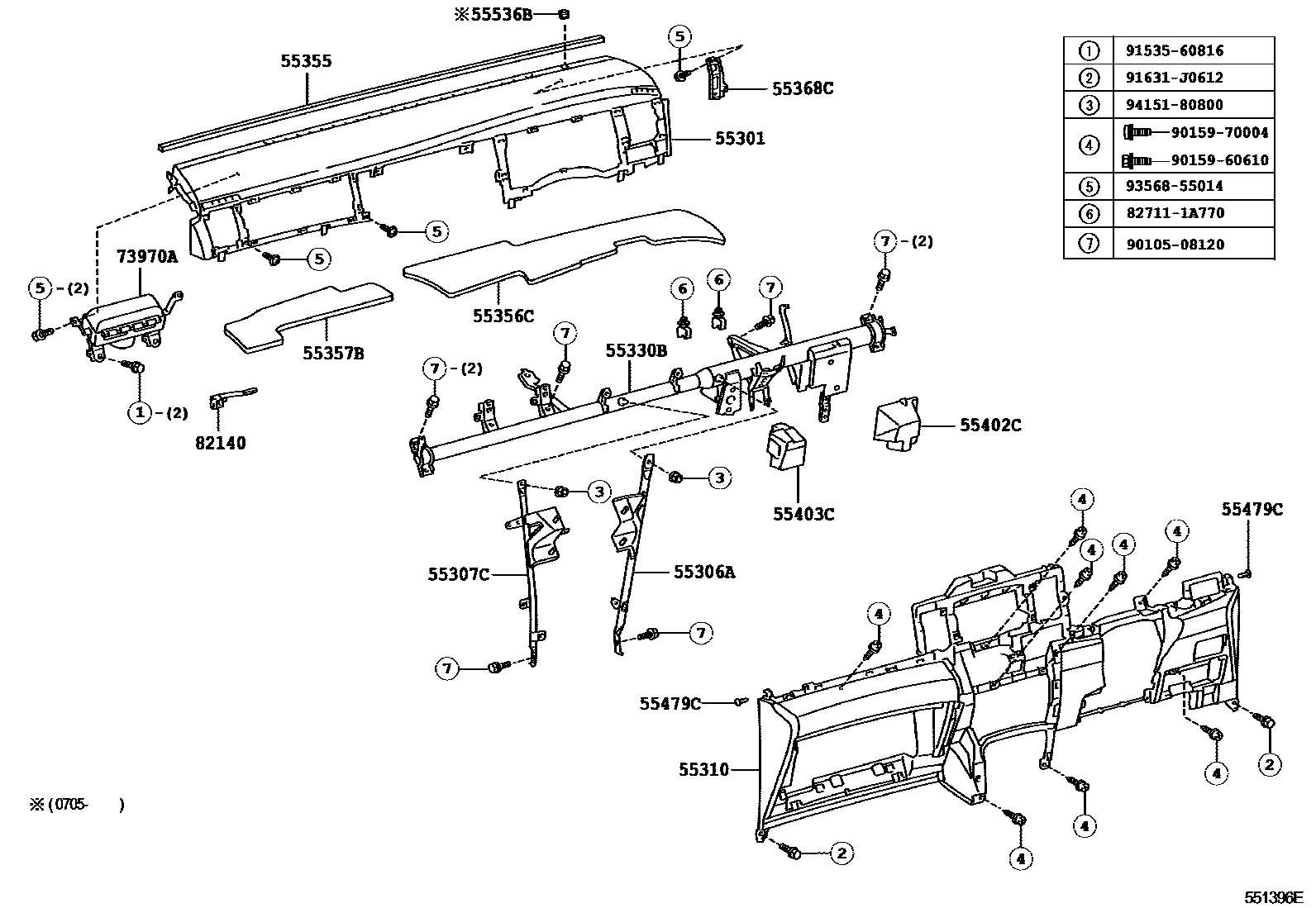

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1��������� 0004 1����� 0005 1����������

55301PANEL SUB-ASSY, INSTRUMENT

main55300-44010-B0iANM1#,ZNM10..PLTNA200409-200705

DK.GRAY,TRIM1#

main55300-44010-E0iANM1#,ZNM10200409-200705

ORCHID BROWN,TRIM4#

main55300-44010-E1iANM1#,ZNM10..L200705-200909

ASH BROWN,TRIM4#

main55300-44011-E1iZGM10,15..L201305-201801

ASH BROWN,TRIM4#

main55300-44020-B0supersedes 55300-44010-B0iANM1#,ZNM10..PLTNA200705-200909

DK.GRAY,TRIM1#

main55300-44020-E0iZGM1#..PLTNA200909-201106

ASH BROWN,TRIM4#

main55300-44021-E0iZGM1#..G201305-201801

ASH BROWN,TRIM4#

main55300-44021-B0supersedes 55300-44011-B0iZGM1#..PLTNA201310-201801

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-44030iANM1#,ZNM10200409-200909

main55306-44031iZGM1#200909

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-44010iANM1#,ZNM10200409-200909

main55307-44011iZGM1#200909

55310PANEL ASSY, INSTRUMENT, LOWER

main55310-44010-B0iANM1#,ZNM10..PLTNA200409-200705

DK.CHARCOAL,TRIM1#

sub55310-44011

main55310-44010-B1iANM1#,ZNM10..PLTNA200705-200909

MD.GRAY,TRIM1#

sub55310-44011

main55310-44010-E0iANM1#,ZNM10200409-200705

FAWN,TRIM4#

sub55310-44011

main55310-44010-E1iANM1#,ZNM10200705-200909

GREGE,TRIM4#

sub55310-44011

main55310-44020-B0iZGM1#..PLTNA200909-201106

MD.GRAY,TRIM1#

main55310-44020-B1iZGM1#..PLTNA201106-201305

DK.GRAY,TRIM1#

main55310-44020-E0iZGM1#200909-201305

GREGE,TRIM4#

main55310-44021-B1iZGM1#..PLTNA201305-201801

DK.GRAY,TRIM1#

main55310-44021-E0iZGM1#..G,L201305-201801

GREGE,TRIM4#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-44100iANM10..PLTNA;ANM15..L,PLTNA200409-200909

main55330-44110iZNM10;ANM10..L200409-200909

main55330-44140iANM15..G200409-200909

main55330-44150iANM10..G200409-200909

main55330-44160iZGM1#..L,PLTNA200909-201706

main55330-44161iZGM1#..L,PLTNA201707

main55330-44170iZGM1#..G200909-201706

main55330-44171iZGM1#..PLTNA201707

55355CUSHION, INSTRUMENT PANEL, NO.1

main55349-44060iZGM1#201504

main55349-52060iZGM1#200909-201503

main55355-52012iANM1#,ZNM10200409-200607

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-44020iZGM1#200909

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-13040iZGM1#200909

55368CBRACKET, METER MOUNTING

main55368-44020iANM1#,ZNM10200409-200909

55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH

main55402-44010iANM1#,ZNM10200409-200909

55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55403-44010iANM1#,ZNM10200409-200909

55479CCLIP(FOR INSTRUMENT LOWER COVER)

main90467-05020-22×2iZGM1#200909-201801

BLACK

sub90467-05027

55536BCOVER, LIGHT CONTROL SWITCH HOLE

main55536-53010-B0iZGM1#..PLTNA200909-201106

DK.GRAY,TRIM1#

main55536-53010-E0supersedes 55536-53010-E0iANM1#,ZNM10..G,PLTNA200705-200909

ASH BROWN,TRIM4#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-44050iANM1#,ZNM10200409-200909

82140WIRE ASSY, INSTRUMENT PANEL

main82140-44010iANM1#,ZNM10200409-200909

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9010508120

main90105-08120

9015960610

main90159-60610

9015970004

main90159-70004

9153560816

main91535-60816

91631J0612

main91631-J0612

9356855014

main93568-55014

9415180800

main94151-80800

23 parts on this diagram · 5 diagrams in section
