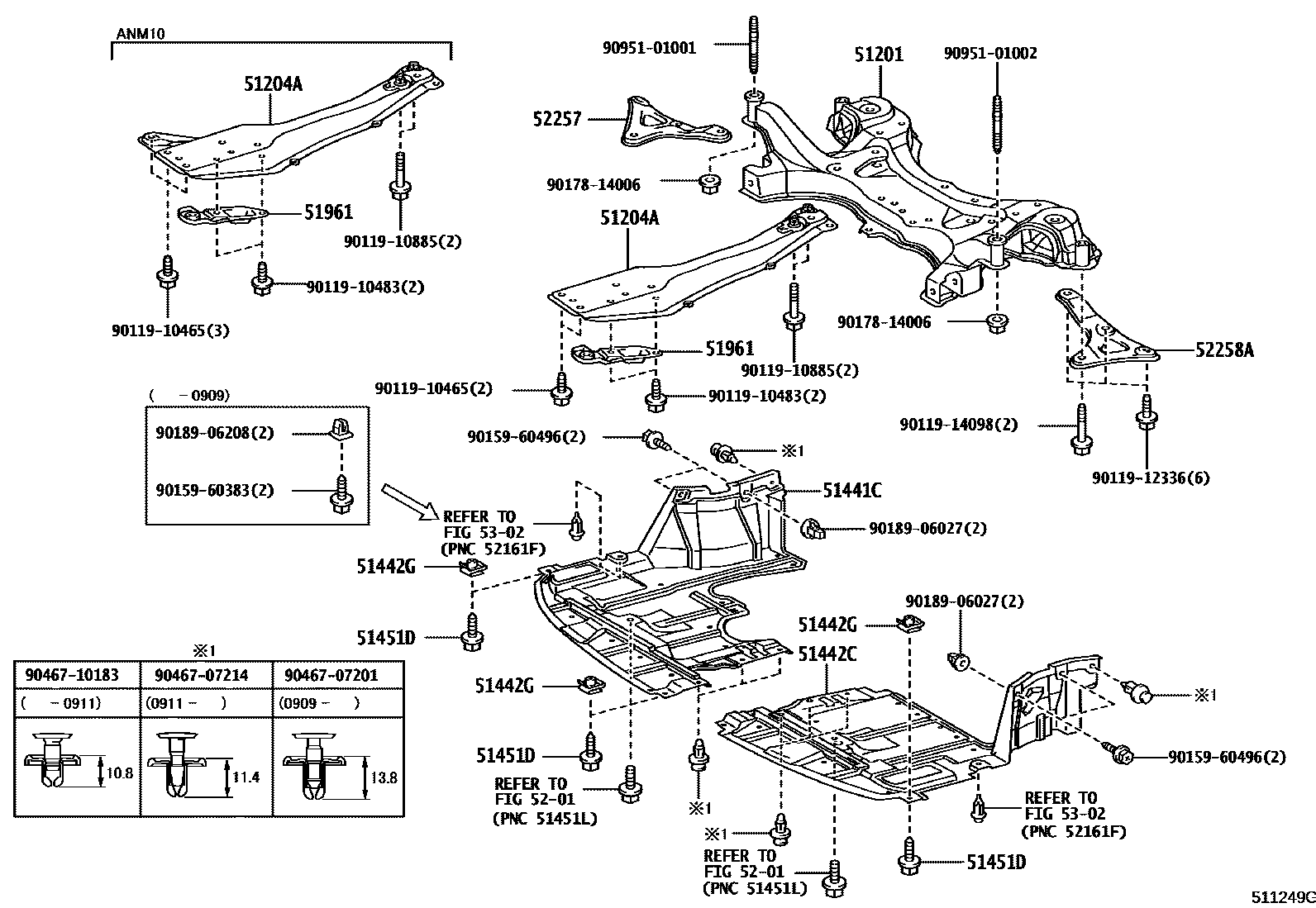

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20361iANM10,ZNM10200409-201309

sub51201-0M010

sub51201-20362

main51201-20362iZGM10,11201310

sub51201-28231

main51201-20370iZGM15200409-201311

sub51201-20371

main51201-20371iZGM15201312

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-21030iANM10200409-200909

main51204-44010iZNM10200409-200909

main51204-44020iZGM15200409-200909

51441CCOVER, ENGINE UNDER, RH

main51441-44050iANM1#,ZNM10200409-200909

51442CCOVER, ENGINE UNDER, LH

main51442-44050iANM1#,ZNM10200409-200902

sub51442-44051

main51442-44051iZGM1#200903-200909

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-05138iANM1#,ZNM10200409-201801

51451DSCREW, NO.1

main90159-60215iANM1#,ZNM10200409-201801

51961HOOK, NO.1

main51963-32040iANM1#,ZNM10200409-200909

5201

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-20070iANM1#,ZNM10200409-201104

sub52257-20071

main52257-20071iZGM1#201105

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-20070iANM1#,ZNM10200409-201104

sub52258-20071

main52258-20071iZGM1#201105

5302

9011910465

main90119-10465

9011910483

main90119-10483

9011910885

main90119-10885

9011912336

main90119-12336

9011914098

main90119-14098

9015960383

main90159-60383

9015960496

main90159-60496

9017814006

main90178-14006

9018906027

main90189-06027

9018906208

main90189-06208

9046707201

main90467-07201

9046707214

main90467-07214

9046710183

main90467-10183

9095101001

main90951-01001

9095101002

main90951-01002

26 parts on this diagram · 2 diagrams in section
