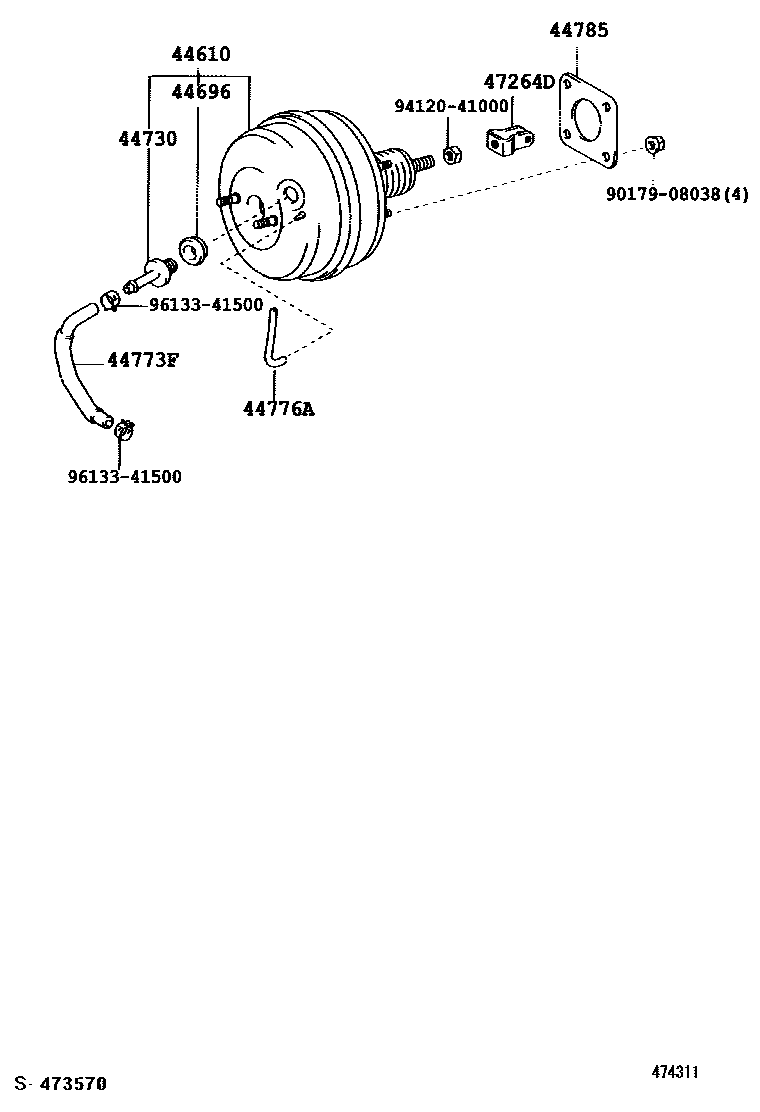

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-44260iZNM10200409-200602

main44610-44261iZNM10200603-200909

main44610-44290iZGM10200909-201310

main44610-44300iZGM11,15200909-201310

main44610-44310iZGM11,15201310

main44610-44320iZGM10201310

main44610-68030iANM1#200409-200602

main44610-68031iANM1#200603-200909

main44610-68040iANM15200409-200909

44696GROMMET, CHECK VALVE

main90480-24439iANM1#,ZNM10200409-200602

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iZNM10200603-200909

main44730-22150iANM1#200409-200602

44773FHOSE, UNION TO CHECK VALVE

main44773-68010iANM1#200409-200909

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main90999-92002iANM1#200409-200909

44785GASKET, BRAKE BOOSTER

main44785-20020iANM1#,ZNM10200409-200909

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63010iANM1#,ZNM10200409-200909

9017908038

main90179-08038

9412041000

main94120-41000

9613341500

main96133-41500

10 parts on this diagram · 4 diagrams in section
