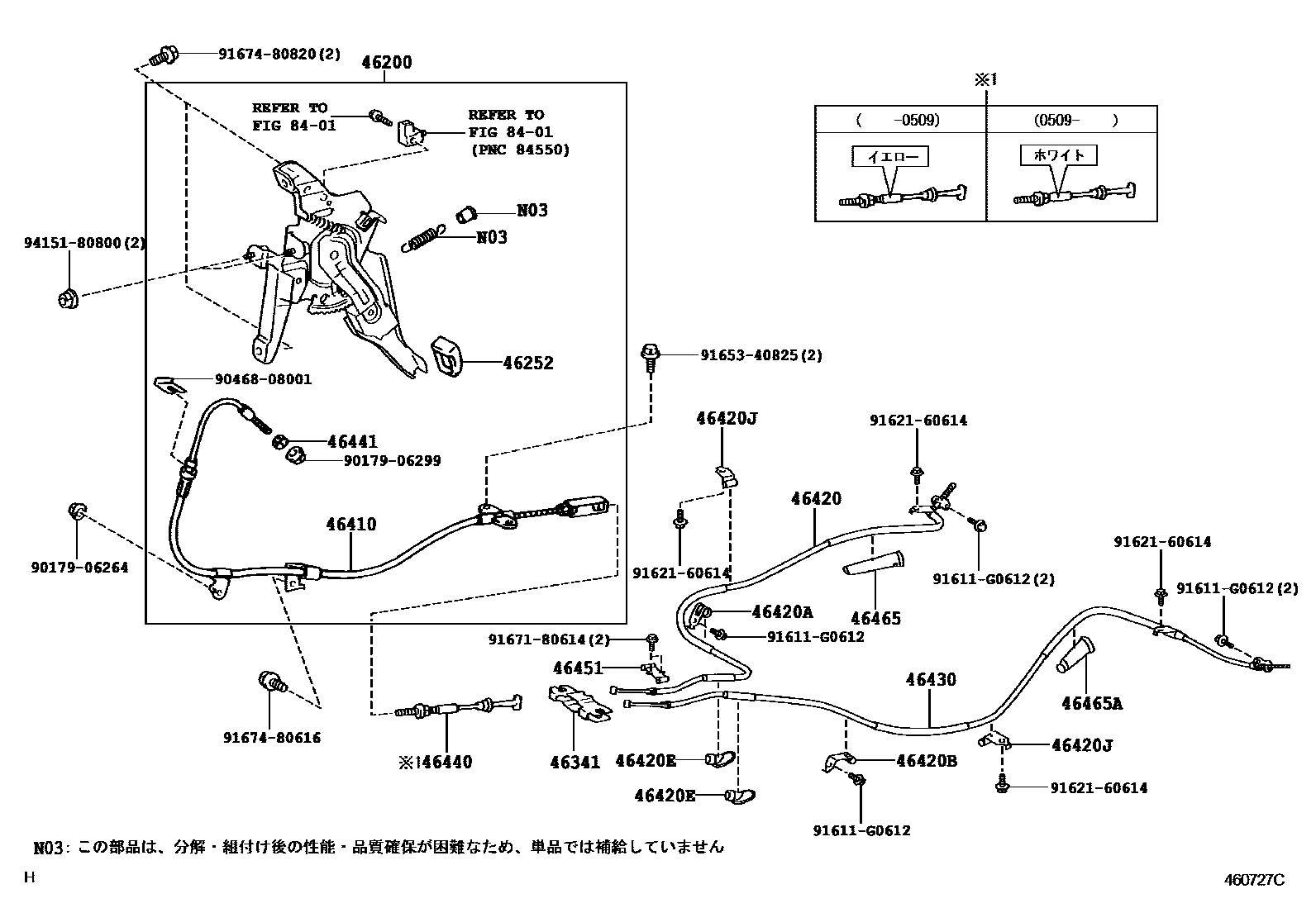

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-68020iANM10,ZNM10200409-200909

main46200-68030iANM15200409-200909

46252PAD, PARKING PEDAL

main46252-68010iZGM1#200409-200909

46341EQUALIZER, PARKING BRAKE

main46341-12020iANM15200409-200909

main46341-20070iANM10,ZNM10200409-200911

main46341-42020iZGM10,11200912

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-68020iZGM10,11200409-200909

main46410-68030iANM15200409-200909

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-44060iZNM10200409-201801

main46420-44070iZGM11200409-201801

main46420-44080iZGM15200409-201801

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46421-44010iANM1#,ZNM10200409-200909

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46431-44010iANM1#,ZNM10200409-200909

46420EGROMMET(FOR PARKING BRAKE CABLE CLAMP)

main46423-44010iANM10,ZNM10200409-200909

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01C69iANM1#,ZNM10200409-200909

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-44060iZNM10200409-201801

main46430-44070iANM10200409-201801

main46430-44080iANM15200409-201801

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-44010iZGM10,11200909

main46440-44010iANM10,ZNM10200509-200909

main46440-68020iANM10,ZNM10200409-200509

main46440-68030iANM15200409-200909

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iANM1#,ZNM10200409-200909

46451BRACKET, CABLE SUPPORT

main46451-68010iANM10,ZNM10200409-200909

46465GUIDE, PARKING BRAKE CABLE, RH

main46465-44010iANM1#,ZNM10200409-200909

46465AGUIDE, PARKING BRAKE CABLE, LH

main46465-28030iZGM1#201203

main46465-44020iZGM1#200409-201203

sub46465-28030

8401

9017906264

main90179-06264

9017906299

main90179-06299

9046808001

main90468-08001

91611G0612

main91611-G0612

9162160614

main91621-60614

9165340825

main91653-40825

9167180614

main91671-80614

9167480616

main91674-80616

9167480820

main91674-80820

9415180800

main94151-80800

26 parts on this diagram · 3 diagrams in section
