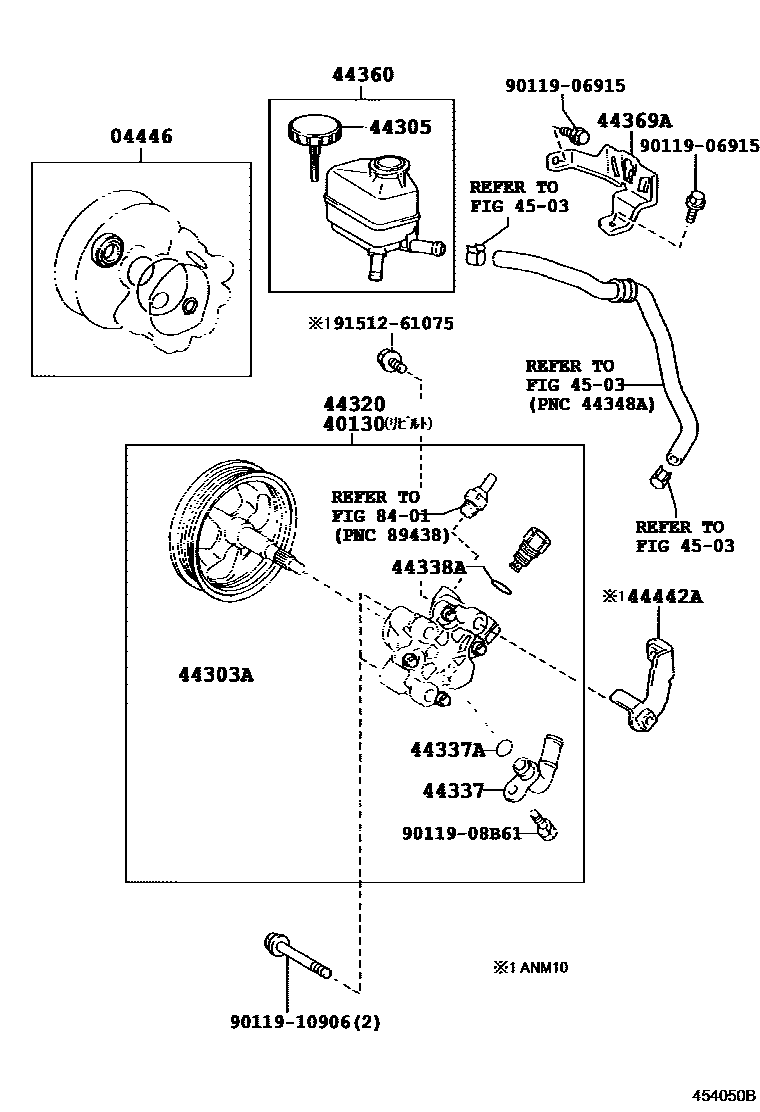

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iANM15;ANM10..PLTNA¥970200409

40130PUMP ASSY,VANE REBUILT

main40130-44140iANM15;ANM10..PLTNA¥66,500200409-200909

sub44310-44140¥94,600

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iANM15;ANM10..PLTNA¥5,400200409

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-20041iANM15;ANM10..PLTNA¥2,240200409-200711

sub44305-20050¥2,230

main44305-20050iANM15;ANM10..PLTNA¥2,230200712

44320PUMP ASSY, VANE

main44310-44140iANM15;ANM10..PLTNA¥94,600200409-200909

44337UNION, POWER STEERING SUCTION PORT

main44337-32110iANM15;ANM10..PLTNA¥1,430200409-200412

main44337-48010iANM15;ANM10..PLTNA¥1,670200501

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iANM15;ANM10..PLTNA¥140200409

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-18009iANM15;ANM10..PLTNA¥140200409

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-20150iANM15;ANM10..PLTNA¥10,400200409-200412

main44360-44040iANM15;ANM10..PLTNA¥10,200200501-200909

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-20060iANM15;ANM10..PLTNA¥1,210200409

44442ABRACKET, VANE PUMP, REAR

main44442-21010iANM10..PLTNA¥510200409

4503

8401

9011906915

main90119-06915¥60

9011908B61

main90119-08B61¥60

9011910906

main90119-10906¥270

9151261075

main91512-61075¥220

17 parts on this diagram · 1 diagram in section
