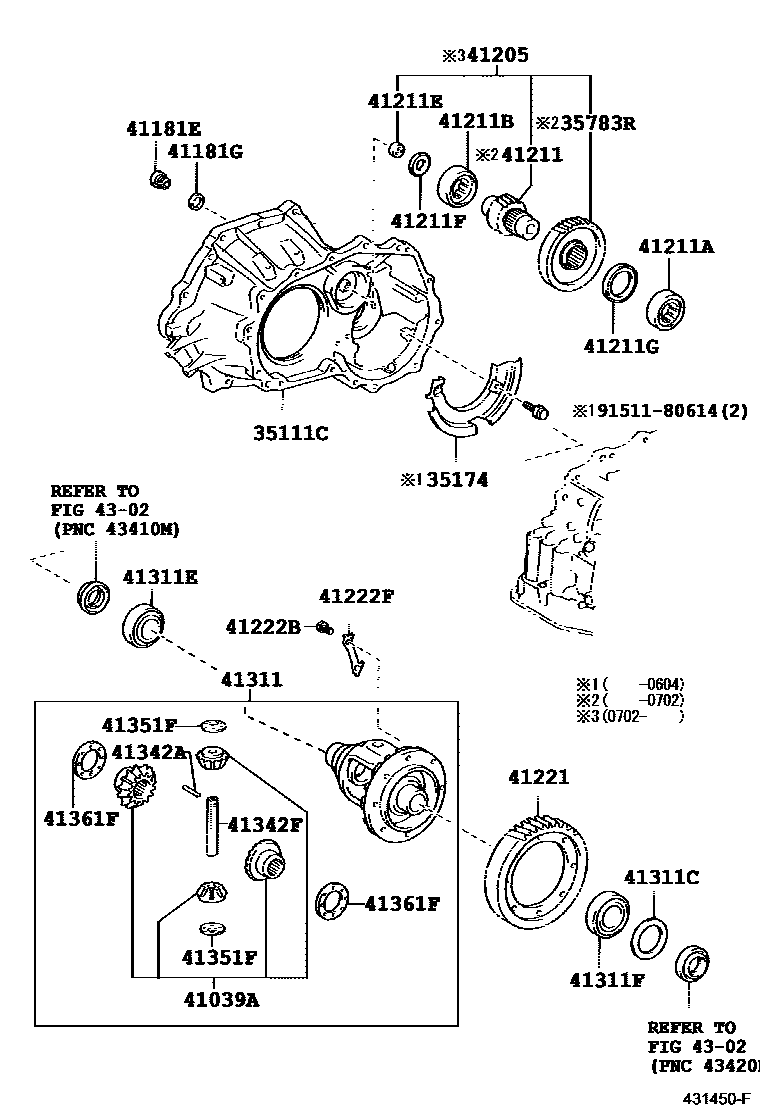

FRONT AXLE HOUSING & DIFFERENTIAL
35174SEPARATOR, TRANSAXLE HOUSING OIL
35783RGEAR, COUNTER DRIVEN
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
41205PINION SUB-ASSY, DIFFERENTIAL DRIVE
41211PINION, DIFFERENTIAL DRIVE
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211EPLUG(FOR DIFFERENTIAL DRIVE PINION)
41211FBEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION RH)
41211GBEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION LH)
41221GEAR, FRONT DIFFERENTIAL RING
sub41221-52091
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41311CASE, FRONT DIFFERENTIAL
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
sub41342-52060
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
4302
9151180614
main91511-80614
26 parts on this diagram · 1 diagram in section
