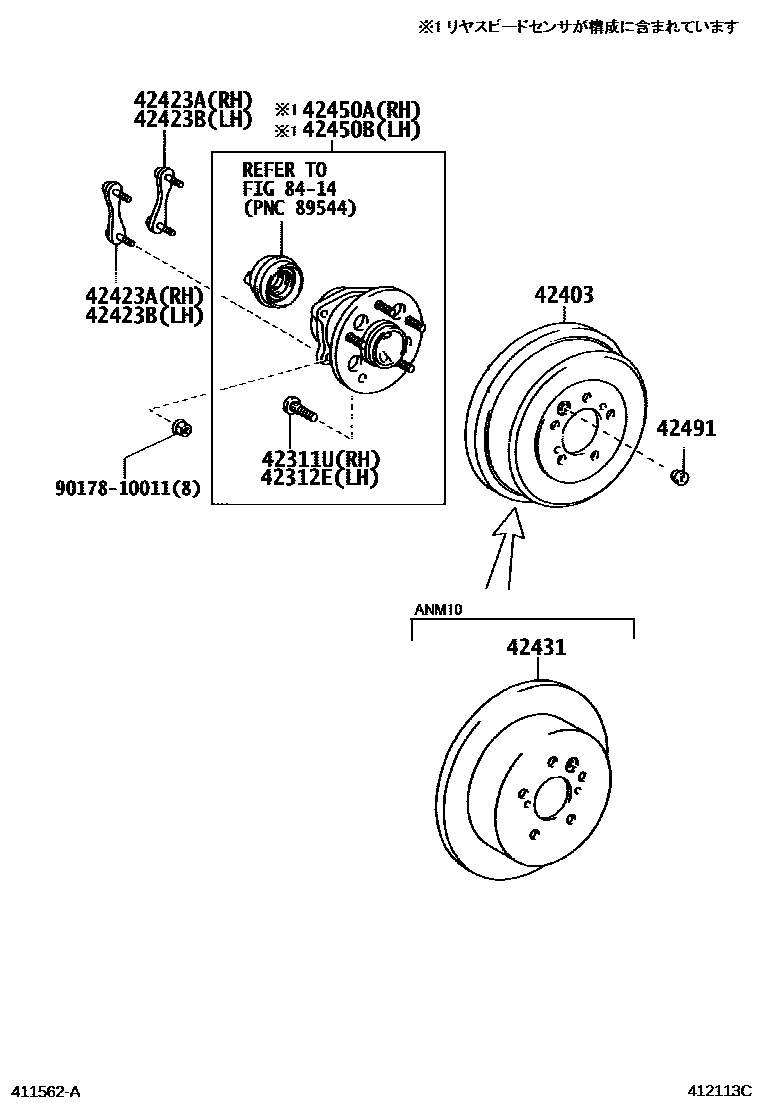

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iANM1#,ZNM10200409-200909

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iANM1#,ZNM10200409-200909

42403DRUM SUB-ASSY, REAR BRAKE

main42431-28100iZNM10200409-200909

42423ARETAINER, REAR AXLE BEARING, INNER RH

main42423-28020iZGM10,11200409-200909

42423BRETAINER, REAR AXLE BEARING, INNER LH

main42423-28020iANM10,ZNM10200409-200909

42431DISC, REAR

main42431-28091iANM1#200409-200805

sub42431-44030

main42431-44030iANM1#200806-200909

sub42431-44031

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-44020iANM15200409-200909

sub42410-44021

main42450-42030iANM10,ZNM10200409-200909

main42450-44030iZGM10,11200909

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-44020iANM15200409-200909

sub42410-44021

main42450-42030iANM10,ZNM10200409-200909

main42450-44030iZGM10,11200909

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-14010iZNM10200409-200909

main47491-22020iANM1#200409-200909

8414

9017810011

main90178-10011

11 parts on this diagram · 4 diagrams in section
