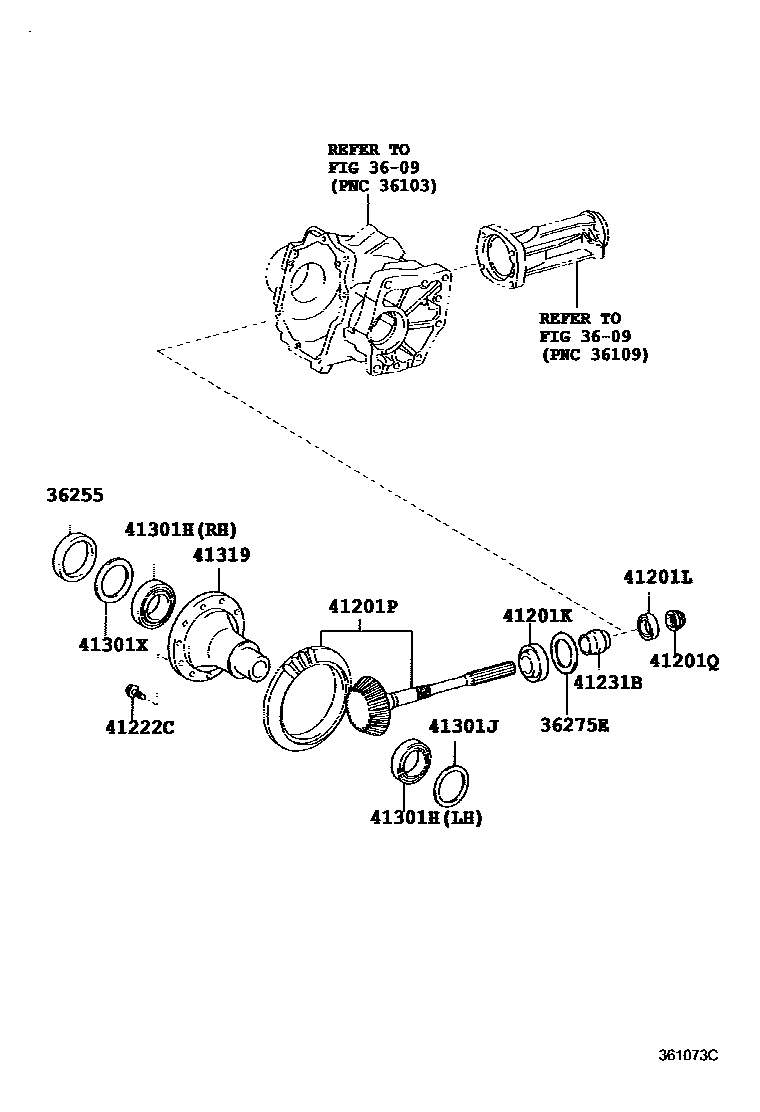

TRANSFER GEAR
3609
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
36275EWASHER, TRANSFER OUTPUT SHAFT
41201KBEARING (FOR TRANSFER DRIVEN PINION FRONT)
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
41201PGEAR KIT, TRANSFER
41201QNUT (FOR TRANSFER GEAR)
41222CBOLT (FOR TRANSFER RING GEAR)
41231BSPACER, TRANSFER PINION BEARING
41301HBEARING(FOR RING GEAR MOUNTING CASE)
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2
41319CASE, TRANSFER RING GEAR MOUNTING
13 parts on this diagram · 1 diagram in section
