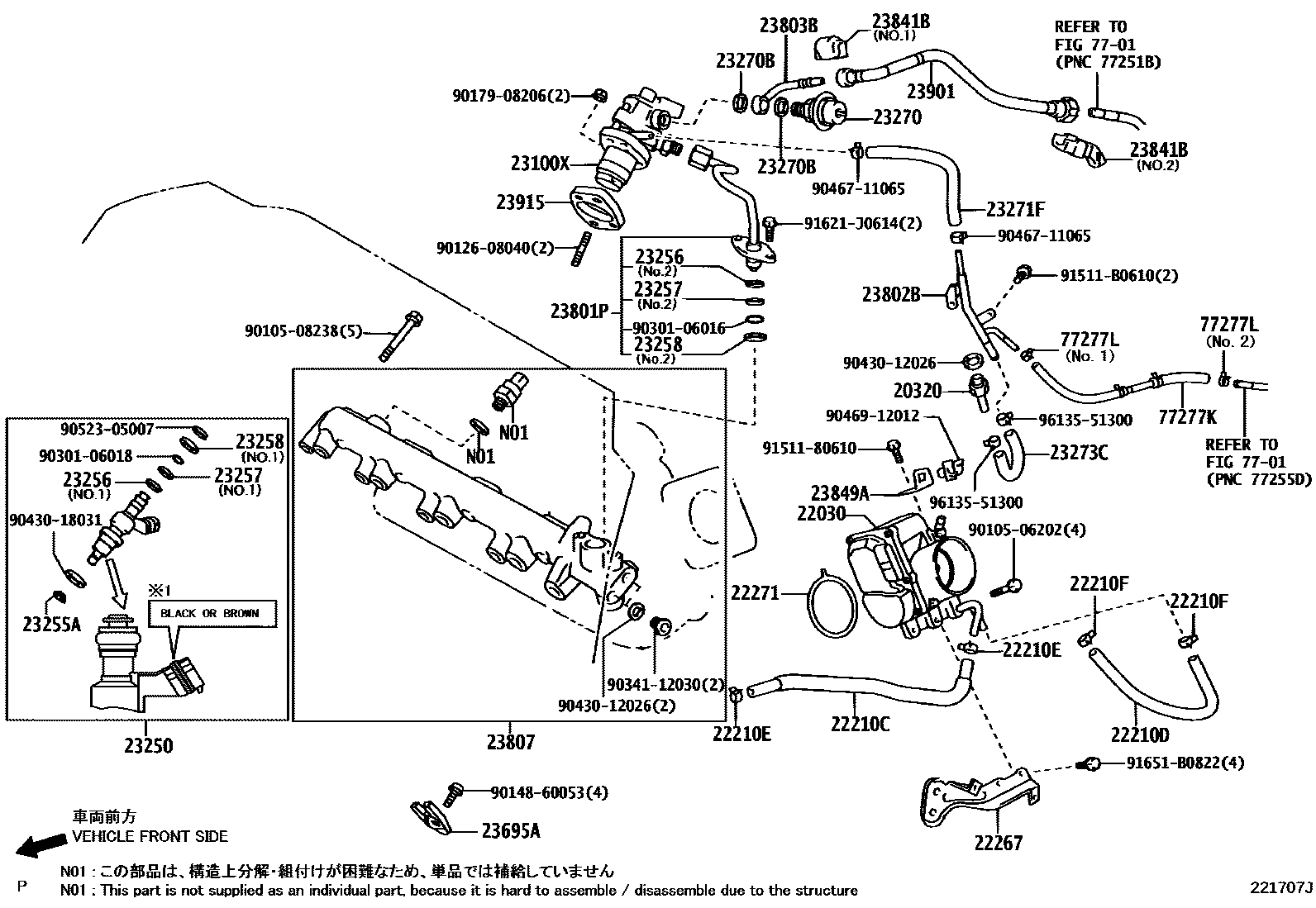

FUEL INJECTION SYSTEM
20320VALVE ASSY, FUEL RELIEF
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22210BODY ASSY, THROTTLE
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
22267BRACKET, THROTTLE BODY
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23250INJECTOR ASSY, FUEL
BLACK
BROWN
BLACK
BROWN
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23257RING, FUEL INJECTOR BACK-UP, NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
23273CHOSE, FUEL, NO.2
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23803BPIPE SUB-ASSY, FUEL, NO.3
23807PIPE SUB-ASSY, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23849ASUPPORT, FUEL PIPE
23901TUBE SUB-ASSY, FUEL
23915INSULATOR, FUEL PUMP
7701FUEL TANK & TUBE
77277KHOSE, FUEL(FOR RETURN HOSE)
77277LCLIP, HOSE(FOR RETURN HOSE)
9010506202
main90105-06202
9010508238
main90105-08238
9012608040
main90126-08040
9014860053
main90148-60053
9017908206
main90179-08206
9030106016
main90301-06016
9030106018
main90301-06018
9034112030
main90341-12030
9043012026
main90430-12026
9043018031
main90430-18031
9046711065
main90467-11065
9046912012
main90469-12012
9052305007
main90523-05007
9151180610
main91511-80610
91511B0610
main91511-B0610
91621J0614
main91621-J0614
91651B0822
main91651-B0822
9613551300
main96135-51300
49 parts on this diagram · 4 diagrams in section
