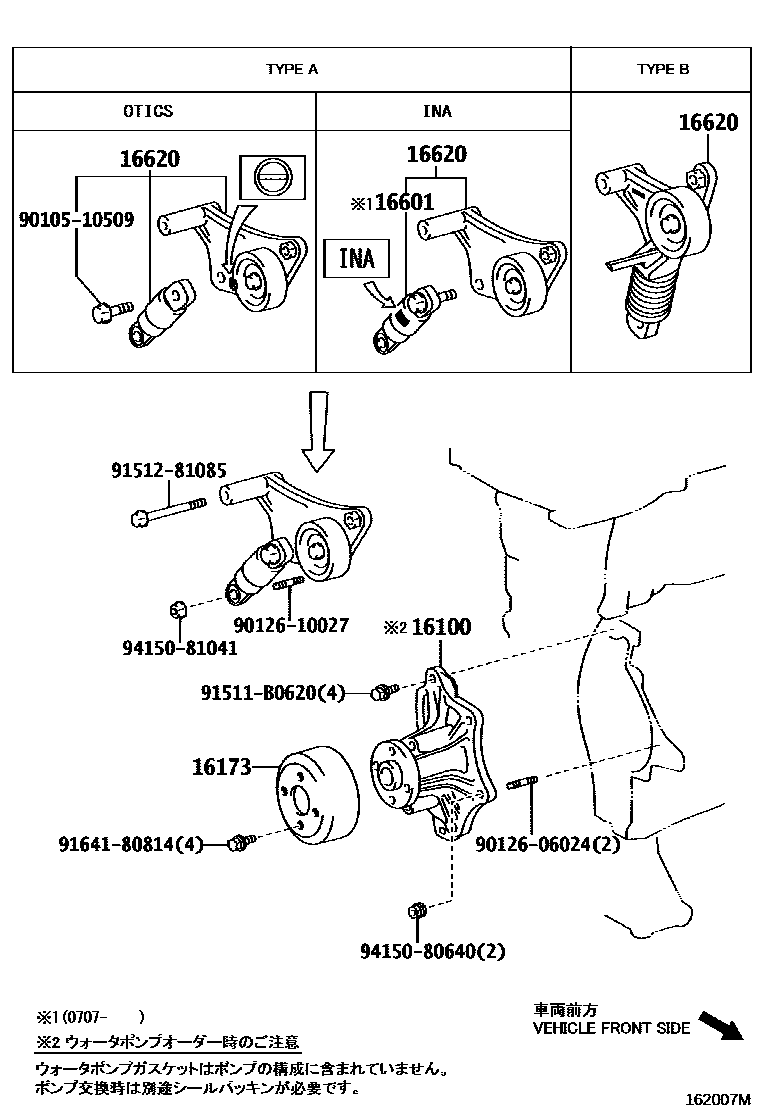

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-28040i1AZFSE..ANM1#200409-200701

sub16100-28041

main16100-28041i1AZFSE..ANM1#200701

main16100-29415i1ZZFE..ZNM10200409-200909

main16100-39466i2ZRFAE,3ZRFAE..ZGM1#200909-201206

main16100-39565i2ZRFAE,3ZRFAE..ZGM1#201206

16173PULLEY, WATER PUMP

main16173-28020i1AZFSE..ANM1#200409

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16601-28041i1AZFSE..ANM1#200707-200801

sub16601-28050

main16601-28050i1AZFSE..ANM1#200801-200909

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0H020i1AZFSE..ANM1#200409-200605

sub16620-0H021

main16620-0W093i1ZZFE..ZNM10200812-200909

main16620-0W110i1AZFSE..ANM1#200605-200608

sub16620-28070

main16620-22011i1ZZFE..ZNM10200409-200412

sub16620-22012

main16620-22012i1ZZFE..ZNM10200412-200609

sub16620-22013

main16620-22013i1ZZFE..ZNM10200609-200812

sub16620-0W093

main16620-28011i1AZFSE..ANM1#200409-200605

sub16620-0W110

main16620-28012i1AZFSE..ANM1#200703-200707

sub16620-28090

main16620-28070i1AZFSE..ANM1#200608-200703

sub16620-28012

main16620-28071i1AZFSE..ANM1#200707-200801

sub16620-28090

main16620-28090i1AZFSE..ANM1#200801-200909

main16620-37010i2ZRFAE,3ZRFAE..ZGM1#201206-201303

sub16620-37011

main16620-37011i2ZRFAE,3ZRFAE..ZGM1#201303-201506

sub16620-37030

main16620-37030i2ZRFAE,3ZRFAE..ZGM1#201507

9010510509

main90105-10509

9012606024

main90126-06024

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

12 parts on this diagram · 4 diagrams in section
