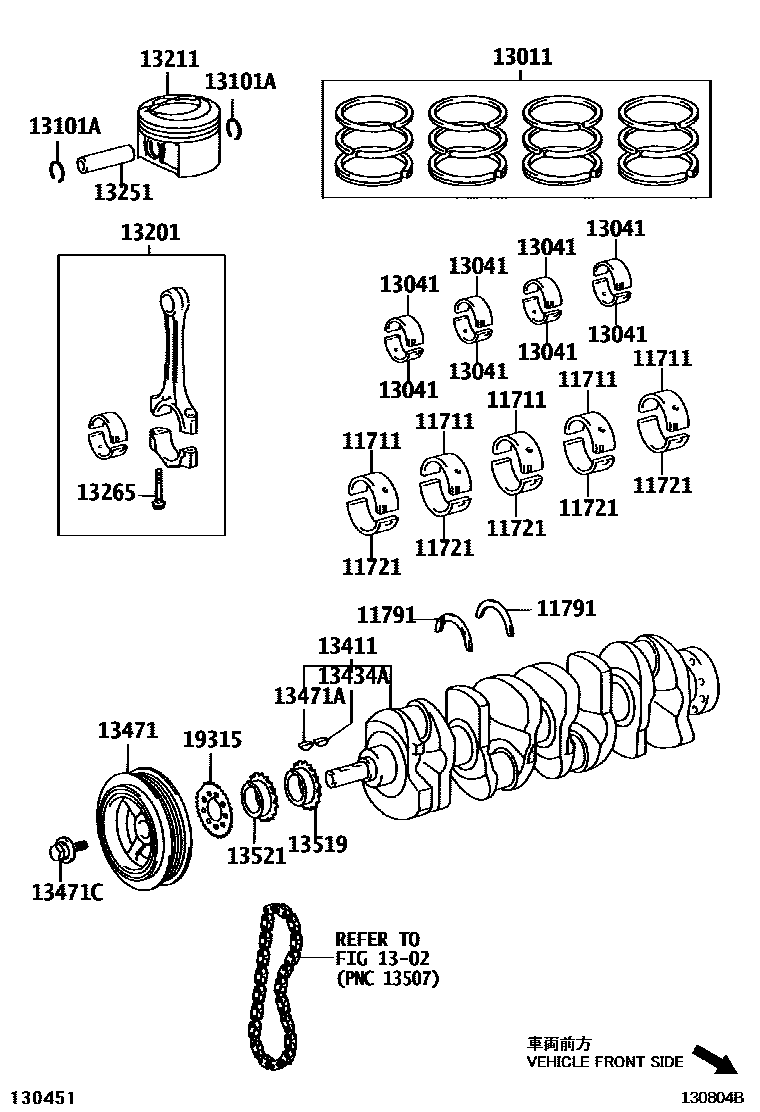

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
11721BEARING, CRANKSHAFT, NO.2
11791WASHER, CRANKSHAFT THRUST, UPPER
13011RING SET, PISTON
1302
13041BEARING, CONNECTING ROD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13211PISTON
13411CRANKSHAFT
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519GEAR, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
19315PLATE, CRANK ANGLE SENSOR, NO.1
20 parts on this diagram · 3 diagrams in section
