VENTILATION HOSE

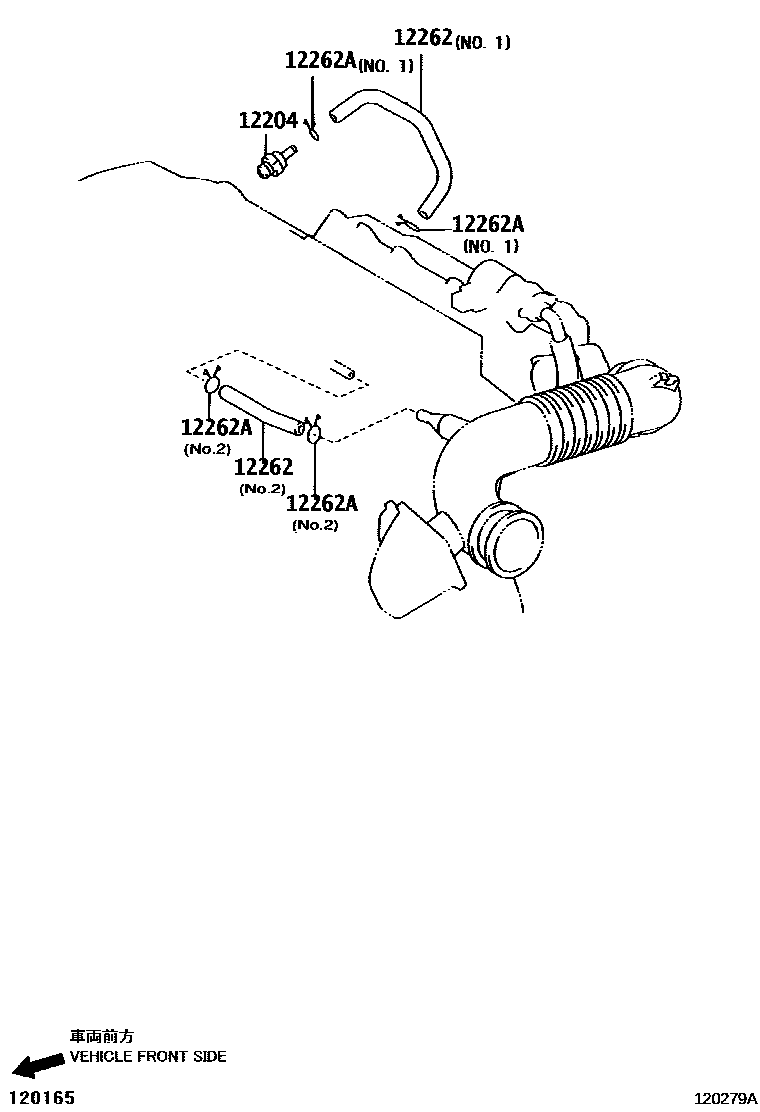

Parts diagram

12204VALVE SUB-ASSY, VENTILATION

main12204-22051i200409-200909

main12204-28020i200409

main12204-37010i200909

12262HOSE, VENTILATION, NO.2

main12262-0D050i200409-200909

main12262-22040i200409-200909

main12262-28030i200409

main12262-28040i200409

main12262-37020i201206

main12262-37030i200909-201206

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-18002i200409-200909

main90467-13103i200409-200909

main90467-19003×2i200409

main90467-21004i200909

3 parts on this diagram · 4 diagrams in section
