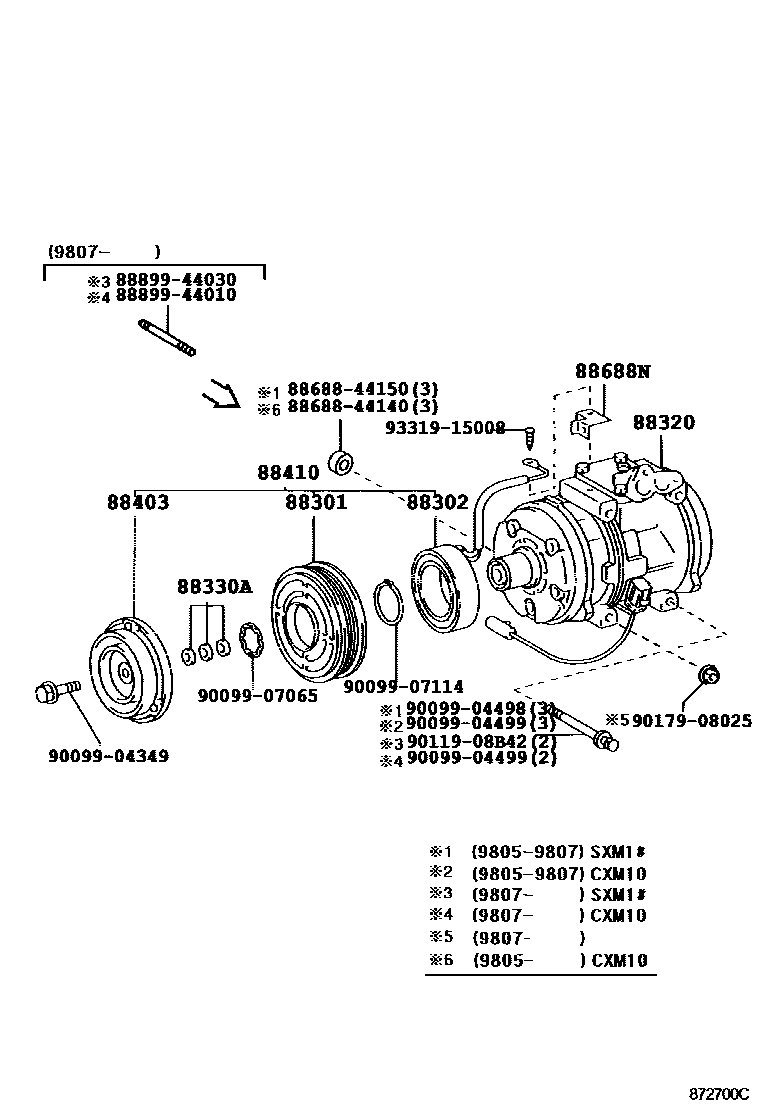

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-44050iCXM10,SXM1#199805-200104

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2A030iCXM10,SXM1#199805-200104

88320COMPRESSOR ASSY, COOLER

main88320-44130iACM1#200104

main88320-48040iCXM10,SXM1#199805-200104

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iACM1#,CXM10,SXM15199805-200104

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iCXM10,SXM1#199805-200104

88410CLUTCH ASSY, MAGNET

main88410-28200iACM1#200104

main88410-44050iCXM10,SXM1#199805-200104

88688NBRACKET, COOLER

main88688-32670iCXM10,SXM1#199805-200104

8868844140BRACKET, COOLER DIAPHRAGM

main88688-44140

8868844150BRACKET, COOLER DIAPHRAGM

main88688-44150

8889944010COVER, EVAPORATOR

main88899-44010

8889944030COVER, EVAPORATOR

main88899-44030

9009904349

main90099-04349

9009904498

main90099-04498

9009904499

main90099-04499

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

9017908025

main90179-08025

9331915008

main93319-15008

19 parts on this diagram · 4 diagrams in section
