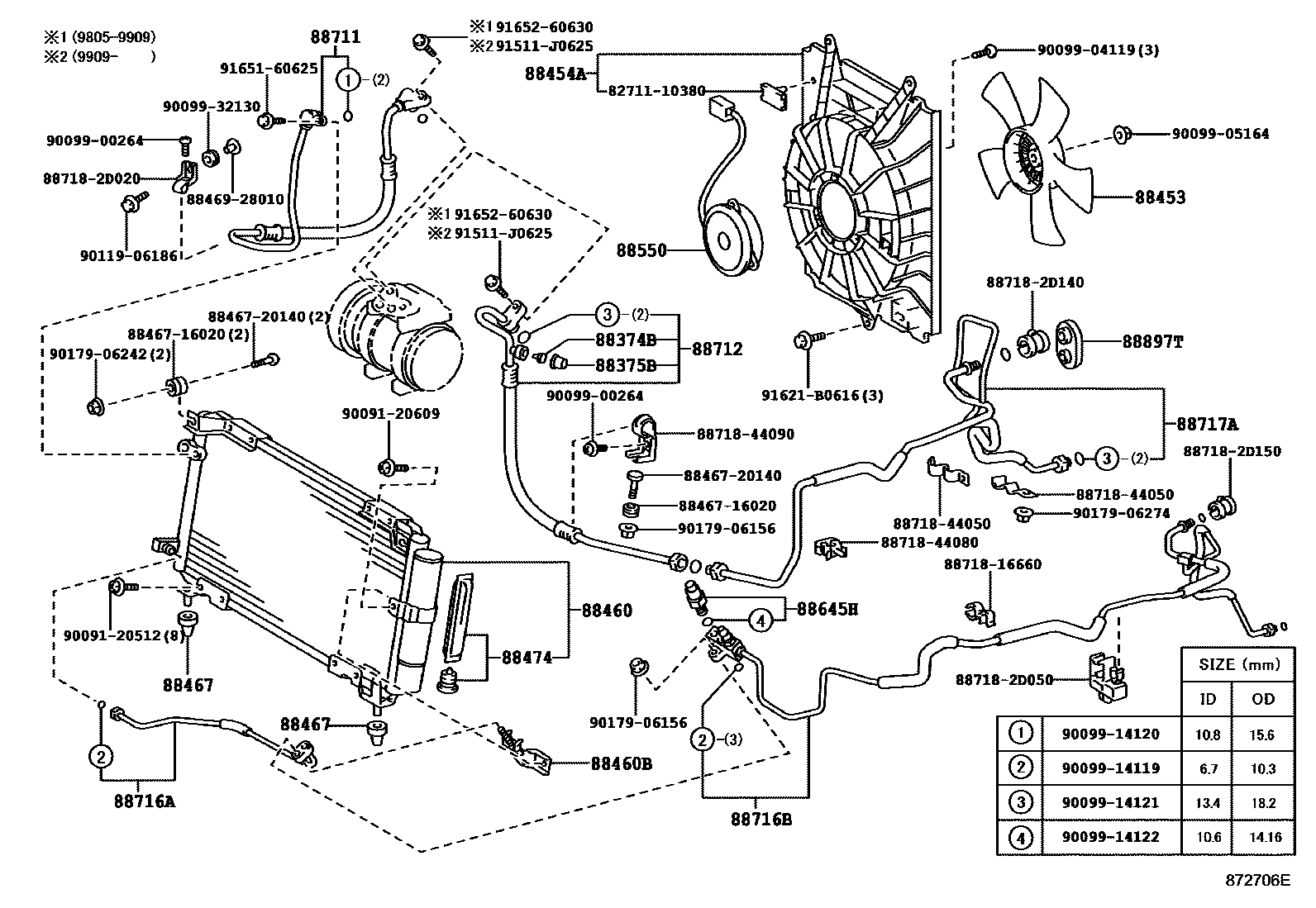

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1���� 0002 1���� 0003 1���� 0004 1���� 0005 1���� 0006 1�� 0007 1��

88374BVALVE, SERVICE, NO.1

main88374-30010iCXM10,SXM1#199805-200104

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iCXM10,SXM1#199805-200104

88453FAN, COOLING (FOR CONDENSER)

main16361-64100iCXM10199805-200104

main88453-20090iACM1#,SXM15199805-200104

88454ASHROUD, FAN

main16711-64470iCXM10199805-200104

main16711-74630iACM1#,SXM15199805-200104

88460CONDENSER ASSY, COOLER

main88460-44310iACM1#,SXM15199805-200104

sub88460-44320

main88460-44320iCXM10199805-200104

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-44110iCXM10,SXM1#199805-200104

88467CUSHION, COOLER CONDENSER, NO.1

main88467-20190iACM1#,CXM10,SXM15200106

main88467-32060iCXM10,SXM1#199805-200106

88474DRYER, COOLER

main88474-22010iCXM10,SXM1#199805-199909

sub88474-47010

main88474-47010iCXM10,SXM1#199909-200104

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-64180iCXM10199805-200306

sub16363-64210

main16363-64210iCXM10200306

main16363-74200iACM1#,SXM15199805-200104

88645HSWITCH, PRESSURE NO.1

main88645-36050iCXM10199805-200104

main88645-44010iSXM1#199805-200104

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-44150iCXM10,SXM1#199805-199909

main88711-44220iCXM10,SXM1#199909-200104

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-44150iSXM1#199805-199909

main88712-44160iCXM10199805-199909

main88712-44290iSXM1#199909-200104

sub88704-44200

main88712-44320iCXM10199909-200104

sub88704-44220

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-44210iCXM10,SXM1#199805-200104

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-44230iSXM1#199805-200104

main88716-44240iCXM10199805-200104

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-44090iSXM1#199805-200104

sub88710-44240

main88717-44100iCXM10199805-200104

sub88710-44250

88897TGROMMET, COOLER

main88897-44010iCXM10,SXM1#199805-200104

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

8846716020CUSHION, COOLER CONDENSER, NO.1

main88467-16020

8846720140CUSHION, COOLER CONDENSER, NO.1

main88467-20140

8846928010SWITCH, PRESSURE CONTROL

main88469-28010

8871816660PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16660

887182D020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D020

887182D050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D050

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871844050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-44050

8871844080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-44080

8871844090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-44090

9009120512

main90091-20512

9009120609

main90091-20609

9009900264

main90099-00264

9009904119

main90099-04119

9009905164

main90099-05164

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9009932130

main90099-32130

9011906186

main90119-06186

9017906156

main90179-06156

9017906242

main90179-06242

9017906274

main90179-06274

91511J0625

main91511-J0625

91621B0616

main91621-B0616

9165160625

main91651-60625

9165260630

main91652-60630

46 parts on this diagram · 7 diagrams in section
