HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1������ 0002 1������,��(���������) 0003 1����-� 0004 1����-�,��(������ & ������-) 0005 1���� ���� 0006 1�� ���� 0007 1����

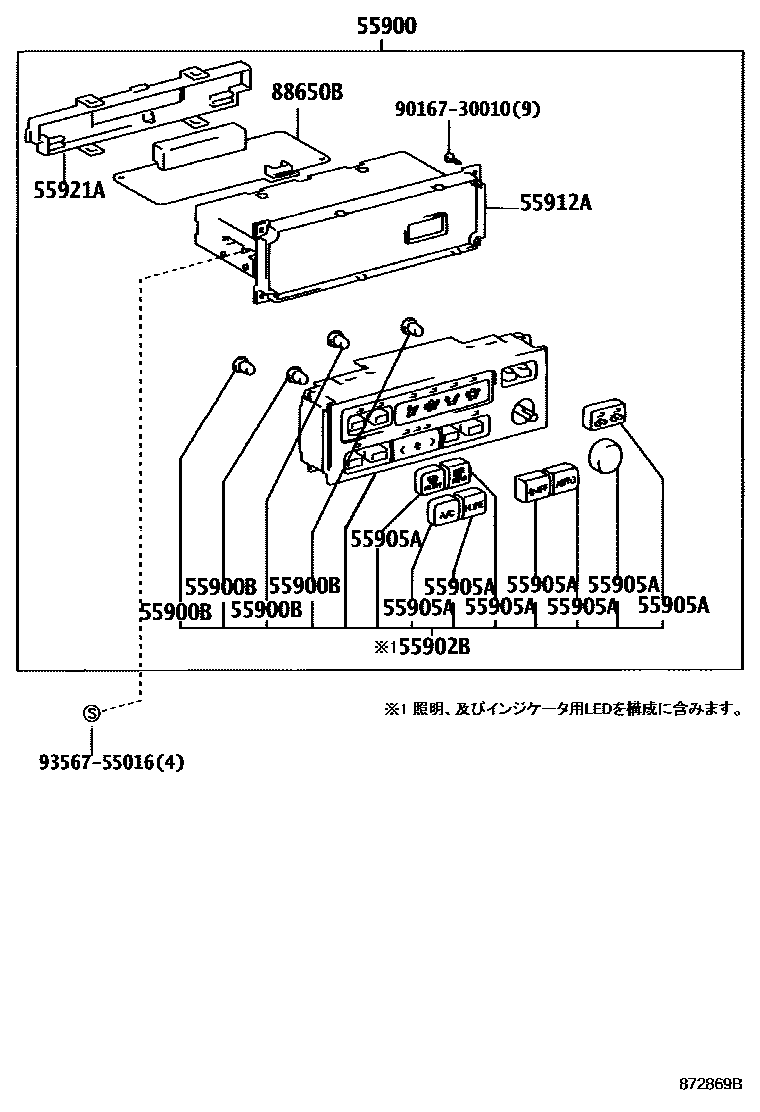

55900CONTROL ASSY, AIR CONDITIONER

main55900-44070iSXM1#199805-200104

main55900-44080iCXM10199805-200104

55900BBULB, AIR CONDITIONER CONTROL

main90010-05101iCXM10,SXM1#199805-200104

main90010-05106iACM1#,CXM10,SXM15200104

main90010-05134iACM1#,CXM10,SXM15200104

55902BCONTROL SUB-ASSY, HEATER

main55902-22110iCXM10,SXM1#199805-200104

main55902-44080iACM1#,CXM10,SXM15200104

main55902-44090iACM1#,CXM10,SXM15200104

main55902-44100iACM1#,SXM15200104

main55902-44110iACM1#,SXM15200104

main55902-44160iACM1#200208-200405

main55902-44180iACM1#..07S200212-200309

main55902-44230iACM1#..07S200310-200409

55905AKNOB, HEATER CONTROL

main55905-22430iCXM10,SXM1#199805-200104

sub55905-60170

main55905-44040iACM1#,CXM10,SXM15200104

main55905-44050iACM1#,CXM10,SXM15200104

main55905-44250iACM1#200208-200405

main55905-60180iCXM10,SXM1#199805-200104

main55905-60190iCXM10,SXM1#199805-200104

main55905-60200iCXM10,SXM1#199805-200104

main55905-60210iCXM10,SXM1#199805-200104

main55905-60220iCXM10,SXM1#199805-200104

main55905-60230iCXM10,SXM1#199805-200104

main55905-60240iCXM10,SXM1#199805-200104

55912AHOUSING, HEATER CONTROL

main55912-22020iCXM10,SXM1#199805-200104

main55912-44020iACM1#,CXM10,SXM15200104

main55912-44030iACM1#,CXM10,SXM15200104

sub55912-44020

55921ARETAINER, HEATER CONTROL

main55921-22070iCXM10,SXM1#199805-200104

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-44090iSXM1#199805-200104

main88650-44100iCXM10199805-200104

main88650-44260iACM10,SXM15200104-200208

main88650-44261iACM1#200208

main88650-44270iCXM10200104-200208

main88650-44271iACM1#,CXM10200208

9016730010

main90167-30010

9356755016

main93567-55016

9 parts on this diagram · 7 diagrams in section
