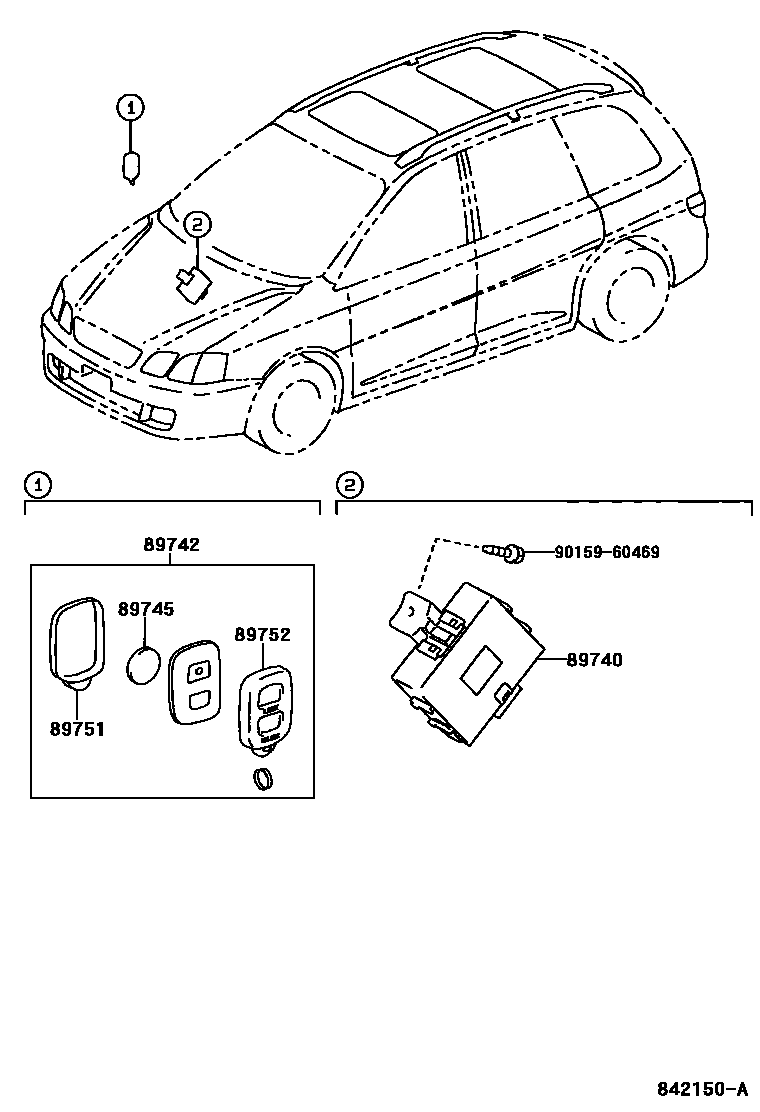

WIRELESS DOOR LOCK

0001 1 0002 1

89740COMPUTER ASSY, DOOR CONTROL W/RECEIVER

main89740-44011iCXM10,SXM1#199805-200104

89742TRANSMITTER, DOOR CONTROL

main89742-44010iCXM10,SXM1#199805-200104

main89742-44010iSXM1#200010-200104

89745BATTERY, TRANSMITTER

main89745-26010iACM1#,CXM10,SXM15200104

sub89745-41010

main89745-50010iCXM10,SXM1#199805-200104

sub89745-71010

89751COVER, TRANSMITTER HOUSING

main89751-44010iACM1#,CXM10,SXM15200104

main89751-44050iCXM10,SXM1#199805-200104

89752CASE, TRANSMITTER HOUSING

main89752-44020iCXM10,SXM1#199805-200104

9015960469

main90159-60469

6 parts on this diagram · 2 diagrams in section
