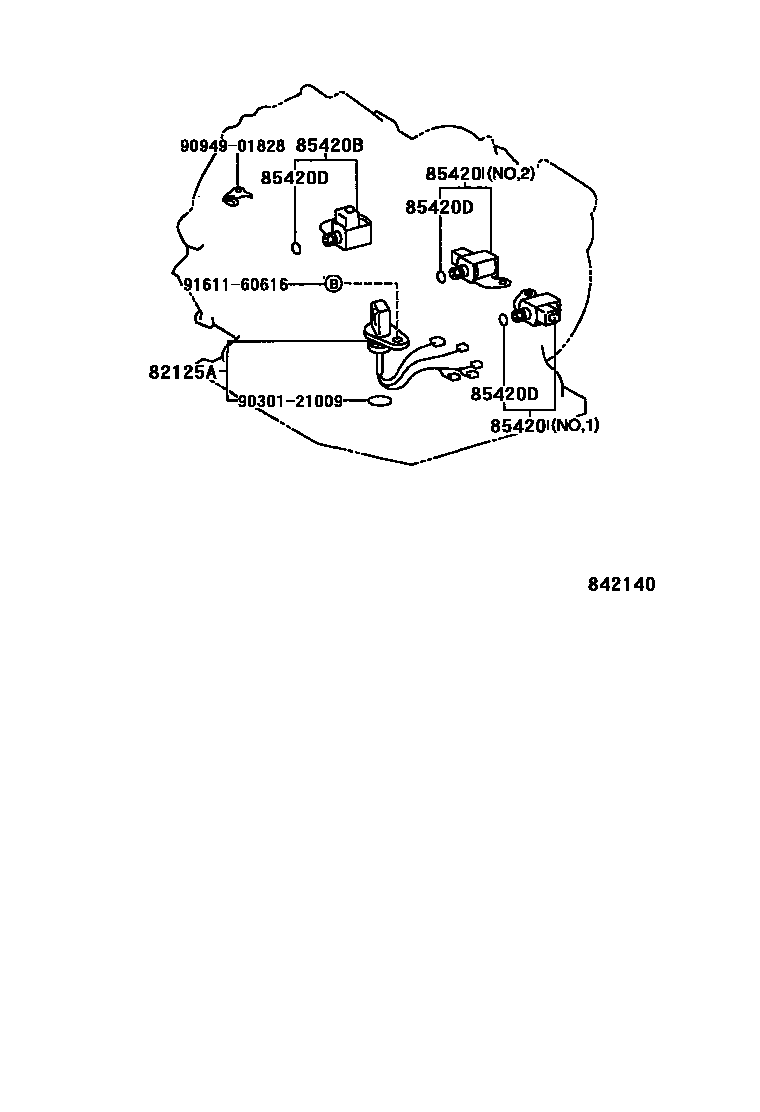

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

82125AWIRE, TRANSMISSION

main82125-12350iSXM10199805-200104

main82125-20220iSXM15199805-200409

main82125-44010iACM1#200104-200409

85420SOLENOID ASSY, TRANSMISSION

main85420-12100iSXM10199805-199809

sub85420-21010

main85420-12120iSXM10199805-199809

sub85420-21030

main85420-21010iSXM10199809-200104

main85420-21020iSXM10199809-200104

sub85420-21010

main85420-21030iSXM10199809-200104

sub85420-21040

main85420-21040iSXM10199809-200104

main85420-21090iCXM10,SXM15199805-200409

main85420-21100iSXM15199805-200409

main85420-30200iCXM10199805-199809

sub85420-21090

85420BSOLENOID ASSY, TRANSMISSION

main85420-12140iSXM10199805-199809

sub85420-21050

main85420-20140iCXM10199805-199809

sub85420-21070

main85420-21050iSXM10199809-200104

sub85420-21060

main85420-21060iSXM10199809-200104

main85420-21070iCXM10,SXM15199810-200409

main85420-21070iSXM15199805-199810

main85420-21080iCXM10,SXM15199805-199810

sub85420-21070

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iCXM10,SXM1#199805-200409

9030121009

main90301-21009

9094901828

main90949-01828

9161160616

main91611-60616

7 parts on this diagram · 3 diagrams in section
