SIDE MOULDING

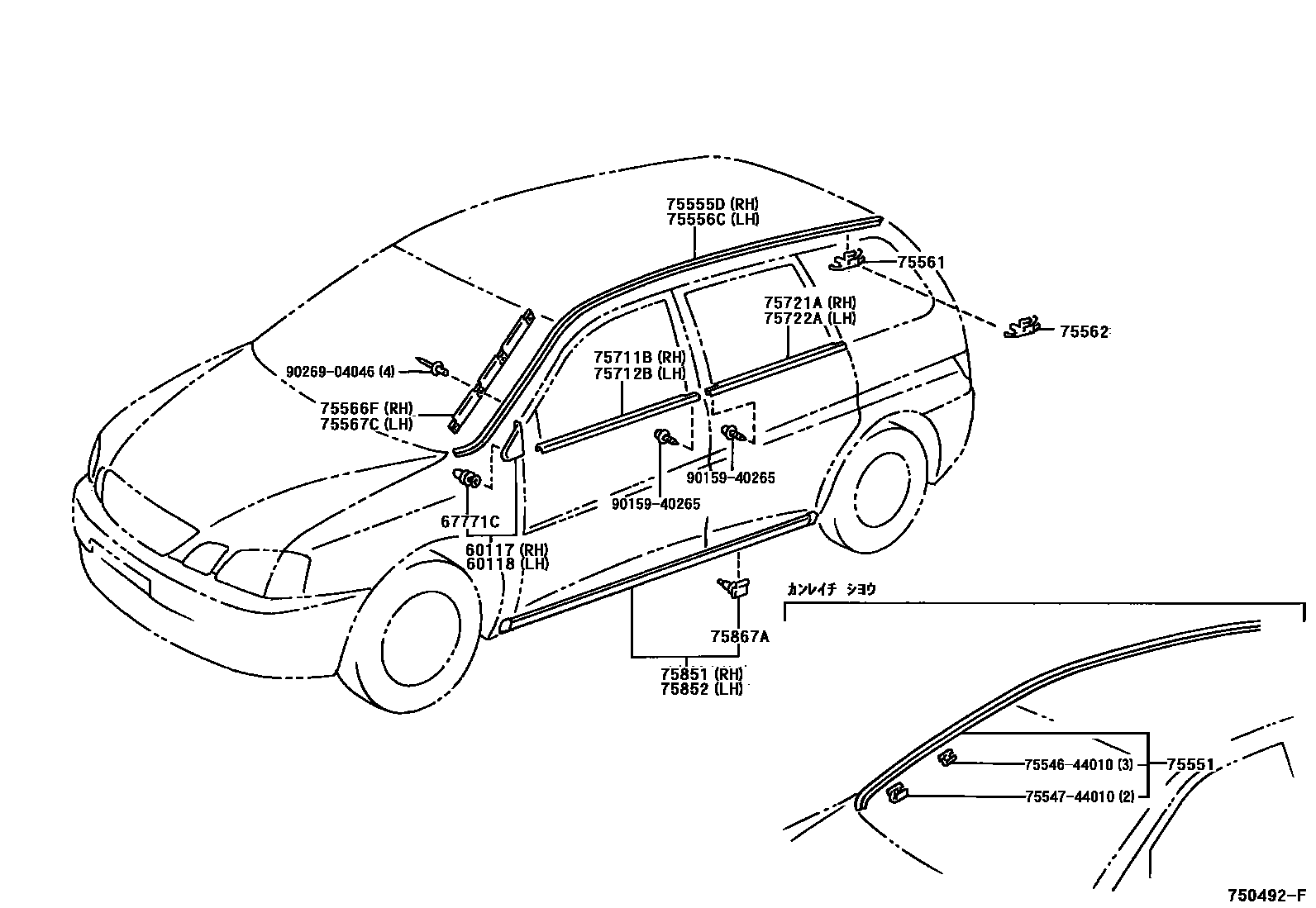

Parts diagram
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
main60117-44020-A0i199805-200104
WHITE PM.,057
sub60117-44020
main60117-44020-A1i200104-200409
WHITE PM.,042
sub60117-44020
main60117-44020-A1i200010-200104
sub60117-44020
main60117-44020-A1i199910-200004
sub60117-44020
main60117-44020-B0i199805-200104
SILVER GR.SF.,1B9
sub60117-44020
main60117-44020-B1i200004-200104
SILVER ME.,199
sub60117-44020
main60117-44020-B2i200104-200409
SILVER ME.,1C0
sub60117-44020
main60117-44020-C0i199805-200409
BLACK,202
sub60117-44020
main60117-44020-D0i199805-200409
RED MC.,3M8
sub60117-44020
main60117-44020-D1i200104-200409
LT.ROSE M.M.,3Q1
sub60117-44020
main60117-44020-F0i200010-200104
sub60117-44020
main60117-44020-F0i200104-200409
CHAMPAGNE ME.,583
sub60117-44020
main60117-44020-G0i199805-200409
DK GREEN MICA,6M1
sub60117-44020
main60117-44020-G1i200309-200409
sub60117-44020
main60117-44020-H0i199805-200104
DK.TURQUOISE MC.,760
sub60117-44020
main60117-44020-J0i199810-199903
sub60117-44020
main60117-44020-J0i199904-200009
sub60117-44020
main60117-44020-J2i200208-200405
sub60117-44020
main60117-44020-J3i200212-200309
sub60117-44020
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
main60118-44020-A0i199805-200104
WHITE PM.,057
sub60118-44020
main60118-44020-A1i200104-200409
WHITE PM.,042
sub60118-44020
main60118-44020-A1i200010-200104
sub60118-44020
main60118-44020-A1i199910-200004
sub60118-44020
main60118-44020-B0i199805-200104
SILVER GR.SF.,1B9
sub60118-44020
main60118-44020-B1i200004-200104
SILVER ME.,199
sub60118-44020
main60118-44020-B2i200104-200409
SILVER ME.,1C0
sub60118-44020
main60118-44020-C0i199805-200409
BLACK,202
sub60118-44020
main60118-44020-D0i199805-200409
RED MC.,3M8
sub60118-44020
main60118-44020-D1i200104-200409
LT.ROSE M.M.,3Q1
sub60118-44020
main60118-44020-F0i200010-200104
sub60118-44020
main60118-44020-F0i200104-200409
CHAMPAGNE ME.,583
sub60118-44020
main60118-44020-G0i199805-200409
DK GREEN MICA,6M1
sub60118-44020
main60118-44020-G1i200309-200409
sub60118-44020
main60118-44020-H0i199805-200104
DK.TURQUOISE MC.,760
sub60118-44020
main60118-44020-J0i199810-199903
sub60118-44020
main60118-44020-J0i199904-200009
sub60118-44020
main60118-44020-J1i200208-200405
sub60118-44020
main60118-44020-J2i200212-200309
sub60118-44020
67771CRETAINER, FRONT PILLAR COVER
main67771-30070i199805-200104
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75505-44010i199805-200104
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
main75555-44020i199805-200104
sub75505-44010
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
main75556-44020i199805-200104
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
main75561-44020i199805-200104
75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
main75561-44020i199805-200104
75566FRETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.4 RH
main75566-44010i199805-200104
75567CRETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.4 LH
main75567-44010i199805-200104
75711BMOULDING, FRONT DOOR BELT, RH
main75711-44020i199805-200104
75712BMOULDING, FRONT DOOR BELT, LH
main75712-44020i199805-200104
75721AMOULDING, REAR DOOR BELT, RH
main75721-44020i199805-200104
75722AMOULDING, REAR DOOR BELT, LH
main75722-44020i199805-200104
75851MOULDING, ROCKER PANEL, RH
main75850-44010i199805-200104
75852MOULDING, ROCKER PANEL, LH
main75860-44010i199805-200104
75867ACLIP, ROCKER PANEL MOULDING
main75867-44010i199805-200104
7554644010CLIP, WINDSHIELD OUTSIDE MOULDING
main75546-44010
7554744010MOULDING, FRONT FENDER, RH
main75547-44010
9015940265
main90159-40265
9026904046
main90269-04046

21 parts on this diagram · 1 diagram in section
