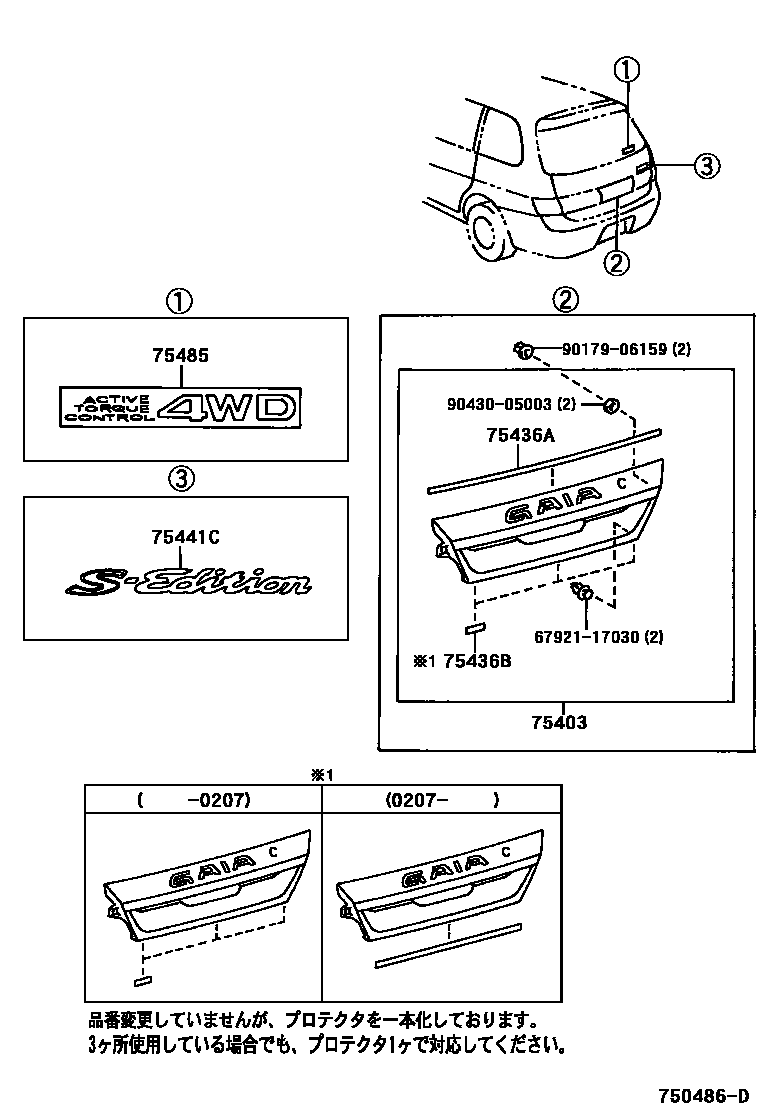

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75403ORNAMENT SUB-ASSY, BACK DOOR

main75403-44040iCXM10,SXM1#199805-200104

main75403-44050iCXM10,SXM1#199805-200104

main75403-44110-A0iCXM10,SXM1#199812-199906

sub75403-44040

main75403-44110-B0iCXM10,SXM1#199812-199906

sub75403-44040

main75403-44110-C0iCXM10,SXM1#199812-199906

sub75403-44040

main75403-44120-A0iCXM10,SXM1#199812-199906

sub75403-44050

main75403-44120-B0iCXM10,SXM1#199812-199906

sub75403-44050

main75403-44120-C0iCXM10,SXM1#199812-199906

sub75403-44050

main75403-44160iACM1#,CXM10,SXM15200104

main75403-44170iACM1#,CXM10,SXM15200104

main75403-44190-A0iACM10,CXM10,SXM15200104

main75403-44190-B0iACM10,CXM10,SXM15200104

main75403-44190-C0iACM10,CXM10,SXM15200104

main75403-44200-A0iACM10,CXM10,SXM15200104

main75403-44200-B0iACM10,CXM10,SXM15200104

main75403-44200-C0iACM10,CXM10,SXM15200104

main75403-44210-A0iACM1#200208-200405

sub75403-44160

main75403-44210-B0iACM1#200208-200405

sub75403-44160

main75403-44210-J0iACM1#200208-200405

sub75403-44160

main75403-44220-A0iACM1#200208-200405

sub75403-44170

main75403-44220-B0iACM1#200208-200405

sub75403-44170

main75403-44220-J0iACM1#200208-200405

sub75403-44170

75436APROTECTOR, BACK DOOR ORNAMENT

main75436-44030iCXM10,SXM1#199805-200104

main75436-44100iACM1#,CXM10,SXM15200104

75436BPROTECTOR, BACK DOOR ORNAMENT

main75436-44040iCXM10,SXM1#199805-200104

main75436-44110iACM10,CXM10,SXM15200104-200207

75441CPLATE, BACK DOOR NAME

main67891-44030iACM1#200208-200405

75485PLATE, BACK WINDOW NAME

main75485-44010iSXM15199805-200104

6792117030RETAINER, FRONT DOOR SCUFF PLATE

main67921-17030

9017906159

main90179-06159

9043005003

main90430-05003

8 parts on this diagram · 1 diagram in section
