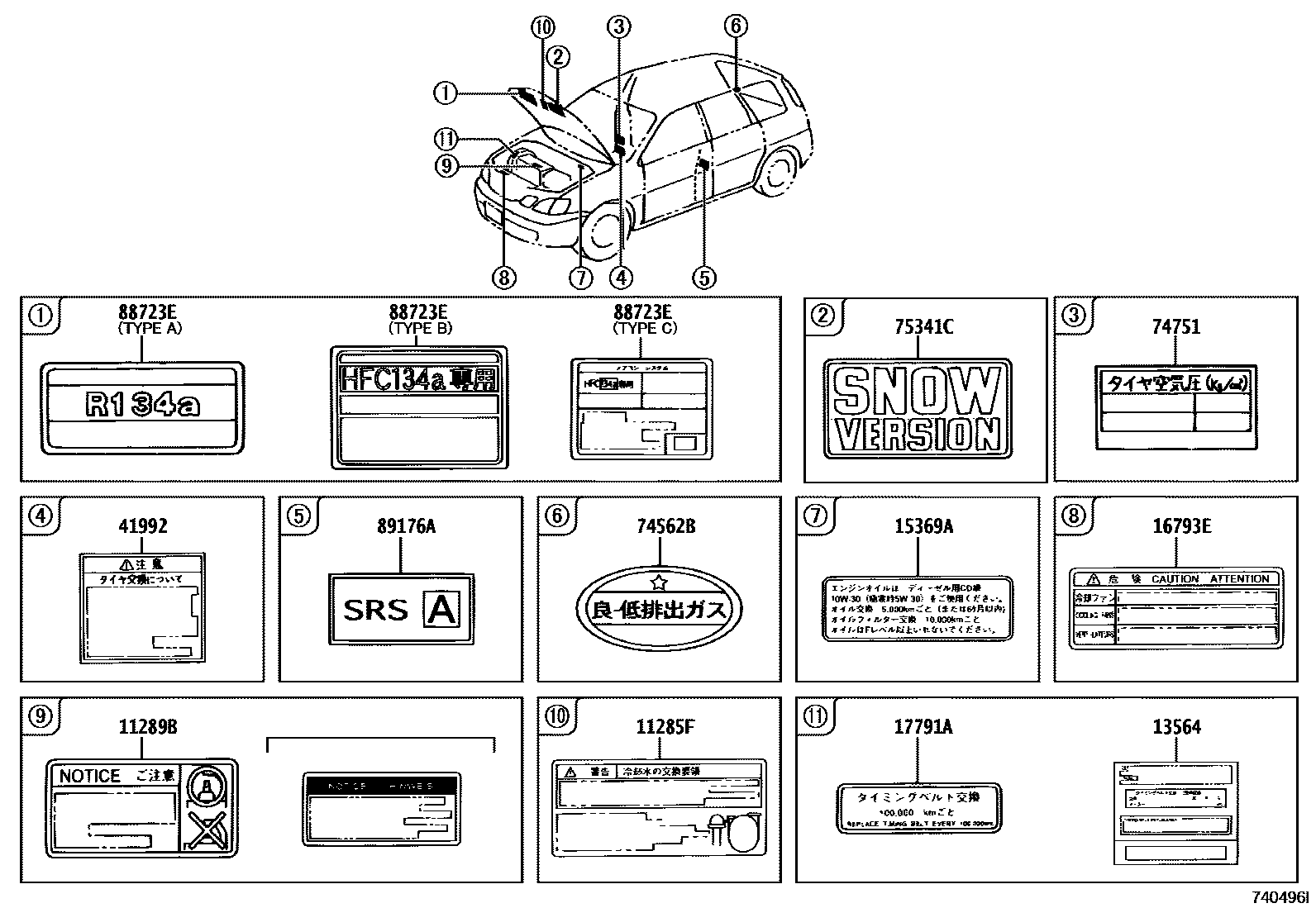

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

11285FLABEL, COOLANT SYSTEM CAUTION

main11285-64010i3CTE..CXM10200104-200409

11289BLABEL, SPARK PLUG NOTICE

main11289-28010i1AZFSE..ACM1#200104-200409

13564LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010i3CTE,3SFE..CXM10,SXM15199805-200104

15369ALABEL, ENGINE OIL INFORMATION

main15369-64010i3CTE..CXM10200104-200409

16793ELABEL, COOLING FAN CAUTION

main16793-46010i3CTE..CXM10200104-200409

main88723-20081iACM1#,SXM15200104-200409

sub16793-31070

17791ALABEL, MAINTENANCE INFORMATION

main17791-55010i3CTE..CXM10200104-200409

41992LABEL, DIFFERENTIAL NOTICE

main41992-33010iACM15,SXM15199805-200104

74562BLABEL, EMISSION INFORMATION

main74562-40040iACM1#200104

74751LABEL, TIRE PRESSURE INFORMATION

main42661-44041iSXM15200005-200104

main42661-44050iSXM10199805-200005

main42661-44051iSXM10200005-200104

main42661-44060iSXM15199805-200005

main42661-44071iACM1#,SXM15200104

main42661-44080iCXM10199805-200005

main42661-44081iCXM10200005-200104

main42661-44140iCXM10200104

75341CPLATE, HOOD NAME

main75341-20060iCXM10,SXM1#199805-200104

88723ELABEL, COOLER SERVICE CAUTION

main88723-20030iCXM10,SXM1#199805-200104

sub88733-30040

main88723-42050iACM10,CXM10,SXM15200104-200202

sub88733-51010

main88733-30050iACM1#,CXM10,SXM15200202-200409

sub88733-37050

89176ALABEL, AIRBAG DEPLOYMENT INFORMATION

main89176-32010iCXM10,SXM1#199808-200104

12 parts on this diagram · 2 diagrams in section
