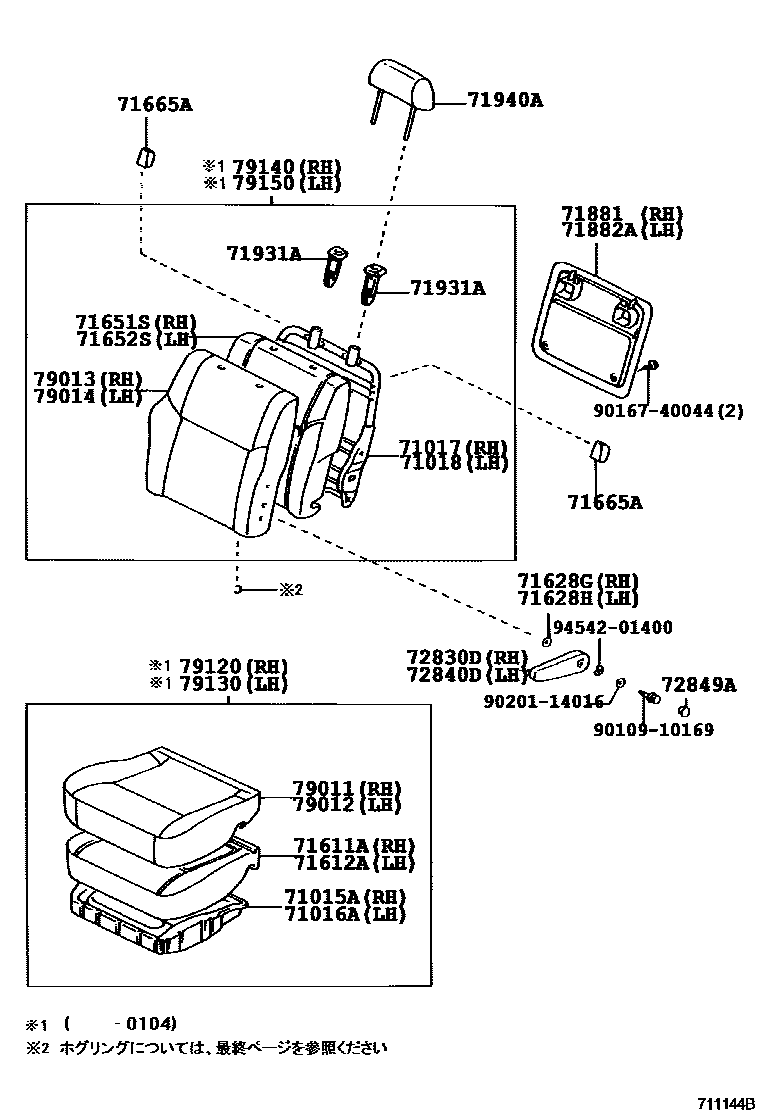

REAR SEAT & SEAT TRACK

0001 1�� NO.1 �-� 0002 1�� NO.1 �-� 0003 1�� NO.1 �-� 0004 1�� NO.1 �-� 0005 1�� NO.1 �-� 0006 1�� NO.1 �-� 0007 1�� NO.2 �-� 0008 1�� NO.2 �-� 0009 1 0010 1 0011 1�������

71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH

main71015-44010iACM1#,CXM10,SXM15..06S199805-200104

main71015-44030iACM1#,CXM10..07S200208

71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH

main71016-44010iCXM10,SXM1#..06S199805-200104

main71016-44020iACM1#,CXM10..07S200208

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-44010iCXM10,SXM1#..06S199805-200104

main71017-44040iACM1#,CXM10..07S200208

main79103-44010iACM10,CXM10,SXM15..07S199805-200208

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71017-44010iACM1#,CXM10,SXM15..06S199805-200104

main71017-44040iACM1#,CXM10..07S200208

main79104-44010iACM10,CXM10,SXM15..07S199805-200208

71611PAD, REAR SEAT CUSHION

main79135-44010iCXM10,SXM1#..07S199805-200104

sub79135-44090

main79135-44090iACM10,CXM10,SXM15..07S200104-200208

71611APAD, REAR SEAT CUSHION, RH

main79135-44020iCXM10,SXM1#..06S199805-200104

sub79135-44100

main79135-44100iACM1#,CXM10,SXM15..06S200104

main79135-44110iACM1#,CXM10..07S200208

71612APAD, REAR SEAT CUSHION, LH

main79135-44020iCXM10,SXM1#..06S199805-200104

sub79135-44100

main79135-44100iACM1#,CXM10,SXM15..06S200104

main79136-44040iACM1#,CXM10..07S200208

71628GSPACER, REAR SEAT CUSHION, RH

main71628-44030iACM10,CXM10,SXM15..06S199805-200208

71628HSPACER, REAR SEAT CUSHION, LH

main71628-44030iACM10,CXM10,SXM15..06S199805-200208

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main79175-44010iACM10,CXM10,SXM15..07S199805-200208

main79175-44030iACM1#,CXM10,SXM15..06S199805-200104

main79175-44120iACM1#,CXM10..07S200208

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main79185-44010iCXM10,SXM1#..07S199805-200208

main79185-44020iCXM10,SXM1#..06S199805-200104

main79185-44080iACM1#,CXM10..07S200208

71665APAD, REAR SEATBACK, SIDE A

main71665-44010iACM10,CXM10,SXM15..07S199805-200208

main71665-44020iACM10,CXM10,SXM15..06S199805-200208

71881BOARD, REAR SEATBACK, RH

main71881-44010-A0iCXM10,SXM1#..07S199805-200208

IVORY,TRIM0#

sub71881-44010

main71881-44010-B0iSXM1#..07S200004-200104

MD.MOON MIST,TRIM1#

sub71881-44010

main71881-44010-B1iACM10,SXM15..07S200104-200208

DK.GRAY,TRIM1#

sub71881-44010

main71881-44020-A0iCXM10,SXM1#..06S199805-200409

IVORY,TRIM0#

main71881-44020-B0iSXM1#..06S200004-200104

MD.MOON MIST,TRIM1#

main71881-44020-B1iACM10..06S200104-200409

DK.GRAY,TRIM1#

71882ABOARD, REAR SEATBACK, LH

main71881-44010-A0iACM10,CXM10,SXM15..07S199805-200208

IVORY,TRIM0#

sub71881-44010

main71881-44010-B0iSXM1#..07S200004-200104

MD.MOON MIST,TRIM1#

sub71881-44010

main71881-44010-B1iACM10,SXM15..07S200104-200208

DK.GRAY,TRIM1#

sub71881-44010

main71881-44020-A0iCXM10,SXM1#..06S199805-200208

IVORY,TRIM0#

main71881-44020-B0iSXM1#..06S200004-200104

MD.MOON MIST,TRIM1#

main71881-44020-B1iACM10,SXM15..06S200104-200208

DK.GRAY,TRIM1#

71931ASUPPORT, REAR SEAT HEADREST

main71930-44010-A1iACM15200208-200409

sub71930-44010

main71930-44010-A1iSXM1#199810-199903

sub71930-44010

main71930-44010-A1iSXM1#199910-200004

sub71930-44010

main71930-44010-A1iSXM1#199904-200009

sub71930-44010

main71930-44010-A1iSXM1#199805-200208

sub71930-44010

main71930-44010-A1iSXM1#200010-200104

sub71930-44010

main71930-44010-A1iSXM15200104-200409

sub71930-44010

main71930-44010-B0iSXM1#200004-200104

sub71930-44010

main71930-44010-E5iCXM10,SXM1#199805-200104

sub71930-44010

main71930-44010-P4iSXM15200104-200409

sub71930-44010

main71930-44010-P4iACM1#200208-200409

sub71930-44010

main71931-28030-A1iACM15200208-200409

sub71931-28030

main71931-28030-A1iSXM1#199805-200208

sub71931-28030

main71931-28030-A1iSXM1#199904-200009

sub71931-28030

main71931-28030-A1iSXM1#199810-199903

sub71931-28030

main71931-28030-A1iSXM1#199910-200004

sub71931-28030

main71931-28030-A1iSXM15200104-200409

sub71931-28030

main71931-28030-A1iSXM1#200010-200104

sub71931-28030

main71931-28030-B5iSXM1#200004-200104

sub71931-28030

main71931-28030-E7iCXM10,SXM1#199805-200104

sub71931-28030

main71931-28030-P1iSXM15200104-200409

sub71931-28030

main71931-28030-P1iACM1#200208-200409

sub71931-28030

71940AHEADREST ASSY, REAR SEAT

main71910-44050-A0iCXM10,SXM1#199805-200104

main71910-44060-A0iCXM10,SXM1#199805-200104

main71910-44130-A1iSXM15199805-200208

main71910-44150-A1iSXM1#199910-200004

main71910-44150-A1iSXM1#199810-199903

main71910-44150-A1iSXM1#199904-200009

main71910-44150-B0iSXM1#200004-200104

main71910-44250-A0iSXM1#200010-200104

main71910-44320-A0iACM1#,CXM10200104-200409

main71910-44320-A0iACM1#,CXM10200208-200409

main71910-44330-A0iACM15200208-200409

main71910-44330-A0iSXM15200104-200409

main71910-44340-B0iACM15200104-200409

DARK GRAY,TRIM1#

main71910-44370-A0iACM10,SXM15200109-200207

main71910-44390-B1iACM1#200208-200405

main71910-44440-A0iACM1#..07S200310-200409

72830DARMREST ASSY, REAR SEAT, RH

main72830-44010-A0iCXM10,SXM1#..06S199805-200104

sub72830-44010

main72830-44050-A1iSXM1#..06S199805-200208

main72830-44060-A1iSXM1#..06S199910-200004

main72830-44060-A1iSXM1#..06S199810-199903

main72830-44060-A1iSXM1#..06S199904-200009

main72830-44060-B1iSXM1#..06S200004-200104

main72830-44060-B2iACM1#..06S200104-200409

main72830-44170-A0iSXM1#..06S200010-200104

main72830-44170-A0iACM10,SXM15..06S200109-200207

main72830-44220-A0iACM1#,CXM10..06S200104-200409

main72830-44230-A0iACM1#,CXM10..06S200104-200409

main72830-44270-A0iACM1#,CXM10..07S200208-200409

main72830-44280-A0iACM1#,CXM10..07S200208-200409

main72830-44290-B0iACM1#..07S200208-200409

main72830-44300-B1iACM1#..07S200208-200405

main72830-44370-A0iACM1#..07S200310-200409

72840DARMREST ASSY, REAR SEAT, LH

main72840-44010-A0iCXM10,SXM1#..06S199805-200104

sub72840-44010

main72840-44030-A1iSXM15..06S199805-200208

main72840-44040-A1iSXM1#..06S199904-200009

main72840-44040-A1iSXM1#..06S199810-199903

main72840-44040-A1iSXM1#..06S199910-200004

main72840-44040-B1iSXM1#..06S200004-200104

main72840-44040-B2iSXM15..06S200104-200409

main72840-44090-A0iSXM1#..06S200010-200104

main72840-44090-A0iACM10,SXM15..06S200109-200207

main72840-44100-A0iSXM15..06S200104-200409

main72840-44110-A0iSXM15..06S200104-200409

main72840-44140-A0iACM1#,CXM10..07S200208-200409

main72840-44150-A0iACM1#,CXM10..07S200208-200409

main72840-44160-B0iACM1#..07S200208-200409

main72840-44170-B1iACM1#..07S200208-200405

main72840-44210-A0iACM1#..07S200310-200409

72849ACAP, SEAT ARMREST, NO.2

main72849-44010-A0iACM1#,CXM10..06S199805-200409

IVORY,TRIM0#

main72849-44010-B0iSXM1#..06S200004-200104

MD.MOON MIST,TRIM1#

main72849-44010-B2iACM10,SXM15..06S200104-200409

DK.GRAY,TRIM1#

79011COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

main79011-44070-B0iCXM10,SXM1#..06S199805-200104

main79011-44090-B0iCXM10,SXM1#..06S199805-200104

main79011-44170-E0iSXM15..06S199805-200208

main79011-44200-A0iSXM1#..06S199910-200004

main79011-44200-A0iSXM1#..06S199810-199903

main79011-44200-A0iSXM1#..06S199904-200009

main79011-44200-B0iSXM1#..06S200004-200104

main79011-44400-A0iSXM1#..06S200010-200104

main79011-44460-A0iACM10,CXM10..06S200104-200409

main79011-44480-A0iACM10,CXM10..06S200104-200409

main79011-44500-B0iACM10..06S200104-200409

main79011-44500-B0iACM15..06S200208-200409

DARK GRAY,TRIM1#

main79011-44540-A0iACM10,SXM15..06S200109-200207

main79011-44550-A0iACM1#,CXM10..07S200208-200409

main79011-44560-A0iACM1#,CXM10..07S200208-200409

main79011-44570-B0iACM1#..07S200208-200409

main79011-44590-B0iACM1#..07S200208-200405

main79011-44600-B0iACM1#..06S200208-200405

main79011-44680-A0iACM1#..07S200310-200409

sub79011-44850

79012COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

main79011-44070-B0iCXM10,SXM1#..06S199805-200104

main79011-44090-B0iCXM10,SXM1#..06S199805-200104

main79011-44170-E0iSXM15..06S199805-200208

main79011-44200-A0iSXM1#..06S199904-200009

main79011-44200-B0iSXM1#..06S200004-200104

main79011-44210-A0iSXM1#..06S199810-199903

main79011-44400-A0iSXM1#..06S200010-200104

main79011-44460-A0iACM10,CXM10,SXM15..06S200104-200208

main79011-44480-A0iACM10,CXM10,SXM15..06S200104-200208

main79011-44500-B0iACM10,SXM15..06S200104-200208

main79011-44540-A0iACM10,SXM15..06S200109-200207

main79011-44600-B0iACM1#..06S200208-200405

main79012-44120-A0iACM1#,CXM10..07S200208-200409

main79012-44130-A0iACM1#,CXM10..07S200208-200409

main79012-44140-B0iACM1#..07S200208-200409

main79012-44150-B0iACM1#..07S200208-200405

main79012-44160-A0iACM1#..07S200310-200409

sub79012-44310

79013COVER SUB-ASSY, NO.1 SEATBACK, RH

main79013-44070-B0iCXM10,SXM1#..07S199805-200104

main79013-44080-B0iCXM10,SXM1#..06S199805-200104

main79013-44090-B0iCXM10,SXM1#..07S199805-200104

main79013-44100-B0iCXM10,SXM1#..06S199805-200104

main79013-44170-E0iSXM1#..07S199805-200208

main79013-44180-E0iSXM15..06S199805-200208

main79013-44200-A0iSXM1#..07S199810-199903

main79013-44200-A0iSXM1#..07S199904-200009

main79013-44200-A0iSXM1#..07S199910-200004

main79013-44200-B0iSXM1#..07S200004-200104

main79013-44210-A0iSXM1#..06S199910-200004

main79013-44210-A0iSXM1#..06S199810-199903

main79013-44210-A0iSXM1#..06S199904-200009

main79013-44210-B0iSXM1#..06S200004-200104

main79013-44410-A0iSXM1#..07S200010-200104

main79013-44420-A0iSXM1#..06S200010-200104

main79013-44470-A0iACM10,CXM10,SXM15..07S200104-200208

main79013-44480-A0iACM10,CXM10,SXM15..06S200104-200208

main79013-44490-A0iACM10,CXM10,SXM15..07S200104-200208

main79013-44500-A0iACM10,CXM10,SXM15..06S200104-200208

main79013-44510-B0iACM10,SXM15..07S200104-200208

main79013-44520-B0iACM10,SXM15..06S200104-200208

main79013-44550-A0iACM10,SXM15..07S200109-200207

main79013-44560-A0iACM10,SXM15..06S200109-200207

main79013-44570-A0iACM1#,CXM10..07S200208-200409

main79013-44580-A0iACM1#,CXM10..06S200208-200409

main79013-44590-A0iACM1#,CXM10..07S200208-200409

main79013-44600-A0iACM1#,CXM10..06S200208-200409

main79013-44610-B0iACM1#..07S200208-200409

main79013-44620-B0iACM1#..06S200208-200409

main79013-44640-B0iACM1#..07S200208-200405

main79013-44650-B0iACM1#..06S200208-200405

main79013-44750-A0iACM1#..07S200310-200409

sub79013-44A90

79014COVER SUB-ASSY, NO.1 SEATBACK, LH

main79014-44070-B0iCXM10,SXM1#..07S199805-200104

main79014-44080-B0iCXM10,SXM1#..06S199805-200104

main79014-44090-B0iCXM10,SXM1#..07S199805-200104

main79014-44100-B0iCXM10,SXM1#..06S199805-200104

main79014-44170-E0iSXM1#..07S199805-200208

main79014-44180-E0iSXM15..06S199805-200208

main79014-44200-A0iSXM1#..07S199904-200009

main79014-44200-A0iSXM1#..07S199810-199903

main79014-44200-A0iSXM1#..07S199910-200004

main79014-44200-B0iSXM1#..07S200004-200104

main79014-44210-A0iSXM1#..06S199904-200009

main79014-44210-A0iSXM1#..06S199910-200004

main79014-44210-A0iSXM1#..06S199810-199903

main79014-44210-B0iSXM1#..06S200004-200104

main79014-44340-A0iSXM1#..07S200010-200104

main79014-44350-A0iSXM1#..06S200010-200104

main79014-44400-A0iACM10,CXM10,SXM15..07S200104-200208

main79014-44410-A0iACM10,CXM10,SXM15..06S200104-200208

main79014-44420-A0iACM10,CXM10,SXM15..07S200104-200208

main79014-44430-A0iACM10,CXM10,SXM15..06S200104-200208

main79014-44440-B0iACM10,SXM15..07S200104-200208

main79014-44450-B0iACM10,SXM15..06S200104-200208

main79014-44460-A0iACM10,SXM15..07S200109-200207

main79014-44470-A0iACM10,SXM15..06S200109-200207

main79014-44480-A0iACM1#,CXM10..07S200208-200409

main79014-44490-A0iACM1#,CXM10..06S200208-200409

main79014-44500-A0iACM1#,CXM10..07S200208-200409

main79014-44510-A0iACM1#,CXM10..06S200208-200409

main79014-44520-B0iACM1#..07S200208-200409

main79014-44530-B0iACM1#..06S200208-200409

main79014-44550-B0iACM1#..06S200208-200405

main79014-44580-A0iACM1#..07S200310-200409

sub79014-44750

main7901444540BiACM1#..07S200208-200405

79120CUSHION ASSY, NO.1 SEAT, RH

main79120-44070-A0iCXM10,SXM1#..06S199805-200104

main79120-44090-A0iCXM10,SXM1#..06S199805-200104

main79120-44170-E0iSXM15..06S199805-200208

main79120-44200-A0iSXM1#..06S199904-200009

main79120-44200-A0iSXM1#..06S199910-200004

main79120-44200-A0iSXM1#..06S199810-199903

main79120-44200-B0iSXM1#..06S200004-200104

main79120-44390-A0iSXM1#..06S200010-200104

79130CUSHION ASSY, NO.1 SEAT, LH

main79130-44020-A0iCXM10,SXM1#..06S199805-200104

main79130-44030-A0iCXM10,SXM1#..06S199805-200104

main79130-44070-E0iSXM1#..06S199805-200208

main79130-44080-A0iSXM1#..06S199810-199903

main79130-44080-A0iSXM1#..06S199910-200004

main79130-44080-A0iSXM1#..06S199904-200009

main79130-44080-B0iSXM1#..06S200004-200104

main79130-44160-A0iSXM1#..06S200010-200104

79140BACK ASSY, NO.1 SEAT, RH

main79140-44070-A0iCXM10,SXM1#..07S199805-200104

main79140-44080-A0iCXM10,SXM1#..06S199805-200104

main79140-44090-A0iCXM10,SXM1#..07S199805-200104

main79140-44100-A0iCXM10,SXM1#..06S199805-200104

main79140-44170-E0iSXM15..07S199805-200208

main79140-44180-E0iSXM15..06S199805-200208

main79140-44200-A0iSXM1#..07S199910-200004

main79140-44200-A0iSXM1#..07S199904-200009

main79140-44200-A0iSXM1#..07S199810-199903

main79140-44200-B0iSXM1#..07S200004-200104

main79140-44210-A0iSXM1#..06S199810-199903

main79140-44210-A0iSXM1#..06S199904-200009

main79140-44210-A0iSXM1#..06S199910-200004

main79140-44210-B0iSXM1#..06S200004-200104

main79140-44410-A0iSXM1#..07S200010-200104

main79140-44420-A0iSXM1#..06S200010-200104

79150BACK ASSY, NO.1 SEAT, LH

main79150-44070-A0iCXM10,SXM1#..07S199805-200104

main79150-44080-A0iCXM10,SXM1#..06S199805-200104

main79150-44090-A0iCXM10,SXM1#..07S199805-200104

main79150-44100-A0iCXM10,SXM1#..06S199805-200104

main79150-44170-E0iSXM15..07S199805-200208

main79150-44180-E0iSXM1#..06S199805-200208

main79150-44200-A0iSXM1#..07S199910-200004

main79150-44200-A0iSXM1#..07S199810-199903

main79150-44200-A0iSXM1#..07S199904-200009

main79150-44200-B0iSXM1#..07S200004-200104

main79150-44210-A0iSXM1#..06S199810-199903

main79150-44210-A0iSXM1#..06S199910-200004

main79150-44210-A0iSXM1#..06S199904-200009

main79150-44210-B0iSXM1#..06S200004-200104

main79150-44340-A0iSXM1#..07S200010-200104

main79150-44350-A0iSXM1#..06S200010-200104

9010910169

main90109-10169

9016740044

main90167-40044

9020114016

main90201-14016

9454201400

main94542-01400

31 parts on this diagram · 11 diagrams in section
