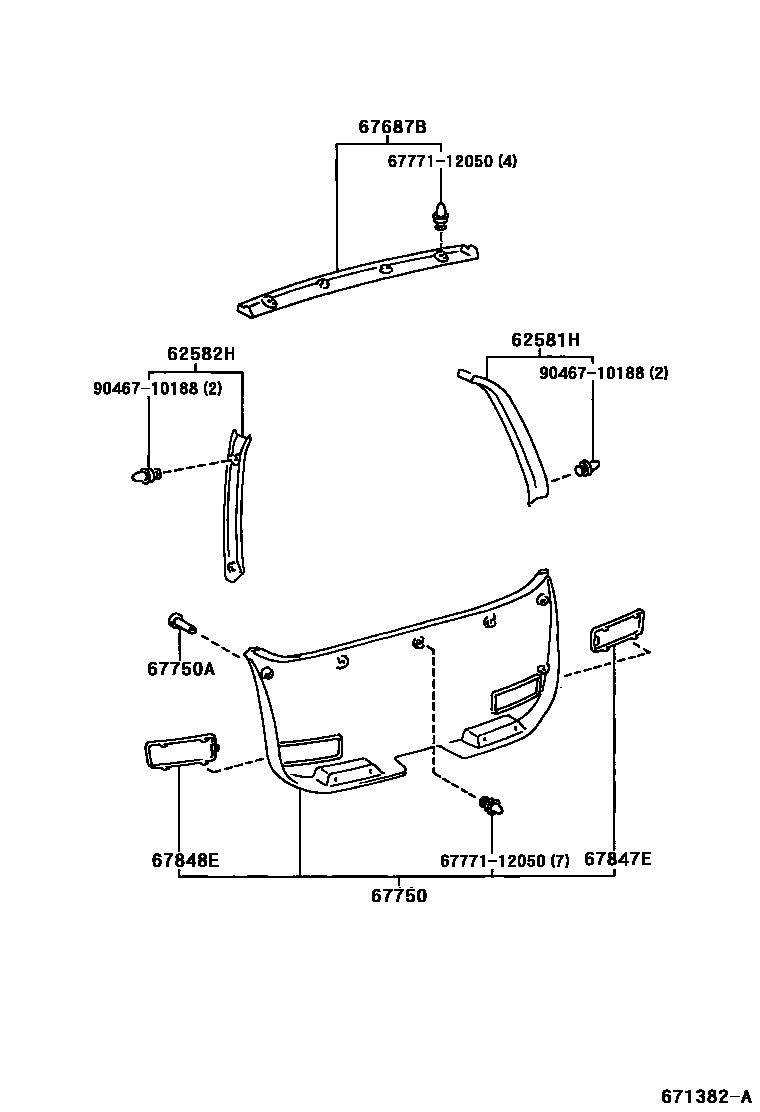

BACK DOOR PANEL & GLASS

0001 1 0002 1

62581HGARNISH, REAR WINDOW SIDE, RH

main62581-44020-A0iACM1#,CXM10,SXM15199805-200104

IVORY,TRIM0#

main62581-44020-B0iSXM1#200004-200104

MOON MIST,TRIM1#

main62581-44020-B1iACM1#,SXM15200104

DK.GRAY,TRIM1#

62582HGARNISH, REAR WINDOW SIDE, LH

main62582-44020-A0iCXM10,SXM1#199805-200104

IVORY,TRIM0#

main62582-44020-B0iSXM1#200004-200104

MOON MIST,TRIM1#

main62582-44020-B1iACM1#,SXM15200104

DK.GRAY,TRIM1#

67687BGARNISH, BACK WINDOW

main67687-44020-A0iSXM15199805-200409

IVORY,TRIM0#

sub67687-44020

main67687-44020-B0iSXM1#200004-200104

MOON MIST,TRIM1#

sub67687-44020

main67687-44020-B1iSXM15200104-200409

DK.GRAY,TRIM1#

sub67687-44020

67750BOARD ASSY, BACK DOOR TRIM

main67750-44020-A0iCXM10,SXM1#199805-200104

IVORY,TRIM0#

main67750-44050-A0iSXM15200104-200409

IVORY,TRIM0#

main67750-44050-B0iSXM1#200004-200104

MD.MOON MIST,TRIM1#

main67750-44050-B1iSXM15200104-200409

DK.GRAY,TRIM1#

67750ACLIP(FOR BACK DOOR TRIM)

main90467-10199-A0iCXM10,SXM1#199805-200409

IVORY,TRIM0#

main90467-10199-B1iSXM1#200004-200104

MD.MOON MIST,TRIM1#

main90467-10199-B2iSXM15200104-200409

DK.GRAY,TRIM1#

67847ECOVER, BACK DOOR SERVICE HOLE, RH

main67847-44020-A0iCXM10,SXM1#199805-200409

IVORY,TRIM0#

main67847-44020-B0iSXM1#200004-200104

MD.MOON MIST,TRIM1#

main67847-44020-B1iSXM15200104-200409

DK.GRAY,TRIM1#

67848ECOVER, BACK DOOR SERVICE HOLE, LH

main67848-44020-A0iACM1#,CXM10199805-200409

IVORY,TRIM0#

main67848-44020-B0iSXM1#200004-200104

MD.MOON MIST,TRIM1#

main67848-44020-B1iSXM15200104-200409

DK.GRAY,TRIM1#

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

9046710188

main90467-10188

9 parts on this diagram · 2 diagrams in section
