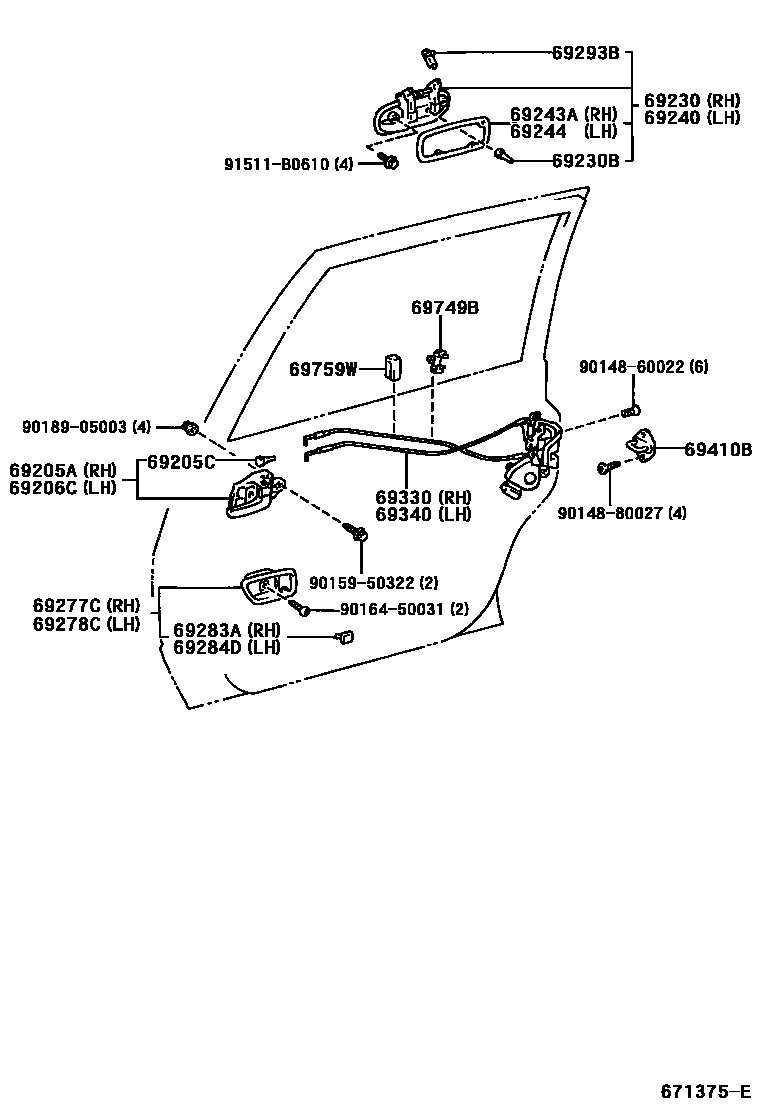

REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
IVORY,TRIM0#
DK.GRAY,TRIM1#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
IVORY,TRIM0#
DK.GRAY,TRIM1#
MD.MOON MIST,TRIM1#
SANDAL WOOD,TRIM0#
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69243APAD, REAR DOOR OUTSIDE HANDLE, RH
69244PAD, REAR DOOR OUTSIDE HANDLE, LH
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69293BSNAP, REAR DOOR OUTSIDE HANDLE
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69749BCLAMP, REAR DOOR LOCK LINK
69759WSNAP, REAR DOOR LOCK CONTROL LINK
9014860022
main90148-60022
9014880027
main90148-80027
9015950322
main90159-50322
9016450031
main90164-50031
9018905003
main90189-05003
91511B0610
main91511-B0610
24 parts on this diagram · 1 diagram in section
