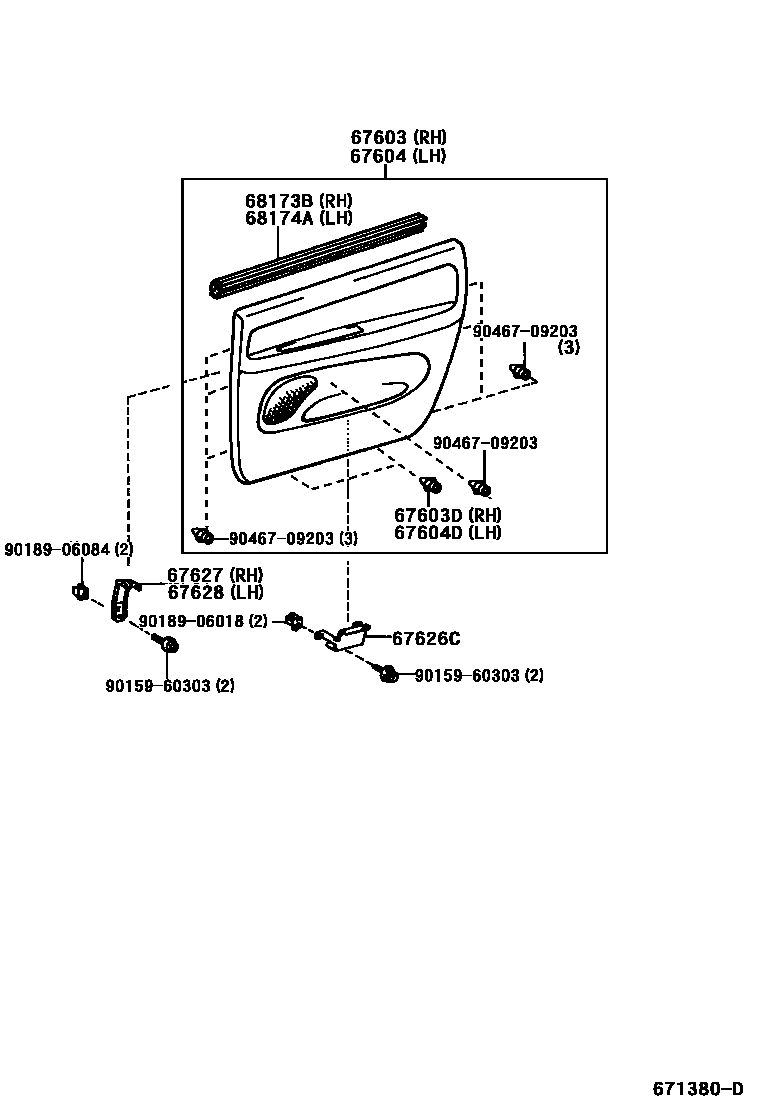

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-44060-B0iCXM10,SXM1#199805-200104

main67630-44070-B0iCXM10,SXM1#199805-200104

main67630-44130-E0iSXM1#199805-200208

main67630-44140-A0iSXM1#199904-200009

main67630-44140-A0iSXM1#199810-199903

main67630-44140-A0iSXM1#199910-200004

main67630-44140-B0iSXM1#200004-200104

main67630-44140-B1iACM1#200104-200409

main67630-44290-A0iSXM1#200010-200104

main67630-44290-A0iACM10,SXM15200109-200207

main67630-44330-A0iACM1#,CXM10200104-200409

main67630-44340-A0iSXM15200104-200409

main67630-44400-B0iACM1#200208-200405

main67630-44480-A0iACM1#..07S200310-200409

67603DRETAINER, REAR DOOR TRIM, RH

main67771-28020iCXM10,SXM1#199903-200201

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-44060-B0iCXM10,SXM1#199805-200104

main67640-44070-B0iCXM10,SXM1#199805-200104

main67640-44130-E0iSXM15199805-200208

main67640-44140-A0iSXM1#199910-200004

main67640-44140-A0iSXM1#199810-199903

main67640-44140-A0iSXM1#199904-200009

main67640-44140-B0iSXM1#200004-200104

main67640-44140-B1iSXM15200104-200409

main67640-44290-A0iSXM1#200010-200104

main67640-44290-A0iACM10,SXM15200109-200207

main67640-44330-A0iSXM15200104-200409

main67640-44340-A0iSXM15200104-200409

main67640-44400-B0iACM1#200208-200405

main67640-44480-A0iACM1#..07S200310-200409

67604DRETAINER, REAR DOOR TRIM, LH

main67771-28020iACM10,CXM10,SXM15199903-200201

67626CBRACKET, REAR DOOR TRIM, NO.2

main67625-44010iCXM10,SXM1#199805-200104

67627BRACKET, REAR DOOR TRIM, RH

main67643-44010iCXM10,SXM1#199805-200104

67628BRACKET, REAR DOOR TRIM, LH

main67644-44010iCXM10,SXM1#199805-200104

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-44020iCXM10,SXM1#199805-200409

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-44020iCXM10,SXM1#199805-200409

9015960303

main90159-60303

9018906018

main90189-06018

9018906084

main90189-06084

9046709203

main90467-09203

13 parts on this diagram · 2 diagrams in section
