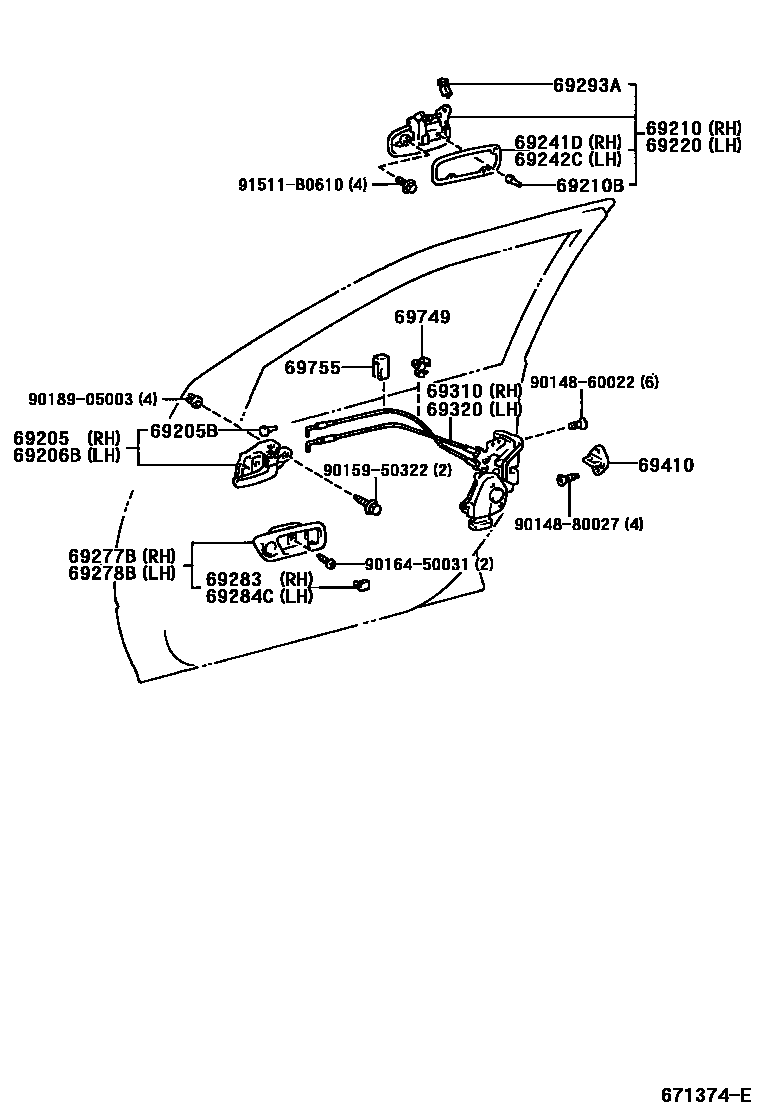

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
DK.GRAY,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM0#
DK.GRAY,TRIM1#
MD.MOON MIST,TRIM1#
SANDAL WOOD,TRIM0#
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69749CLAMP, FRONT DOOR LOCK LINK
69755SILENCER, FRONT DOOR LOCK LINK
9014860022
main90148-60022
9014880027
main90148-80027
9015950322
main90159-50322
9016450031
main90164-50031
9018905003
main90189-05003
91511B0610
main91511-B0610
24 parts on this diagram · 1 diagram in section
