EPC Data

DECK BOARD & DECK TRIM COVER

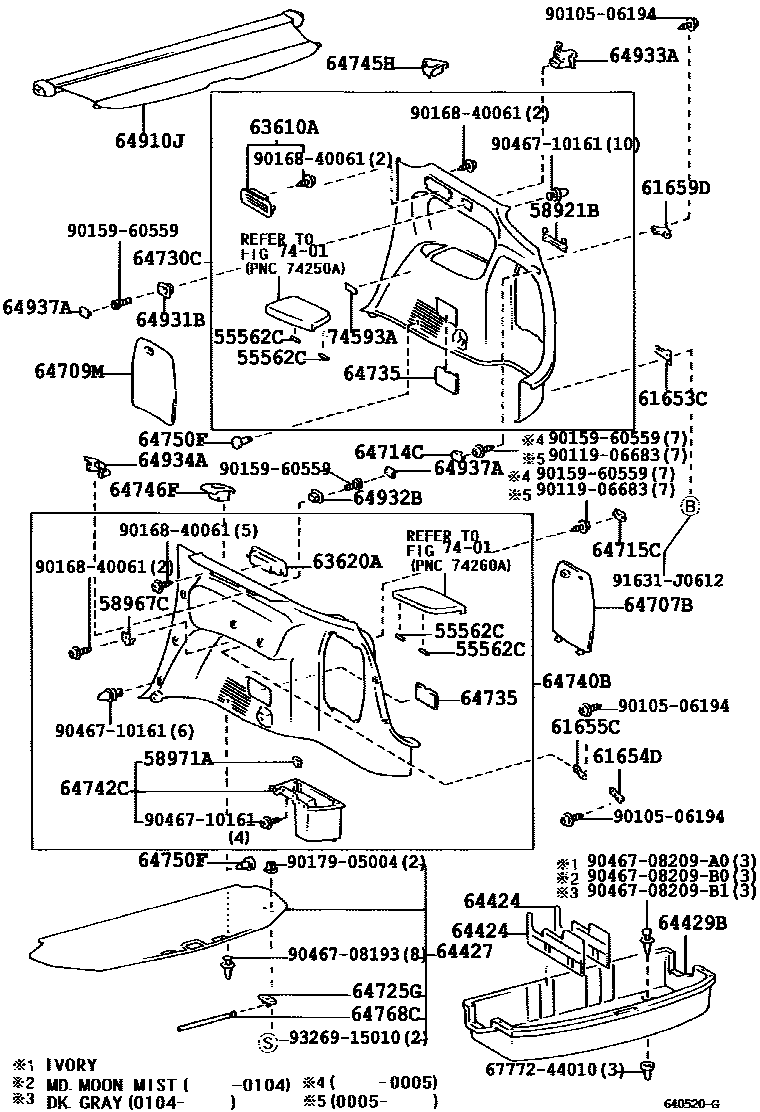

Parts diagram
55562CPIN, DECK TRIM DOOR LOCK
main64973-44010i199805-200104
58921BPLATE, DECK TRIM DOOR LOCK
main58909-44020i199805-200104
58967CSPRING, DECK SIDE BOX DOOR STOPPER
main58967-44020i199805-200104
58971ALOCK, CONSOLE COMPARTMENT DOOR
main58971-26010i199805-200104
61653CBRACKET, DECK SIDE TRIM, RH
main61653-44010i199805-200104
61654DBRACKET, DECK SIDE TRIM, NO.2
main61654-44010i199805-200104
61655CBRACKET, DECK SIDE TRIM, NO.3
main61655-44010i199805-200104
61659DBRACKET, DECK SIDE TRIM LOWER, NO.3
main61659-44010i199805-200104
63610AREGISTER ASSY, AIR OUTLET, RH
main63610-44020-A0i200104-200409
IVORY,TRIM0#
sub63610-44020
main63610-44020-B1i200004-200104
MD.MOON MIST,TRIM1#
sub63610-44020
main63610-44020-B2i200104-200409
DK.GRAY,TRIM1#
sub63610-44020
main63610-44020-E0i199805-200104
SANDAL WOOD,TRIM0#
sub63610-44020
63620AREGISTER ASSY, AIR OUTLET, LH
main63620-44020-A0i200104-200409
IVORY,TRIM0#
sub63620-44020
main63620-44020-B1i200004-200104
MD.MOON MIST,TRIM1#
sub63620-44020
main63620-44020-B2i200104-200409
DK.GRAY,TRIM1#
sub63620-44020
main63620-44020-E0i199805-200104
SANDAL WOOD,TRIM0#
sub63620-44020
64424SEPARATOR, LUGGAGE ROOM BOX
main64424-44020-A0i199805-200104
IVORY,TRIM0#
main64424-44020-B0i200004-200104
MD.MOON MIST,TRIM1#
main64424-44020-B1i200104
DK.GRAY,TRIM1#
64427LID, LUGGAGE ROOM BOX
main64420-44010-A0i199805-200409
IVORY,TRIM0#
main64420-44010-B0i200004-200104
MD.MOON MIST,TRIM1#
main64420-44010-B1i200104-200409
DK.GRAY,TRIM1#
64429BBOX, LUGGAGE ROOM
main64429-44020-A0i199805-200104
IVORY,TRIM0#
sub64429-44020
main64429-44020-B0i200004-200104
MD.MOON MIST,TRIM1#
sub64429-44020
main64429-44020-B1i200104
DK.GRAY,TRIM1#
sub64429-44020
64707BCOVER SUB-ASSY, QUARTER TRIM JACK
main64766-44020-A0i199805-200409
IVORY,TRIM0#
sub64766-44020
main64766-44020-B0i200004-200104
MD.MOON MIST,TRIM1#
sub64766-44020
main64766-44020-B1i200104-200409
DK.GRAY,TRIM1#
sub64766-44020
64709MCOVER SUB-ASSY, DECK TRIM POCKET
main64974-44020-A0i199805-200409
IVORY,TRIM0#
sub64974-44020
main64974-44020-B0i200004-200104
MD.MOON MIST,TRIM1#
sub64974-44020
main64974-44020-B1i200104-200409
DK.GRAY,TRIM1#
sub64974-44020
64714CCOVER, DECK SIDE TRIM, RH
main64714-44010-A0i199805-200409
IVORY,TRIM0#
main64714-44010-B0i200004-200104
MD.MOON MIST,TRIM1#
main64714-44010-B1i200104-200409
DK.GRAY,TRIM1#
64715CCOVER, DECK SIDE TRIM, LH
main64715-44010-A0i199805-200409
IVORY,TRIM0#
main64715-44010-B0i200004-200104
MD.MOON MIST,TRIM1#
main64715-44010-B1i200104-200409
DK.GRAY,TRIM1#
64725GRETAINER, LUGGAGE ROOM BOX LID
main64725-44010-A0i199805-200409
IVORY,TRIM0#
main64725-44010-B0i200104-200409
DK.GRAY,TRIM1#
main64725-44010-B1i200004-200104
MD.MOON MIST,TRIM1#
64730CBOARD, DECK TRIM SIDE, RH
main64730-44080-A2i199805-200104
sub64730-44350
main64730-44090-A2i199805-200104
main64730-44100-A2i199805-200004
sub64730-44100
sub64730-44350
main64730-44100-A3i200004-200104
sub64730-44100
sub64730-44350
main64730-44110-A2i199805-200004
sub64730-44110
sub64730-44360
main64730-44110-A3i200004-200104
sub64730-44110
sub64730-44360
main64730-44150-A0i199805-200208
main64730-44180-A0i199904-200009
sub64730-44180
main64730-44180-A0i199910-200004
sub64730-44180
main64730-44180-A0i199810-199903
sub64730-44180
main64730-44210-B1i200004-200104
main64730-44210-B2i200104-200409
main64730-44320-A0i200010-200104
sub64730-44350
main64730-44320-A1i200109-200207
sub64730-44350
main64730-44330-A0i200104-200409
sub64730-44350
main64730-44340-A0i200104-200409
main64730-44350-A0i200104-200409
sub64730-44946
main64730-44360-A0i200104-200409
main64730-44390-B0i200208-200405
main64730-44470-A0i200310-200409
sub64730-44350
64735COVER, DECK TRIM SIDE SERVICE HOLE
main64735-44010-A0i199805-200409
IVORY,TRIM0#
sub64735-44010
main64735-44010-B0i200004-200104
MD.MOON MIST,TRIM1#
sub64735-44010
main64735-44010-B1i200104-200409
DK.GRAY,TRIM1#
sub64735-44010
64740BBOARD, DECK TRIM SIDE, LH
main64740-44080-A2i199805-200104
sub64740-44350
main64740-44090-A2i199805-200104
main64740-44100-A2i199805-200004
sub64740-44100
main64740-44100-A3i200004-200104
sub64740-44100
main64740-44110-A2i199805-200004
sub64740-44110
sub64740-44360
main64740-44110-A3i200004-200104
sub64740-44110
sub64740-44360
main64740-44150-A0i199805-200208
main64740-44180-A0i199904-200009
sub64740-44180
main64740-44180-A0i199910-200004
sub64740-44180
main64740-44180-A0i199810-199903
sub64740-44180
main64740-44210-B1i200004-200104
main64740-44210-B2i200104-200409
main64740-44320-A0i200010-200104
sub64740-44350
main64740-44320-A1i200109-200207
sub64740-44350
main64740-44330-A0i200104-200409
sub64740-44350
main64740-44340-A0i200104-200409
main64740-44350-A0i200104-200409
sub64740-44965
main64740-44360-A0i200104-200409
main64740-44390-B0i200208-200405
main64740-44470-A0i200310-200409
sub64740-44350
64742CBOX, DECK SIDE TRIM, LH
main64742-44020-A0i199805-200409
IVORY,TRIM0#
sub64742-44020
main64742-44020-B0i200004-200104
MD.MOON MIST,TRIM1#
sub64742-44020
main64742-44020-B1i200104-200409
DK.GRAY,TRIM1#
sub64742-44020
64745HHOLDER, DECK SIDE TRIM CUP, RH
main64745-44020-A0i200104-200409
IVORY,TRIM0#
sub64745-44020
main64745-44020-B1i200004-200104
MD.MOON MIST,TRIM1#
sub64745-44020
main64745-44020-B2i200104-200409
DK.GRAY,TRIM1#
sub64745-44020
main64745-44020-E0i199805-200104
SANDAL WOOD,TRIM0#
sub64745-44020
64746FHOLDER, DECK SIDE TRIM CUP, LH
main64746-44020-A0i200104-200409
IVORY,TRIM0#
sub64746-44020
main64746-44020-B1i200004-200104
MD.MOON MIST,TRIM1#
sub64746-44020
main64746-44020-B2i200104-200409
DK.GRAY,TRIM1#
sub64746-44020
main64746-44020-E0i199805-200104
SANDAL WOOD,TRIM0#
sub64746-44020
64750FCLIP(FOR DECK SIDE TRIM PANEL)
main90467-06017-A0i199805-200409
IVORY,TRIM0#
sub90467-06017
main90467-06017-B3i200004-200104
MD.MOON MIST,TRIM1#
sub90467-06017
main90467-06017-B7i200104-200409
DK.GRAY,TRIM1#
sub90467-06017
64768CSTOPPER, LUGGAGE ROOM BOX LID
main64768-44010i199805-200104
64910JCOVER ASSY, TONNEAU
main64910-44020-A1i199805-200104
IVORY,TRIM0#
main64910-44020-B0i200004-200104
MEDIUM MOON MIST,TRIM1#
main64910-44070-A0i200104-200409
IVORY,TRIM0#
sub64910-44070
main64910-44070-B0i200104-200409
DK.GRAY,TRIM1#
sub64910-44070
64931BHANGER, TONNEAU COVER, RH
main64931-44010-A0i200104-200409
IVORY,TRIM0#
sub64931-44010
main64931-44010-B1i200004-200104
MD.MOON MIST,TRIM1#
sub64931-44010
main64931-44010-B2i200104-200409
DK.GRAY,TRIM1#
sub64931-44010
main64931-44010-E0i199805-200104
SANDAL WOOD,TRIM0#
sub64931-44010
64932BHANGER, TONNEAU COVER, LH
main64932-44010-A0i200104-200409
IVORY,TRIM0#
sub64932-44010
sub64931-44010
main64932-44010-B1i200004-200104
MD.MOON MIST,TRIM1#
sub64932-44010
sub64931-44010
main64932-44010-B2i200104-200409
DK.GRAY,TRIM1#
sub64932-44010
sub64931-44010
main64932-44010-E0i199805-200104
SANDAL WOOD,TRIM0#
sub64932-44010
sub64931-44010
64933ABRACKET, TONNEAU COVER HOLDER, RH
main64933-44010i199805-200104
64934ABRACKET, TONNEAU COVER HOLDER, LH
main64934-44010i199805-200104
64937ACAP, TONNEAU COVER HOLDER, NO.1
main64937-44010-A1i200104-200409
IVORY,TRIM0#
sub64937-44010
main64937-44010-B1i200004-200104
MD.MOON MIST,TRIM1#
sub64937-44010
main64937-44010-B3i200104-200409
DK.GRAY,TRIM1#
sub64937-44010
main64937-44010-E0i199805-200104
SANDAL WOOD,TRIM0#
sub64937-44010
7401
74593ALABEL, DECK TRIM SIDE
main74593-44020i199805-200104
6777244010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-44010
9010506194
main90105-06194
9011906683
main90119-06683
9015960559
main90159-60559
9016840061
main90168-40061
9017905004
main90179-05004
9046708193
main90467-08193
9046708209A0
main90467-08209A0
9046708209B0
main90467-08209B0
9046708209B1
main90467-08209B1
9046710161
main90467-10161
91631J0612
main91631-J0612
9326915010
main93269-15010

47 parts on this diagram · 1 diagram in section
