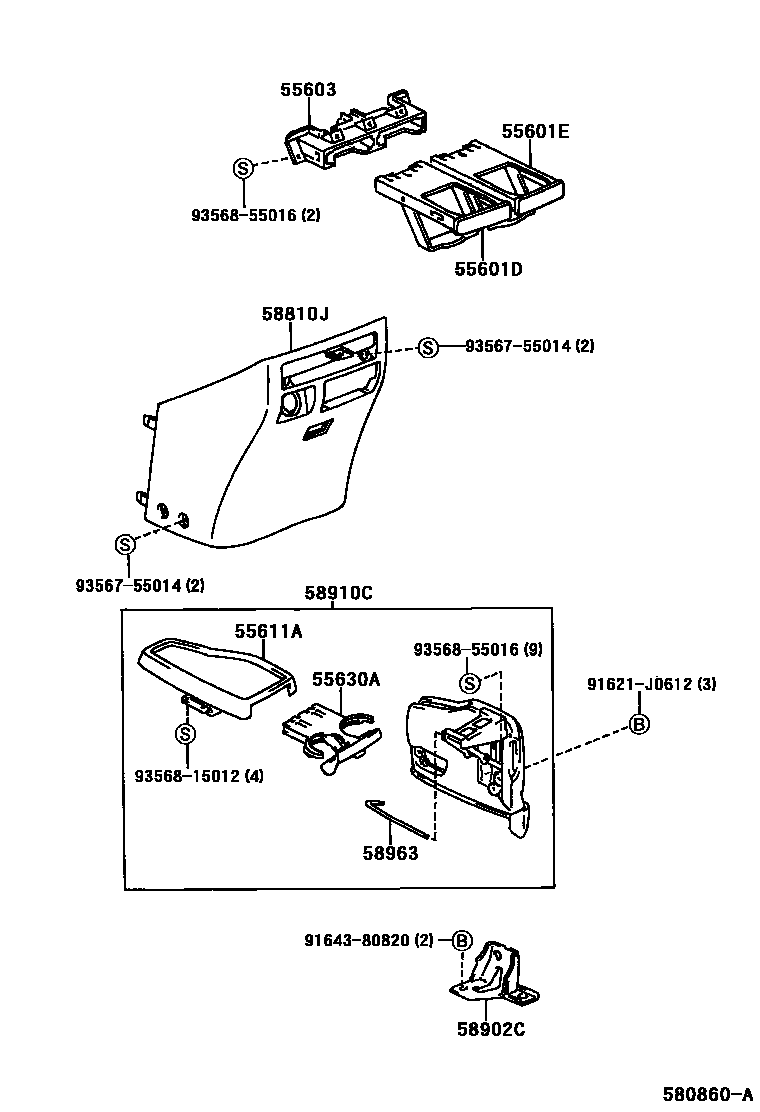

CONSOLE BOX & BRACKET
55601DTRAY SUB-ASSY, INSTRUMENT PANEL UNDER, LH
55601ETRAY SUB-ASSY, INSTRUMENT PANEL UNDER, RH
55603CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER
55611ATRAY, INSTRUMENT PANEL UNDER
55630AHOLDER, REAR CONSOLE BOX, CUP
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58910CBOX ASSY, CONSOLE, REAR
IVORY,TRIM0#
MD.MOON MIST,TRIM1#
DK.GRAY,TRIM1#
sub58910-44120
sub58910-44120
sub58910-44120
sub58910-44010
sub58910-44010
sub58910-44010
58963SHAFT, CONSOLE COMPARTMENT DOOR HINGE
91621J0612
main91621-J0612
9164380820
main91643-80820
9356755014
main93567-55014
9356815012
main93568-15012
9356855016
main93568-55016
14 parts on this diagram · 1 diagram in section
