MAT & CARPET

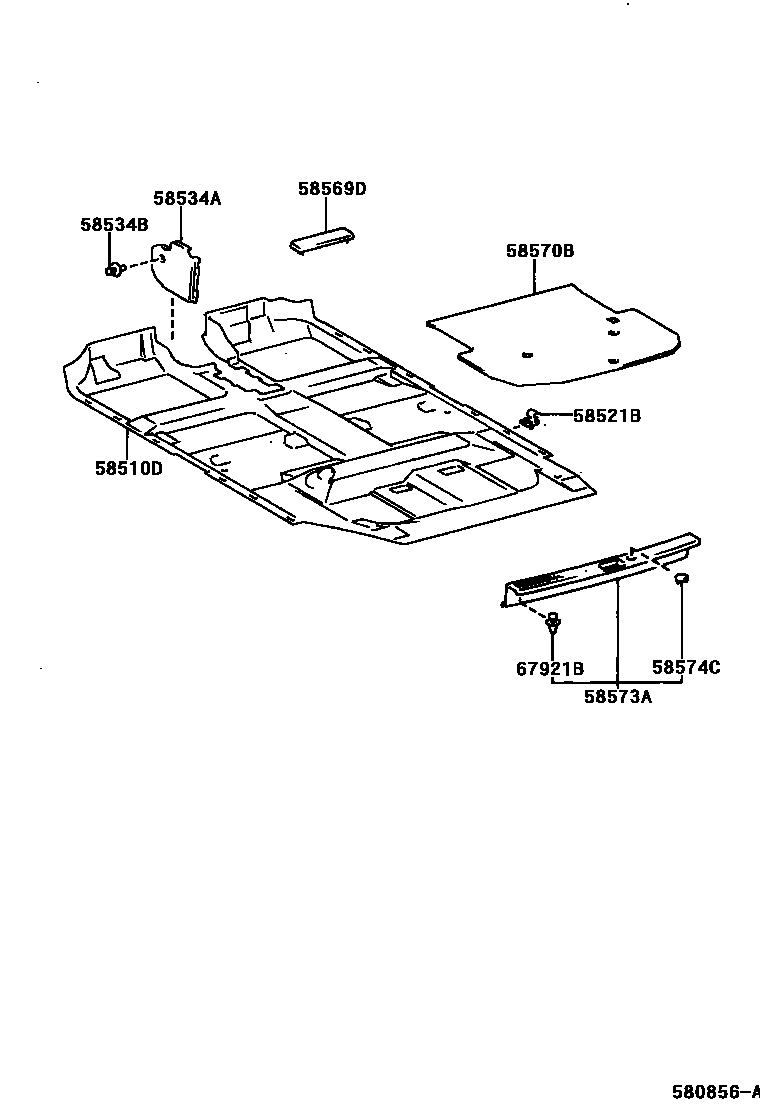

Parts diagram
58510DCARPET ASSY, FLOOR, FRONT
main58510-44180-A0i199805-200104
IVORY,TRIM0#
sub58510-4C170
sub58510-4C290
main58510-44180-B0i200004-200104
MEDIUM MOON MIST,TRIM1#
sub58510-4C170
sub58510-4C290
main58510-44190-A0i199805-200104
IVORY,TRIM0#
sub58510-4C180
sub58510-4C300
main58510-44190-B0i200004-200104
MEDIUM MOON MIST,TRIM1#
sub58510-4C180
sub58510-4C300
main58510-44200-A0i199805-200104
sub58510-4C190
sub58510-4C310
main58510-44200-B0i200004-200104
sub58510-4C190
sub58510-4C310
main58510-44210-A0i199805-200104
sub58510-4C200
sub58510-4C320
main58510-44210-B0i200004-200104
sub58510-4C200
sub58510-4C320
main58510-44220-A0i199805-200104
IVORY,TRIM0#
sub58510-4C210
sub58510-4C290
main58510-44230-A0i199805-200104
IVORY,TRIM0#
sub58510-4C220
sub58510-4C300
main58510-44230-B0i200004-200104
MEDIUM MOON MIST,TRIM1#
sub58510-4C220
sub58510-4C300
main58510-44240-A0i199805-200104
sub58510-4C230
sub58510-4C310
main58510-44250-A0i199805-200104
sub58510-4C240
sub58510-4C320
main58510-44250-B0i200004-200104
sub58510-4C240
sub58510-4C320
main58510-44380-A0i199805-200104
sub58510-4C250
sub58510-4C290
main58510-44380-B0i200004-200104
sub58510-4C250
sub58510-4C290
main58510-44390-A0i199805-200104
sub58510-4C260
sub58510-4C300
main58510-44390-B0i200004-200104
sub58510-4C260
sub58510-4C300
main58510-44400-A0i199805-200104
sub58510-4C270
sub58510-4C310
main58510-44400-B0i200004-200104
sub58510-4C270
sub58510-4C310
main58510-44410-A0i199805-200104
sub58510-4C280
sub58510-4C320
main58510-44410-B0i200004-200104
sub58510-4C280
sub58510-4C320
main58510-44420-A0i199805-200104
sub58510-4C290
main58510-44420-B0i200004-200104
sub58510-4C290
main58510-44430-A0i199805-200104
sub58510-4C300
main58510-44430-B0i200004-200104
sub58510-4C300
main58510-44440-A0i199805-200104
sub58510-4C310
main58510-44440-B0i200004-200104
sub58510-4C310
main58510-44450-A0i199805-200104
sub58510-4C320
main58510-44450-B0i200004-200104
sub58510-4C320
main58510-4C170-A0i200104-200208
IVORY,TRIM0#
sub58510-4C290
main58510-4C170-C0i200104-200208
BLACK,TRIM1#
sub58510-4C290
main58510-4C180-A0i200104-200208
IVORY,TRIM0#
sub58510-4C300
main58510-4C180-C0i200104-200208
BLACK,TRIM1#
sub58510-4C300
main58510-4C181-A0i200208-200409
IVORY,TRIM0#
sub58510-4C261
main58510-4C181-C0i200208-200409
BLACK,TRIM1#
sub58510-4C261
main58510-4C190-A0i200104-200208
sub58510-4C310
main58510-4C190-C0i200104-200208
sub58510-4C310
main58510-4C200-A0i200104-200208
sub58510-4C320
main58510-4C200-C0i200104-200208
sub58510-4C320
main58510-4C201-A0i200208-200409
sub58510-4C281
main58510-4C201-C0i200208-200409
sub58510-4C281
main58510-4C210-A0i200104-200208
IVORY,TRIM0#
sub58510-4C290
main58510-4C210-C0i200104-200208
BLACK,TRIM1#
sub58510-4C290
main58510-4C220-A0i200104-200208
IVORY,TRIM0#
sub58510-4C300
main58510-4C220-C0i200104-200208
BLACK,TRIM1#
sub58510-4C300
main58510-4C221-A0i200208-200409
IVORY,TRIM0#
sub58510-4C301
main58510-4C221-C0i200208-200409
BLACK,TRIM1#
sub58510-4C301
main58510-4C230-A0i200104-200208
sub58510-4C310
main58510-4C230-C0i200104-200208
sub58510-4C310
main58510-4C240-A0i200104-200208
sub58510-4C320
main58510-4C240-C0i200104-200208
sub58510-4C320
main58510-4C241-A0i200208-200409
sub58510-4C321
main58510-4C241-C0i200208-200409
sub58510-4C321
main58510-4C250-A0i200104-200208
sub58510-4C290
main58510-4C250-C0i200104-200208
sub58510-4C290
main58510-4C260-A0i200104-200208
sub58510-4C300
main58510-4C260-C0i200104-200208
sub58510-4C300
main58510-4C261-A0i200208-200409
main58510-4C261-C0i200208-200409
main58510-4C270-A0i200104-200208
sub58510-4C310
main58510-4C270-C0i200104-200208
sub58510-4C310
main58510-4C280-A0i200104-200208
sub58510-4C320
main58510-4C280-C0i200104-200208
sub58510-4C320
main58510-4C281-A0i200208-200409
main58510-4C281-C0i200208-200409
main58510-4C290-A0i200104-200208
main58510-4C290-C0i200104-200208
main58510-4C300-A0i200104-200208
main58510-4C300-C0i200104-200208
main58510-4C301-A0i200208-200409
main58510-4C301-C0i200208-200409
main58510-4C310-A0i200104-200208
main58510-4C310-C0i200104-200208
main58510-4C320-A0i200104-200208
main58510-4C320-C0i200104-200208
main58510-4C321-A0i200208-200409
main58510-4C321-C0i200208-200409
58521BHOOK, FLOOR CARPET
main58521-44010i199805-200104
58534AMAT, TRANSMISSION COVER
main58534-44010-B0i200004-200104
MD.MOON MIST,TRIM1#
sub58534-44010
main58534-44010-B1i199805-200104
DK.CHARCOAL,TRIM0#
sub58534-44010
main58534-44010-B3i200104-200409
DK.GRAY,TRIM1#
sub58534-44010
main58534-44010-E0i200104-200409
SANDAL WOOD,TRIM0#
sub58534-44010
58534BCLIP(FOR FLOOR CARPET CENTER COVER)
main90467-07121-B0i200005-200104
BLUISH GRAY,TRIM1#
sub90467-07121
sub90467-07207
main90467-07121-B1i200004-200005
MD.MOON MIST,TRIM1#
sub90467-07121
sub90467-07207
main90467-07121-B3i199805-200104
DK.CHARCOAL,TRIM0#
sub90467-07121
sub90467-07207
main90467-07121-B9i200104-200409
DK.GRAY,TRIM1#
sub90467-07121
sub90467-07207
main90467-07121-E1i200104-200409
SANDAL WOOD,TRIM0#
sub90467-07121
sub90467-07207
58569DCOVER, FRONT FLOOR CAUTION PLATE
main58569-44010-A0i199805-200409
IVORY,TRIM0#
sub58569-44010
main58569-44010-B0i200004-200104
MD.MOON MIST,TRIM1#
sub58569-44010
main58569-44010-C0i200105-200409
BLACK,TRIM1#
sub58569-44010
58570BMAT ASSY, REAR FLOOR
main58517-44020i199805-200104
58573APLATE, REAR FLOOR MAT SUPPORT
main67935-44010-A0i199805-200409
IVORY,TRIM0#
sub67935-44010
main67935-44010-B0i200004-200104
MD.MOON MIST,TRIM1#
sub67935-44010
main67935-44010-B1i200104-200409
DK.GRAY,TRIM1#
sub67935-44010
58574CPLUG, REAR FLOOR MAT SUPPORT PLATE HOLE
main67919-44010-A0i199805-200409
IVORY,TRIM0#
sub67919-44010
main67919-44010-B0i200004-200104
MD.MOON MIST,TRIM1#
sub67919-44010
main67919-44010-B2i200104-200409
DK.GRAY,TRIM1#
sub67919-44010
67921BRETAINER, REAR FLOOR MAT SUPPORT
main67921-95501i199805-200104

9 parts on this diagram · 1 diagram in section
