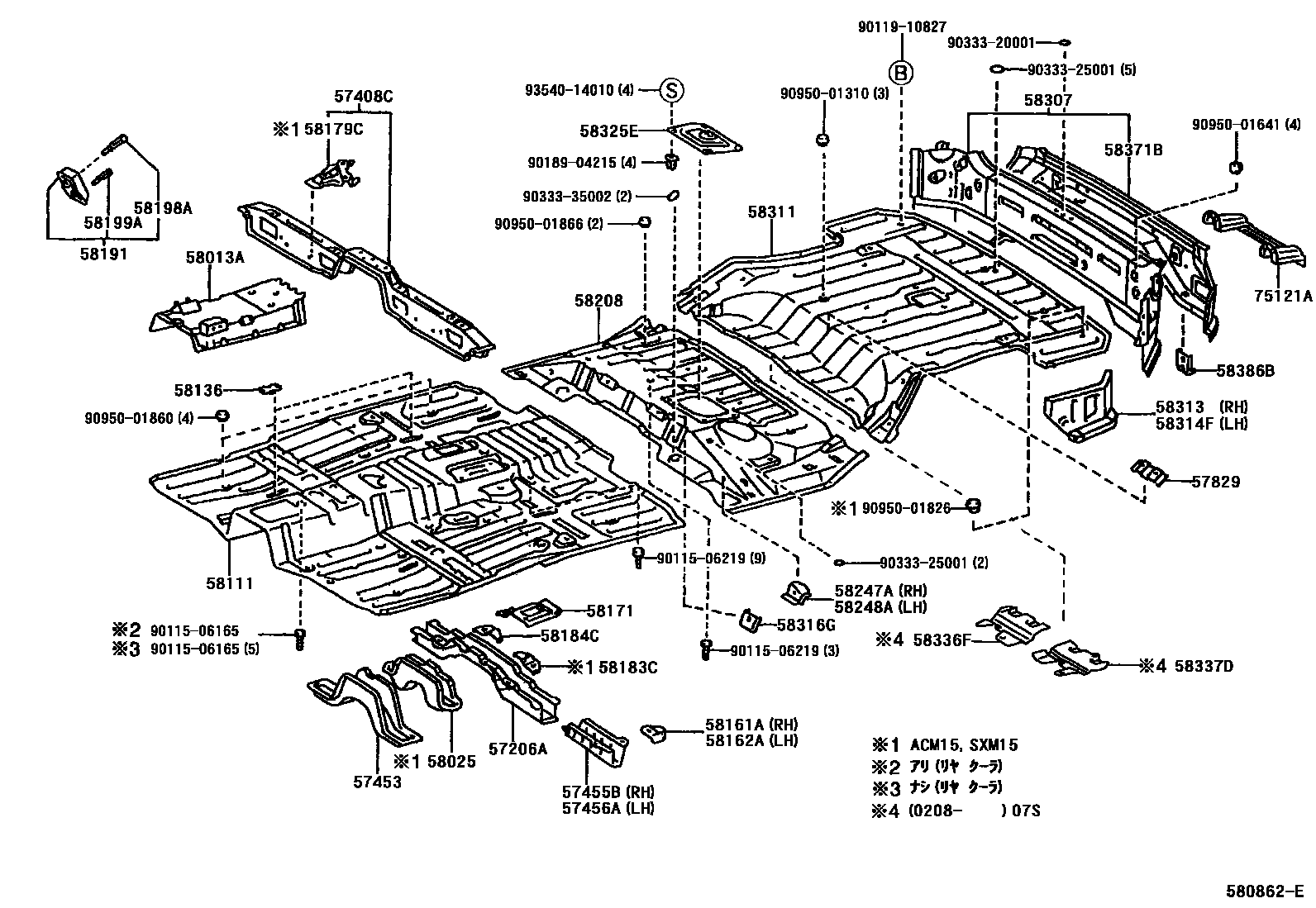

FLOOR PAN & LOWER BACK PANEL
57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
57453MEMBER, FRONT FLOOR CROSS, NO.3
57455BGUSSET, FRONT FLOOR CROSSMEMBER, RH
57456AGUSSET, FRONT FLOOR CROSSMEMBER, LH
57829REINFORCEMENT, SEAT LEG
58013APANEL SUB-ASSY, FRONT FLOOR, REAR UPPER
58025REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58111PAN, FRONT FLOOR
58136COVER, FRONT FLOOR HOLE
58161AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58162AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58171REINFORCEMENT, PARKING BRAKE BASE
58179CBRACKET, CLAMP FLOOR
58183CBRACKET, FRONT SEAT MOUNTING, INSIDE RH
58184CBRACKET, FRONT SEAT MOUNTING, INNER LH
58191FOOTREST, FRONT FLOOR
58198ACLIP, FOOTREST, NO.1
58199ACLIP, FOOTREST, NO.2
58208PAN, CENTER FLOOR
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58316GRETAINER, REAR SEAT, NO.1
58325ECOVER, REAR FLOOR SERVICE HOLE
58336FREINFORCEMENT, REAR FLOOR PAN, RH
58337DREINFORCEMENT, REAR FLOOR PAN, LH
58371BPANEL, BODY LOWER BACK, OUTER
58386BBRACKET, REAR BUMPER COVER, NO.2
75121ABRACKET, REAR LICENSE PLATE
9011506165
9011506219
9011910827
9018904215
9033320001
9033325001
9033335002
9095001310
9095001641
9095001826
9095001860
9095001866
9354014010
46 parts on this diagram · 1 diagram in section
