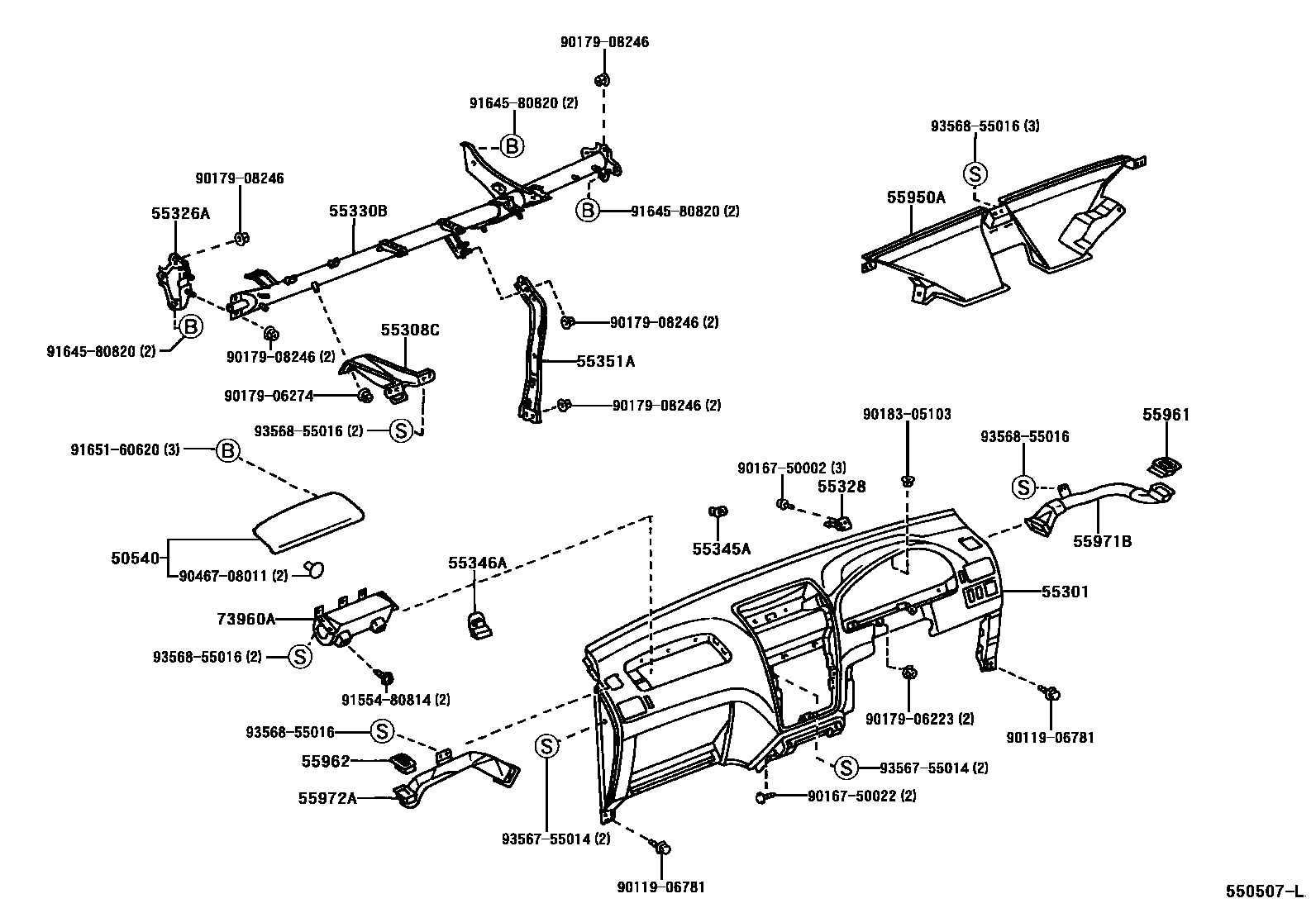

INSTRUMENT PANEL & GLOVE COMPARTMENT
50540DO0R ASSY, AIRBAG PASSENGER
55301PANEL SUB-ASSY, INSTRUMENT
MD.MOON MIST,TRIM1#
DK.CHARCOAL,TRIM0#
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55326ASTAY, INSTRUMENT PANEL, NO.1
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55345ACLIP, INSTRUMENT PANEL, NO.1
55346ACLIP, INSTRUMENT PANEL, NO.2
55351ABRACE, INSTRUMENT PANEL TO FLOOR
55950ANOZZLE ASSY, DEFROSTER
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
9011906781
main90119-06781
9016750002
main90167-50002
9016750022
main90167-50022
9017906223
main90179-06223
9017906274
main90179-06274
9017908246
main90179-08246
9018305103
main90183-05103
9046708011
main90467-08011
9155480814
main91554-80814
9164580820
main91645-80820
9165160620
main91651-60620
9356755014
main93567-55014
9356855016
main93568-55016
28 parts on this diagram · 3 diagrams in section
