HOOD & FRONT FENDER

5102

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-44020iCXM10,SXM1#199805-200104

53183NCLIP(FOR HEADLAMP COVER SEAL)

main90467-07189iCXM10,SXM1#199807-200104

sub90467-08072

main90467-08028iACM1#,CXM10,SXM15199805-200104

main90467-08033iCXM10,SXM1#199805-199806

53184GSEAL, HEADLAMP COVER, LH

main53184-44020iACM1#,CXM10,SXM15199805-200104

53301HOOD SUB-ASSY

main53301-44020iSXM15199805-200409

53341BINSULATOR, HOOD

main53341-44010iCXM10199805-200104

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-44010iCXM10,SXM1#199805-200104

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iCXM10,SXM1#199805-200104

53801FENDER SUB-ASSY, FRONT RH

main53811-44030iCXM10,SXM1#199805-200409

53802FENDER SUB-ASSY, FRONT LH

main53812-44030iSXM15199805-200409

53804ABRACKET SUB-ASSY, FRONT SIDE PANEL, LH

main53804-20020iCXM10,SXM1#199805-200409

53829BPROTECTOR, FRONT FENDER, LOWER RH

main53829-44010iCXM10,SXM1#199805-200104

53829CPROTECTOR, FRONT FENDER, LOWER LH

main53839-44010iCXM10,SXM1#199805-200104

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-20070iCXM10,SXM1#199805-200409

53875ALINER, FRONT FENDER, RH

main53875-44020iCXM10,SXM1#199805-200104

53876ALINER, FRONT FENDER, LH

main53876-44020iCXM10,SXM1#199805-200104

53882FSEAL, FRONT FENDER

main53882-16030iCXM10,SXM1#199805-200409

57163BREINFORCEMENT, FRONT CROSSMEMBER

main57163-44010iCXM10,SXM1#199805-200409

5146728040RETAINER, ENGINE UNDER COVER

main51467-28040

9015960477

main90159-60477

9015960496

main90159-60496

9015960498

main90159-60498

9018906065

main90189-06065

9018906114

main90189-06114

9018906193

main90189-06193

9046704023

main90467-04023

9046707166

main90467-07166

9046709006

main90467-09006

9054115004

main90541-15004

9095006096

main90950-06096

91641C0614

main91641-C0614

91651B0820

main91651-B0820

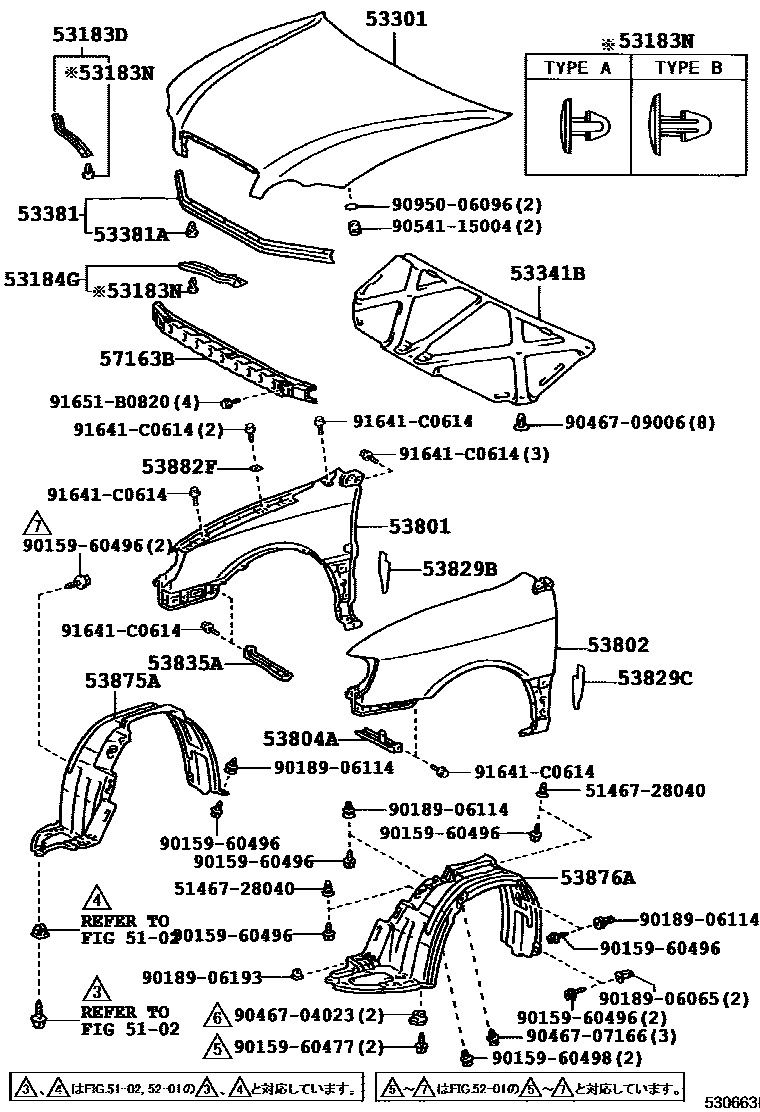

32 parts on this diagram · 1 diagram in section
