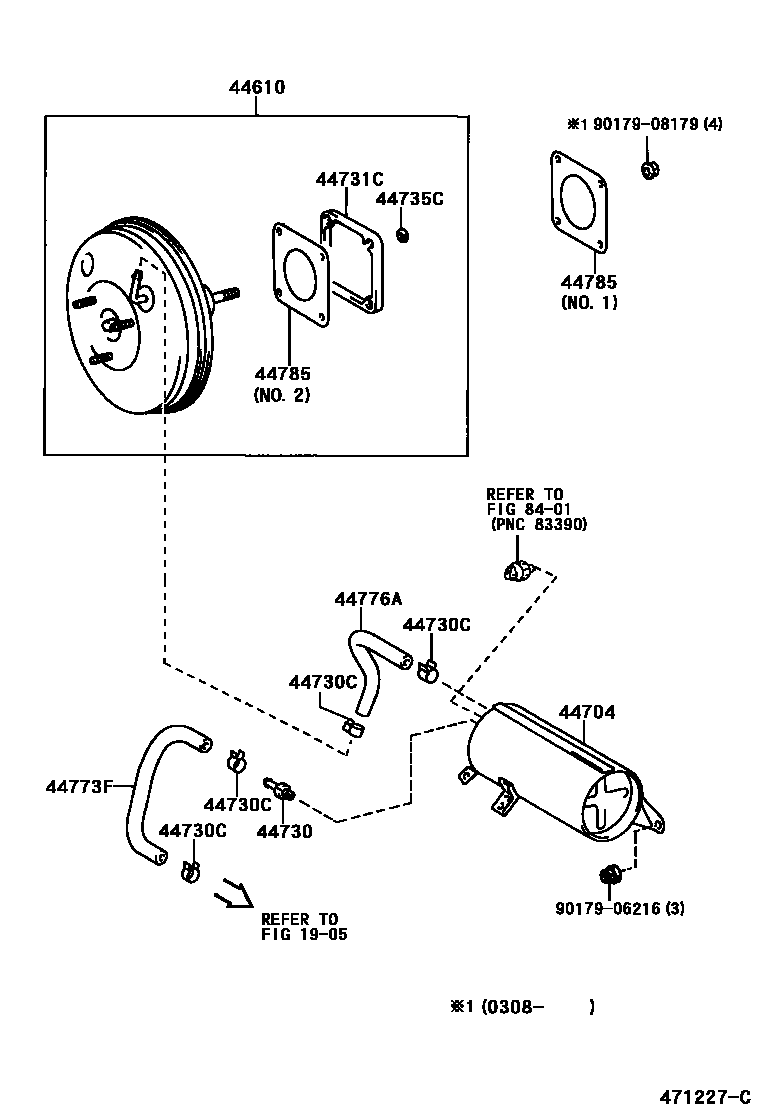

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1905

44610BOOSTER ASSY, BRAKE

main44610-44060iSXM1#199805-200208

main44610-44080iCXM10199805-200104

main44610-44110iACM1#200104

44704RESERVOIR SUB-ASSY, VACUUM

main44704-44010iCXM10199805-200104

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iSXM15199805-200208

main44730-28010iACM1#200104

main44730-60050iCXM10199805-200104

44730CCLIP(FOR VACUUM HOSE)

main96133-41500iACM1#200104-200409

main96134-51500iSXM15199805-200409

sub96133-41500

44731CBRACKET, BRAKE BOOSTER

main44731-44010iCXM10199805-200104

44735CRING, BOOSTER BRACKET STOPPER

main44735-30010iCXM10199805-200104

44773FHOSE, UNION TO CHECK VALVE

main44773-44010iSXM15199805-200208

main44773-44020iCXM10199805-200104

main44773-44090iACM1#200104

44776HOSE, BRAKE BOOSTER

main44776-44030iACM1#200104

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44776-44010iCXM10199805-200104

44785GASKET, BRAKE BOOSTER

main44785-20020iCXM10199805-200104

main44785-32010iCXM10199805-200104

8401

9017906216

main90179-06216

9017908179

main90179-08179

14 parts on this diagram · 3 diagrams in section
