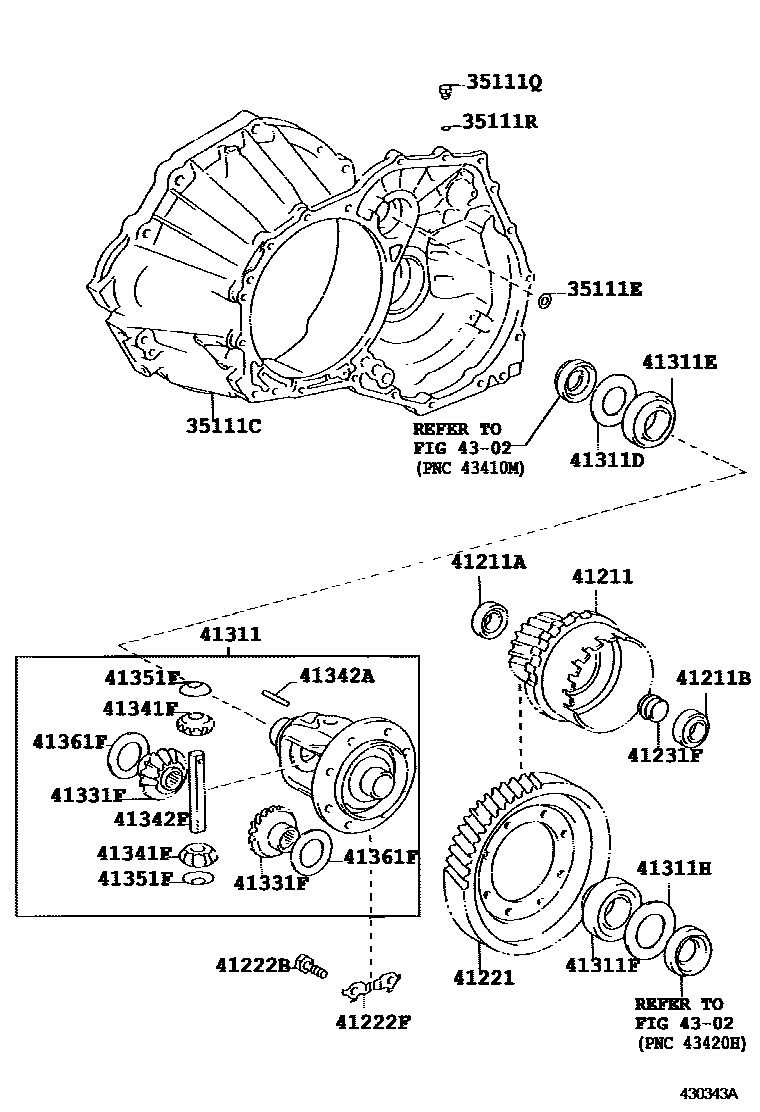

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1A241E,A247E 0002 1A243F,A248F

35111CHOUSING, TRANSAXLE

main35105-20014iCXM10199805-200409

main35105-20040iSXM10199805-200104

main35105-21020iSXM15199805-200208

main35105-28050iACM15200104-200409

main35105-44020iACM10200104-200409

35111EWASHER, SEAL (FOR FRONT TRANSAXLE HOUSING)

main90210-13002iSXM15199805-200409

35111QPLUG, NO.2 (FOR TRANSAXLE HOUSING)

main90341-08001iCXM10,SXM1#199805-200409

35111RRING, O (FOR TRANSAXLE HOUSING PLUG NO.2)

main90301-06196iCXM10,SXM1#199805-200409

41211PINION, DIFFERENTIAL DRIVE

main41206-17030iCXM10199805-200409

main41206-20080iSXM10199805-200409

main41206-28010iACM15200208-200409

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-30053iACM10199805-200107

sub90366-30085

main90366-30054iCXM10,SXM15199805-200409

main90366-30085iACM15200104-200409

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-30053iCXM10,SXM15199805-200111

sub90366-30085

main90366-30054iACM15199805-200409

main90366-30085iCXM10,SXM15200112-200409

41221GEAR, FRONT DIFFERENTIAL RING

main41221-17030iCXM10199805-200409

main41221-20290iACM10199805-200409

main41221-21080iACM15199805-200409

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353iCXM10,SXM10199805-200409

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-20030iCXM10,SXM10199805-200409

main41222-21010iACM15199805-200409

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-17010iCXM10,SXM1#199805-200409

41311CASE, FRONT DIFFERENTIAL

main41301-20112iACM10199805-200409

main41301-21050iSXM15199805-200409

41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)

main90564-45015iACM10199805-200409

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-50045iSXM15199805-200409

main90368-40002iACM10199805-200409

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-44001iCXM10,SXM1#199805-200409

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90201-45004iCXM10,SXM1#199805-200409

main90201-45005iCXM10199805-200409

main90201-45006iACM15199805-200409

main90201-45007iACM10199805-200409

main90201-45008iSXM15199805-200409

main90201-45009iACM15199805-200409

main90201-45010iACM10199805-200409

main90201-45011iCXM10199805-200409

main90201-45012iCXM10199805-200409

main90201-45013iCXM10199805-200409

main90201-45014iCXM10199805-200409

main90201-45015iCXM10,SXM1#199805-200409

main90201-45016iCXM10199805-200409

main90201-45017iCXM10199805-200409

main90201-45018iACM10199805-200409

main90201-45019iCXM10199805-200409

main90201-45020iCXM10199805-200409

main90201-45021iACM15199805-200409

main90201-45022iACM10199805-200409

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-32010iACM15199805-200409

41341FPINION, FRONT DIFFERENTIAL

main41341-30011iCXM10,SXM1#199805-200409

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iCXM10,SXM1#199805-200409

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-21020iACM15199805-200409

main41342-32020iCXM10,SXM10199805-200409

sub41342-52060

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-32010iCXM10199805-200409

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-17010iCXM10,SXM1#199805-200409

main41361-17020iCXM10,SXM1#199805-200409

main41361-17030iCXM10199805-200409

main41361-17040iACM10199805-200409

main41361-17050iCXM10,SXM1#199805-200409

main41361-17060iCXM10199805-200409

4302

23 parts on this diagram · 2 diagrams in section
