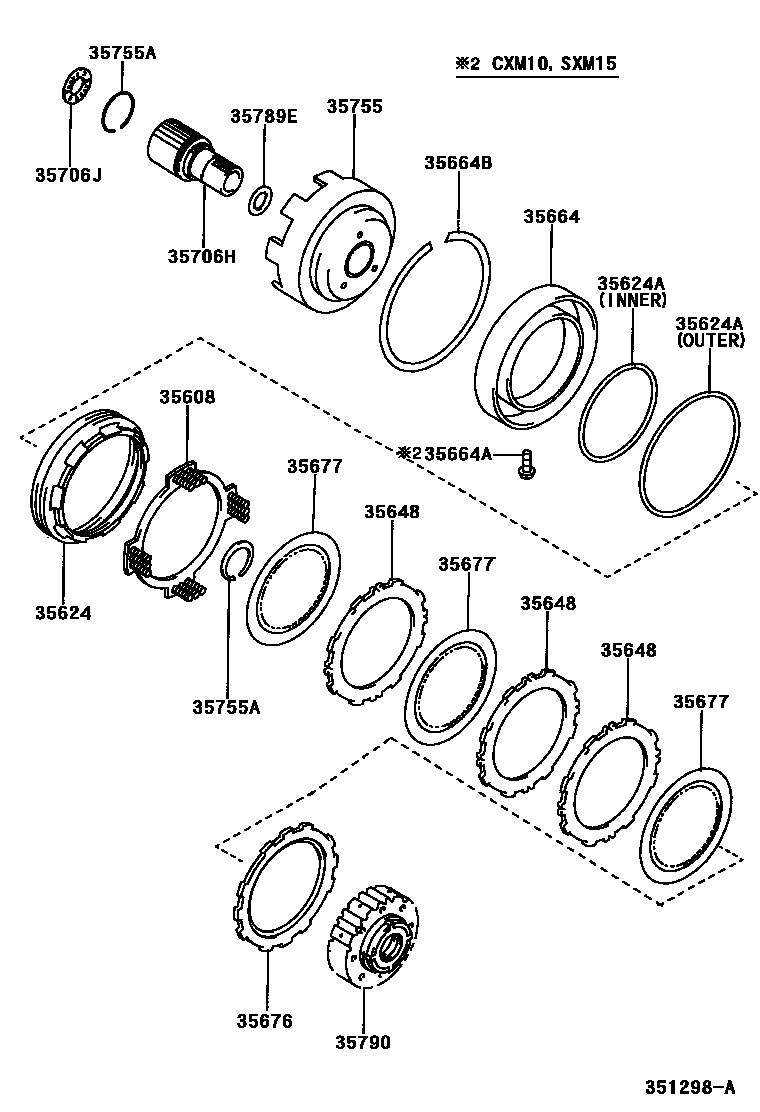

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iACM1#,CXM10,SXM15200104-200409

35624PISTON, 2ND BRAKE

main35624-12020iACM1#200204-200409

main35624-32010iCXM10,SXM1#199805-200104

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iCXM10,SXM15200008-200104

main90301-99023iCXM10,SXM1#199805-200008

main90301-99100iACM1#200104-200409

main90301-99132iACM1#200104-200409

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-21020×3iSXM10199805-200104

main35648-32010×3iCXM10,SXM15200104-200409

35664CYLINDER, 2ND BRAKE

main35664-12010iACM1#200204-200409

main35664-32010iCXM10,SXM1#199805-200104

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iCXM10,SXM15200104

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90520-99013iSXM10199805-200104

main90521-99013iCXM10,SXM15199805-200104

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-12030iACM1#,CXM10,SXM15200104-200409

main35676-12040iACM1#200204-200305

main35676-12050iACM1#200204-200305

main35676-12060iACM1#200204-200305

main35676-12070iACM1#200204-200305

main35676-32010iCXM10,SXM1#199805-199904

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-20050×3iCXM10200104-200409

main35677-21020×3iACM10,SXM15200104-200409

main35677-28030×3iACM15200208-200305

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-12010iSXM1#199805-200104

main35706-44010iCXM10199805-200104

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-28011iSXM10199805-200104

main90374-30006iCXM10,SXM15200104-200409

35755DRUM, SUN GEAR INPUT

main35755-20020iACM1#200204-200409

main35755-32020iACM10,CXM10,SXM15200104-200204

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iACM1#,CXM10,SXM15200104-200409

main90520-46010iSXM10199805-200104

main90520-47003iCXM10,SXM15199805-200104

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iCXM10,SXM1#199805-200104

35790CLUTCH ASSY, 1 WAY

main35790-32050iCXM10,SXM1#199805-200104

main35790-44010iACM1#,CXM10,SXM15200110-200409

15 parts on this diagram · 1 diagram in section
