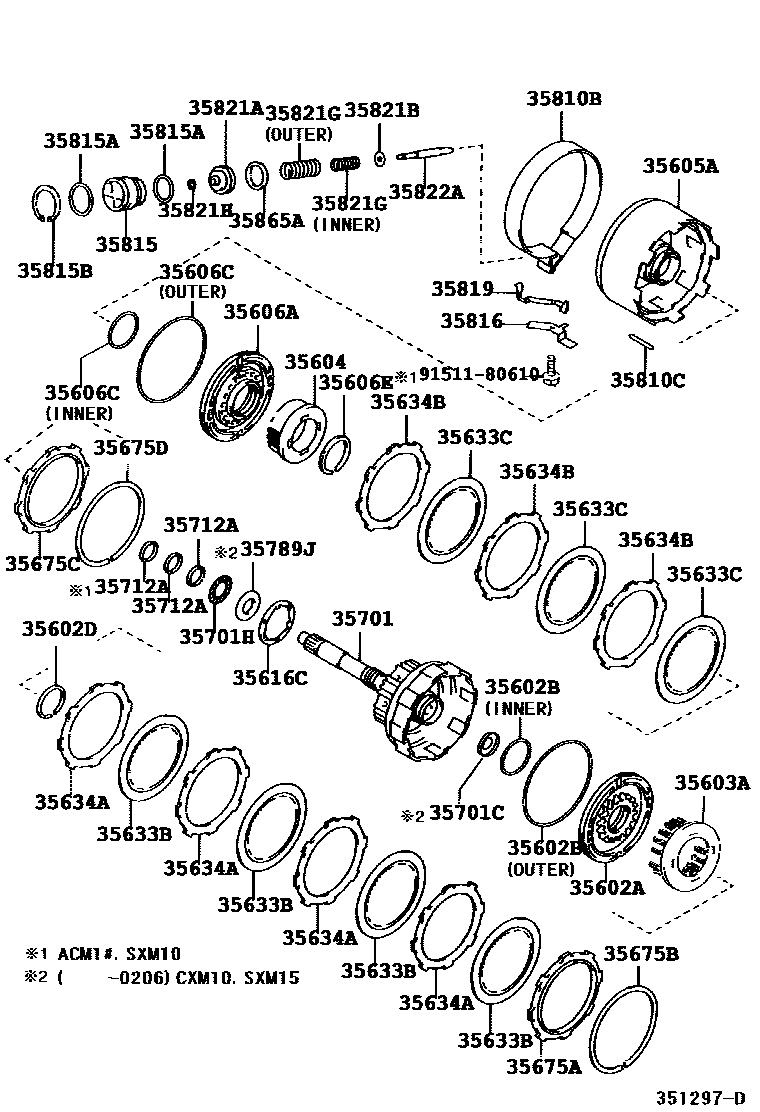

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

35602APISTON SUB-ASSY, FORWARD CLUTCH

main35602-12060iSXM10199805-200409

main35602-12070iCXM10,SXM15199805-200409

35602BRING, O (FOR FORWARD CLUTCH PISTON)

main90301-46002iCXM10,SXM15199805-200409

main90301-49006iACM1#199805-200409

main90301-99016iCXM10,SXM15199805-200409

main90301-99058iSXM10200008-200409

35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

main90520-44001iCXM10,SXM15199805-200409

main90520-47009iSXM10199805-200409

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-12020iSXM10199805-200409

main35603-12030iCXM10,SXM15199805-200409

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35604-12010iACM1#199805-200409

main35604-32010iCXM10,SXM15199805-200409

35605ADRUM SUB-ASSY, DIRECT CLUTCH

main35605-12040iACM1#199805-200409

main35605-17020iCXM10,SXM15199805-200002

sub35605-32060

main35605-32060iCXM10,SXM15200002-200409

35606APISTON SUB-ASSY, DIRECT CLUTCH

main35606-20010iACM1#,CXM10,SXM15199805-200409

35606CRING, O (FOR DIRECT CLUTCH PISTON)

main90301-56007iACM1#200008-200409

main90301-57188iCXM10,SXM15199805-200409

main90301-99016iCXM10,SXM15199805-200409

main90301-99058iACM1#200008-200409

35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

main90520-52002iCXM10,SXM1#199805-200409

35616CWASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)

main35616-12020iSXM10199805-199910

sub35616-12040

main35616-12030iCXM10,SXM15199811-200409

main35616-12040iACM1#199910-200409

main35616-32021iCXM10,SXM15199805-199811

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35633-12040iACM1#199805-200409

main35633-12060iSXM15199805-200208

main35633-32050iCXM10199805-200409

35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35633-12100iACM1#200104-200409

main35633-21020iCXM10,SXM1#199805-200409

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-12030iACM1#199805-200409

main35634-12040iCXM10,SXM15199805-200409

35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35634-12020iACM1#200104-200409

main35634-12030iSXM10199805-200104

main35634-12040iCXM10,SXM15199805-200409

35675AFLANGE, FORWARD CLUTCH

main35635-30060iCXM10,SXM1#200101-200409

main35635-50030iCXM10,SXM1#199805-200101

sub35635-30060

main35675-12010iCXM10,SXM1#199805-200302

sub35675-12060

main35675-12040iACM1#,CXM10200101-200409

main35675-12050iACM1#200101-200409

main35675-12060iSXM10200101-200409

main35675-17010iCXM10,SXM15199805-200302

sub35675-12040

main35675-32010iCXM10,SXM1#199805-200302

sub35675-12050

main35675-32061iCXM10,SXM1#199805-200409

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90521-99001iSXM15199805-200409

35675CFLANGE, DIRECT CLUTCH

main35675-12010iSXM10199805-200101

sub35675-12060

main35675-12020iSXM10200101-200409

main35675-12040iACM1#200101-200409

main35675-12050iACM1#,CXM10200101-200409

main35675-12060iACM1#200101-200409

main35675-17010iSXM10199805-200302

sub35675-12040

main35675-32010iCXM10,SXM1#199805-200302

sub35675-12050

main35675-32030iCXM10,SXM15199805-200302

sub35675-12020

35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)

main90521-99001iCXM10,SXM1#199805-200409

35701SHAFT SUB-ASSY, INPUT

main35701-12030iACM1#199805-200409

main35701-20010iCXM10199805-199812

sub35701-32031

main35701-32031iCXM10,SXM15199805-200409

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-32040iCXM10,SXM15199805-200206

35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)

main90374-28005iCXM10,SXM15199805-200409

main90374-30011iACM1#199805-200409

main90374-30012iSXM10199805-200409

main90374-30013iACM1#199805-200409

35712ARING, INPUT SHAFT OIL SEAL

main35712-32010iSXM10199805-200409

35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)

main35789-32010iCXM10,SXM15199805-200104

35810BBAND ASSY, 2ND COAST BRAKE

main35810-32020iCXM10,SXM1#199805-200409

35810CPIN (FOR 2ND COAST BRAKE BAND)

main90250-07001iCXM10,SXM15199805-200409

main90250-07003iSXM10199805-200409

35815COVER, 2ND COAST BRAKE

main35815-12020iACM1#199805-200409

main35815-32010iCXM10,SXM15199805-200409

35815ARING, O (FOR 2ND COAST BRAKE COVER)

main90301-41002iCXM10,SXM1#199805-200409

35815BRING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)

main90521-48003iSXM10199805-200405

main90521-53001iSXM15199805-200409

35816RETAINER, BRAKE BAND GUIDE PLATE

main35816-12010iCXM10,SXM1#199805-200409

35819PLATE, 2ND COAST BRAKE BAND GUIDE

main35819-12020iSXM15199805-200409

main35819-12030iACM1#199805-200405

35821APISTON, 2ND COAST BRAKE

main35821-32010iCXM10,SXM1#199805-200104

35821BWASHER, PLATE (FOR 2ND COAST BRAKE PISTON)

main90201-06557iCXM10,SXM1#199805-200409

35821GSPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)

main90501-20051iACM1#,CXM10199805-200409

main90501-26024iCXM10,SXM1#199805-200409

main90501-27009iSXM15199805-200208

35821HRING, E (FOR 2ND COAST BRAKE PISTON)

main96160-00500iCXM10,SXM1#199805-200409

35822AROD, 2ND COAST BRAKE PISTON

main35822-32010iCXM10,SXM1#199805-200409

main35822-32020iACM1#,CXM10,SXM15199805-200409

35865ARING, 2ND COAST BRAKE PISTON OIL SEAL

main35865-32010iACM1#,CXM10,SXM15199805-200409

9151180610

main91511-80610

37 parts on this diagram · 1 diagram in section
