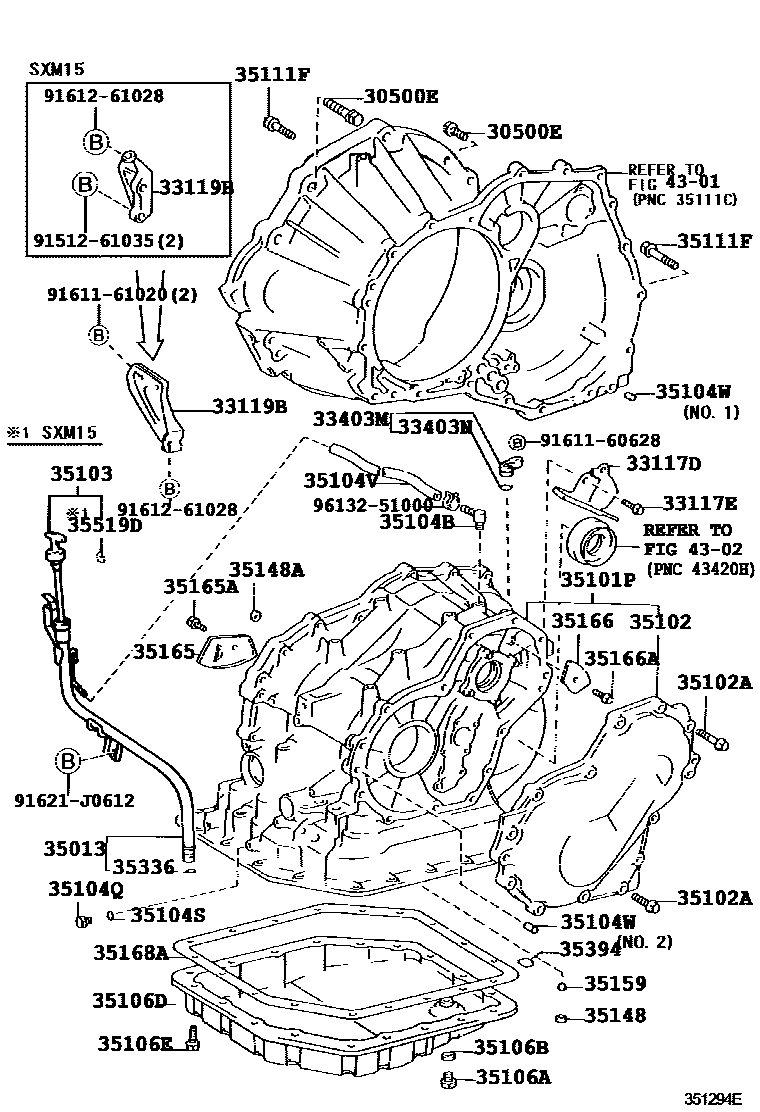

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A241E,A243F 0002 1A247E,A248F

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iSXM10199805-200104

main90105-10077iCXM10,SXM15200104

main90119-12168×3iACM1#200104

main91512-61050iACM1#200104

main91512-61065iACM1#200104

main91619-61245×3iCXM10,SXM15200104

main91641-H0820×2iCXM10200208

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iCXM10,SXM1#199805-200104

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iCXM10,SXM1#199805-200104

main91641-H0820×2iACM15,CXM10200208

33119BPLATE, STIFFENER, LH(ATM)

main33119-32010iCXM10199805-200104

main33119-32020iSXM15200104-200208

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iCXM10,SXM1#199805-200104

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018iCXM10,SXM1#199805-200104

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-44040iCXM10199805-200104

main35013-44050iSXM15200104-200208

main35013-44060iACM1#200104

35101PCASE & COVER SUB-ASSY, TRANSAXLE

main35101-20034iCXM10,SXM15199805-200104

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-20031iCXM10,SXM15199805-200104

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-06198×2iACM1#200104-200409

main90105-08065×10iCXM10,SXM15199805-200104

main90105-08068×3iCXM10,SXM15199805-200104

main90105-08333×3iCXM10200104-200409

sub91551-C0835

main91511-80625×11iSXM10199805-200104

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-44030iCXM10200104

main35103-44040iSXM10199805-200104

main35103-44060iSXM15199805-200104

main35103-44070iACM1#200104

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03101iACM1#,CXM10,SXM15200104-200409

main90930-03132iSXM10199805-200104

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iACM1#200104-200409

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iSXM15200104-200409

35104VHOSE (FOR BREATHER PLUG)

main90447-11017iCXM10,SXM15199805-200104

main90447-11040iSXM10199805-200104

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10021×2iACM15200104-200409

main90250-11001×2iCXM10200104-200409

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iCXM10,SXM15199805-200104

main90341-10011iACM1#200104-200405

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iCXM10200104-200409

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-12070iCXM10,SXM15200001-200104

main35106-12100iACM1#200104-200409

main35106-12110iCXM10199805-200001

main35106-12120iSXM10199805-200104

sub35106-12090

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iSXM15200104-200409

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08065×10iCXM10,SXM15199805-200104

main90105-08066×2iCXM10200104-200409

main90105-08068iSXM10199805-200104

main90105-08071×2iSXM10199805-200104

main90105-08288×3iACM1#200104-200409

main90105-08333iSXM15200104-200409

sub91551-C0835

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iACM15200104-200405

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010iACM15200104-200409

35159GASKET, BRAKE DRUM

main35159-20010iACM15200104-200409

35165PLATE, TRANSMISSION CASE, NO.1

main35165-20010iCXM10,SXM1#199805-200104

main35165-44010iACM1#200104-200409

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iCXM10,SXM1#199805-200104

35166PLATE, TRANSMISSION CASE, NO.3

main35166-12020iACM15200104-200409

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90105-06049iACM15200104-200409

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iCXM10200104-200111

main35168-12030iSXM10199805-200104

main35168-12060iACM1#200104-200409

main35168-12080iCXM10200112-200409

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iACM1#,CXM10,SXM15200104

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iACM15200104-200405

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-16040iSXM15199805-200104

main35519-20030iACM10200104-200208

main35519-52010iACM1#200208

4301

4302

9151261035

main91512-61035

9161160628

main91611-60628

9161161020

main91611-61020

9161261028

main91612-61028

91621J0612

main91621-J0612

9613251000

main96132-51000

40 parts on this diagram · 2 diagrams in section
