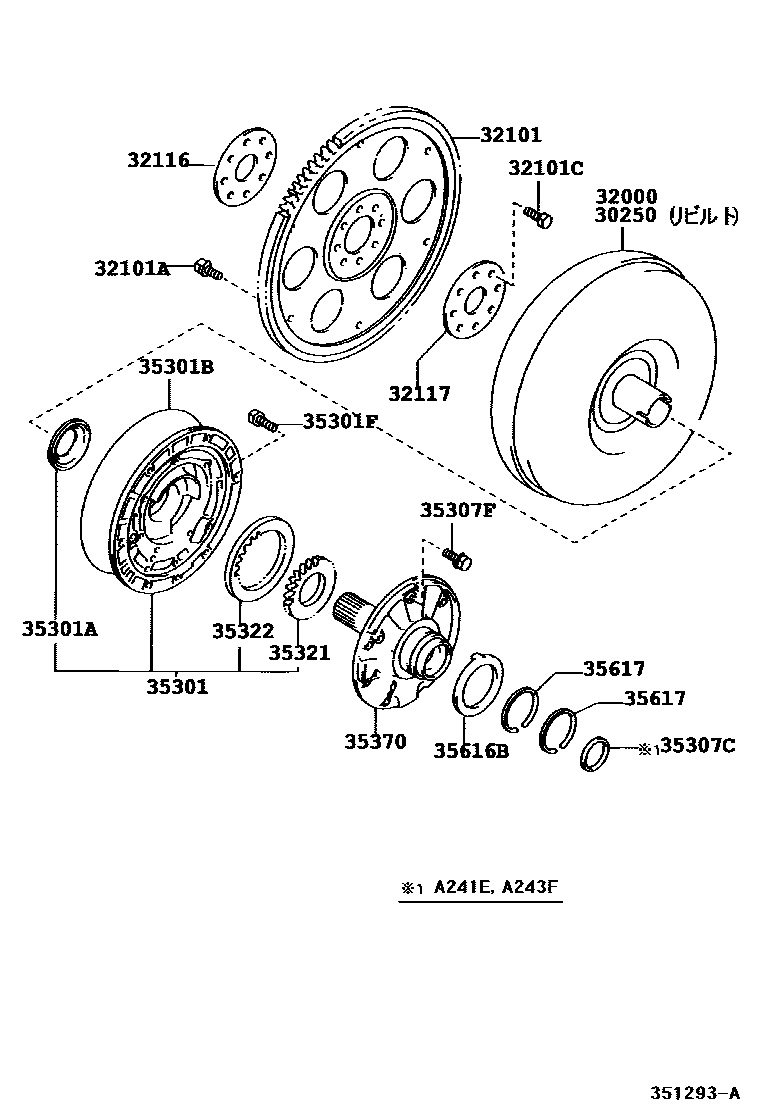

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-21040iCXM10199805-200409

main30250-44010iSXM10199805-200104

main30250-44020iSXM15199805-200208

main30250-44050iACM1#200104-200409

32000CONVERTER ASSY, TORQUE

main32000-21040iCXM10199805-200409

main32000-44010iSXM10199805-200104

main32000-44020iSXM15199805-200208

main32000-44050iACM1#200104-200405

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-28040iACM1#200104

main32101-32051iSXM1#199805-200208

main32101-32120iCXM10199805-200104

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iSXM1#199805-200208

main90109-09001iACM10,CXM10199805-200208

main90119-08498iSXM1#199805-200208

main90119-09025iACM10,CXM10199805-200208

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12184iACM1#200104

sub90105-12384

main90109-10037iCXM10199805-200104

main90109-10054iSXM15199805-200208

32116SPACER, DRIVE PLATE, FRONT

main32116-20030iCXM10199805-200104

main32116-20050iACM1#200104

main32116-32011iSXM15199805-200208

32117SPACER, DRIVE PLATE, REAR

main32117-20040iCXM10199805-200104

main32117-20060iACM1#200104

main32117-32010iSXM1#199805-200208

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-12010iCXM10199805-200409

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iCXM10,SXM1#199805-200009

main90311-38082iCXM10,SXM1#200009-200409

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iCXM10,SXM1#199805-200409

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08198iCXM10199805-200409

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-12080iCXM10,SXM15199805-200409

main35789-32020iCXM10199805-200409

main35789-32030iCXM10,SXM15199805-200409

35307FBOLT (FOR STATOR SHAFT)

main90119-06559iACM1#200104-200409

main90119-06808iSXM15199805-200208

sub90119-06559

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iSXM15199805-200409

main35321-12030iCXM10199805-200409

main35321-12040iCXM10199805-200409

main35321-12050iCXM10199805-200409

main35321-12060iCXM10199805-200409

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iSXM15199805-200409

main35322-12020iACM1#199805-200409

main35322-12030iCXM10199805-200409

main35322-12040iSXM15199805-200409

main35322-12050iACM1#199805-200409

35370SHAFT ASSY, STATOR

main35370-12040iSXM15199805-200409

main35370-12050iSXM10199805-200104

sub35370-32060

main35370-32060iACM1#200104-200409

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iCXM10199805-200409

35617RING, CLUTCH DRUM OIL SEAL

main35617-32011iCXM10199805-200409

18 parts on this diagram · 1 diagram in section
