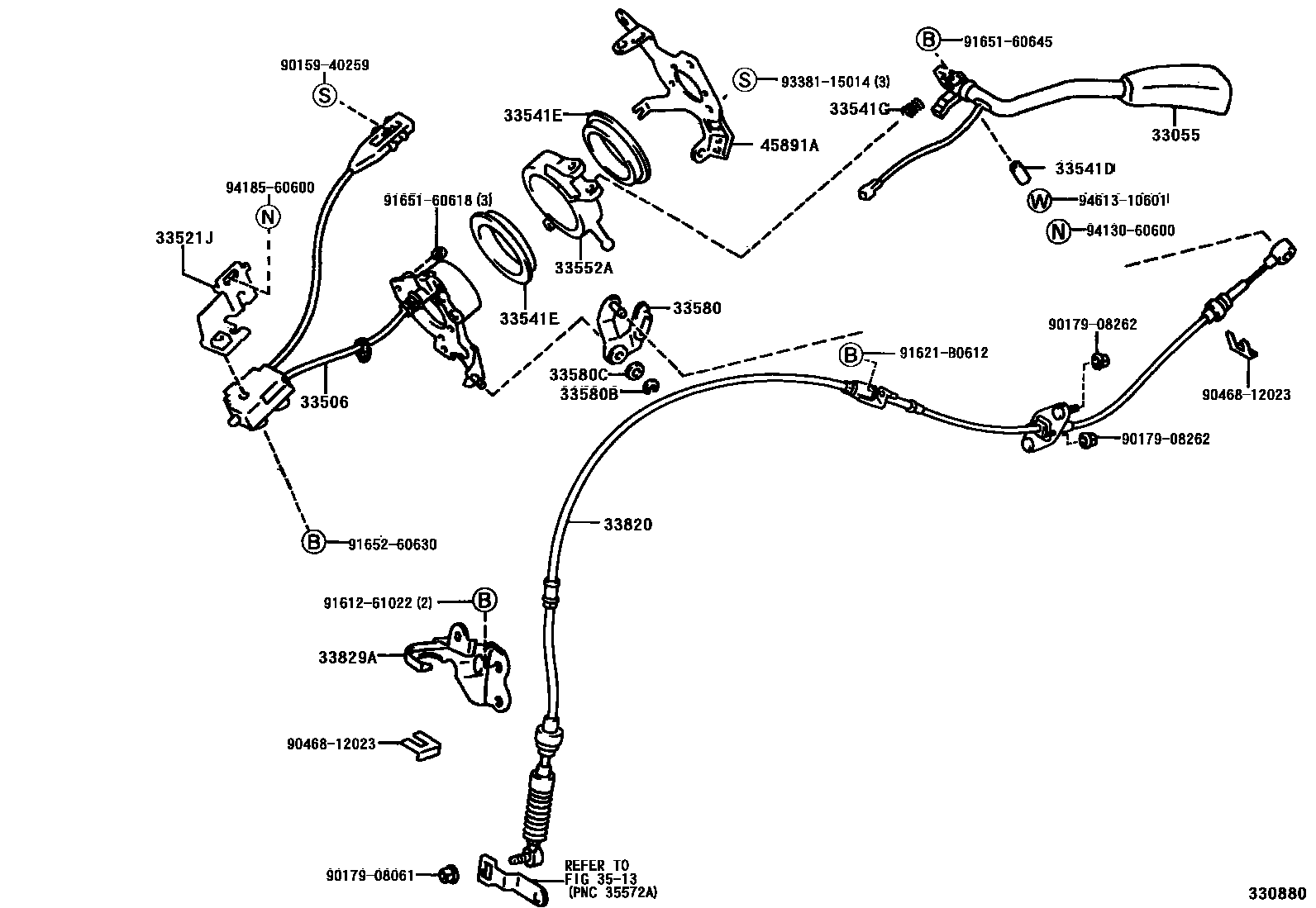

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1

33055LEVER SUB-ASSY, COLUMN SHIFT

main33055-44030iCXM10,SXM1#199805-200104

main33055-44050-B0iACM1#200104-200409

DK.GRAY,TRIM1#

main33055-44050-E0iACM1#,CXM10200104-200409

SANDAL WOOD,TRIM0#

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33506-44040iCXM10,SXM1#199805-200104

33521JHOUSING, SHIFT LEVER (FOR COLUMN SHIFT)

main33521-44010iCXM10,SXM1#199805-200104

33541DCOLLAR (FOR COLUMN SHIFT LEVER)

main90387-06062iCXM10,SXM1#199805-200104

33541EBUSH (FOR COLUMN SHIFT LEVER)

main90387-49001iCXM10,SXM1#199805-200104

33541GSPRING, COMPRESSION (FOR COLUMN SHIFT LEVER)

main90501-16150iCXM10,SXM1#199805-200104

33552AARM, SHIFT LEVER

main33552-44011iCXM10,SXM1#199805-200104

33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)

main33580-44010iCXM10,SXM1#199805-200104

33580BRING, SHAFT SNAP (FOR SHIFTING BELLCRANK)

main96160-01000iCXM10,SXM1#199805-200104

33580CWASHER, PLATE (FOR SHIFTING BELL CRANK)

main90560-11028iCXM10,SXM1#199805-200104

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-44070iSXM15199805-200208

sub33820-44071

main33820-44100iCXM10199805-200104

sub33820-44101

main33820-44200iACM1#200104

sub33820-44201

33829ASUPPORT, TRANSMISSION CONTROL CABLE

main33829-44010iCXM10199805-200104

main33829-44030iSXM1#199805-200104

3513

45891ABRACKET, TURN SIGNAL

main45891-44020iCXM10,SXM1#199805-200104

9015940259

main90159-40259

9017908061

main90179-08061

9017908262

main90179-08262

9046812023

main90468-12023

9161261022

main91612-61022

91621B0612

main91621-B0612

9165160618

main91651-60618

9165160645

main91651-60645

9165260630

main91652-60630

9338115014

main93381-15014

9413060600

main94130-60600

9418560600

main94185-60600

9461310601

main94613-10601

27 parts on this diagram · 2 diagrams in section
