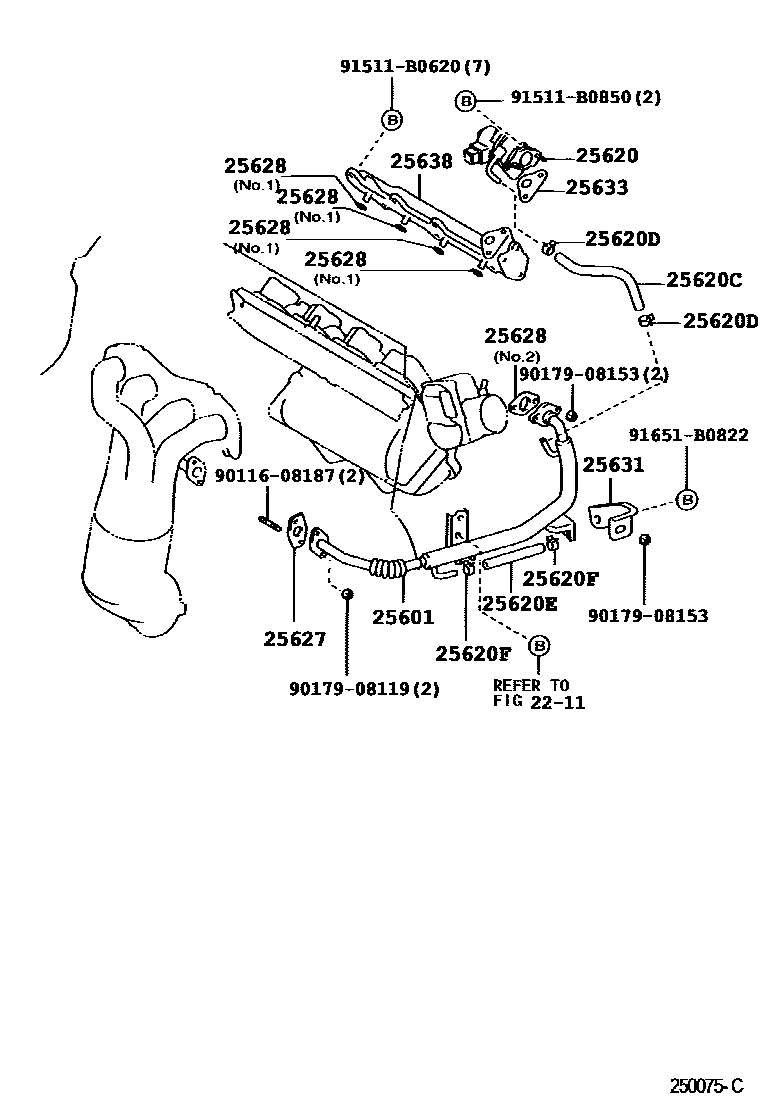

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

2211

25601PIPE SUB-ASSY, EGR, NO.1

main25601-64071i3CTE..CXM10199805-200409

main25611-28010i1AZFSE..ACM1#200104-200409

sub25611-28011

25620VALVE ASSY, EGR

main25620-28090i1AZFSE..ACM1#200104-200409

sub25620-28091

main25620-64210i3CTE..CXM10199805-200409

25620CHOSE, WATER BY-PASS, NO.1

main99555-10100i1AZFSE..ACM1#200104-200409

25620DCLIP(FOR WATER BY-PASS HOSE, NO.1)

main96135-51300i1AZFSE..ACM1#200104-200409

25620EHOSE, WATER BY-PASS NO.2

main99555-10200i1AZFSE..ACM1#200104-200409

25620FCLIP(FOR WATER BY-PASS HOSE, NO.2)

main96135-51300i1AZFSE..ACM1#200104-200409

25627GASKET, EGR VALVE

main25627-64030i3CTE..CXM10199805-200409

main25627-74080i1AZFSE..ACM1#200104-200409

25628GASKET, EGR INLET

main25628-28010i1AZFSE..ACM1#200104-200409

main25628-28030i1AZFSE..ACM1#200104-200409

main25628-64030i3CTE..CXM10199805-200409

25631STAY, EGR PIPE, NO.1

main25631-28010i1AZFSE..ACM1#200104-200409

25633GASKET, EGR VALVE

main25633-28010i1AZFSE..ACM1#200104-200409

25638CHAMBER, EGR DELIVERY

main25638-28010i1AZFSE..ACM1#200104-200409

sub25638-28011

9011608187

main90116-08187

9017908119

main90179-08119

9017908153

main90179-08153

91511B0620

main91511-B0620

91511B0850

main91511-B0850

91651B0822

main91651-B0822

18 parts on this diagram · 2 diagrams in section
