FUEL FILTER

23301ACAP ASSY, FUEL FILTER

main23380-64500i3CTE..CXM10199805-200104

sub23380-64501

main23380-64510i3CTE..CXM10199805-200104

sub23380-64511

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-64450i3CTE..CXM10199805-200104

sub23390-33030

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i3CTE..CXM10199805-200104

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i3CTE..CXM10199805-200104

23328GASKET(FOR FUEL FILTER)

main23344-64010i3CTE..CXM10199805-200104

23389CLAMP, FUEL FILTER

main23389-64490i3CTE..CXM10199805-200104

23910BHEATER ASSY, FUEL

main23910-64040i3CTE..CXM10199805-200104

23921SUPPORT, FUEL FILTER

main23921-64280i3CTE..CXM10199805-200104

84461BSWITCH, LEVEL WARNING

main84461-28040iCXM10199805-200409

sub84461-28041

9161560825

main91615-60825

9162660816

main91626-60816

9331914008

main93319-14008

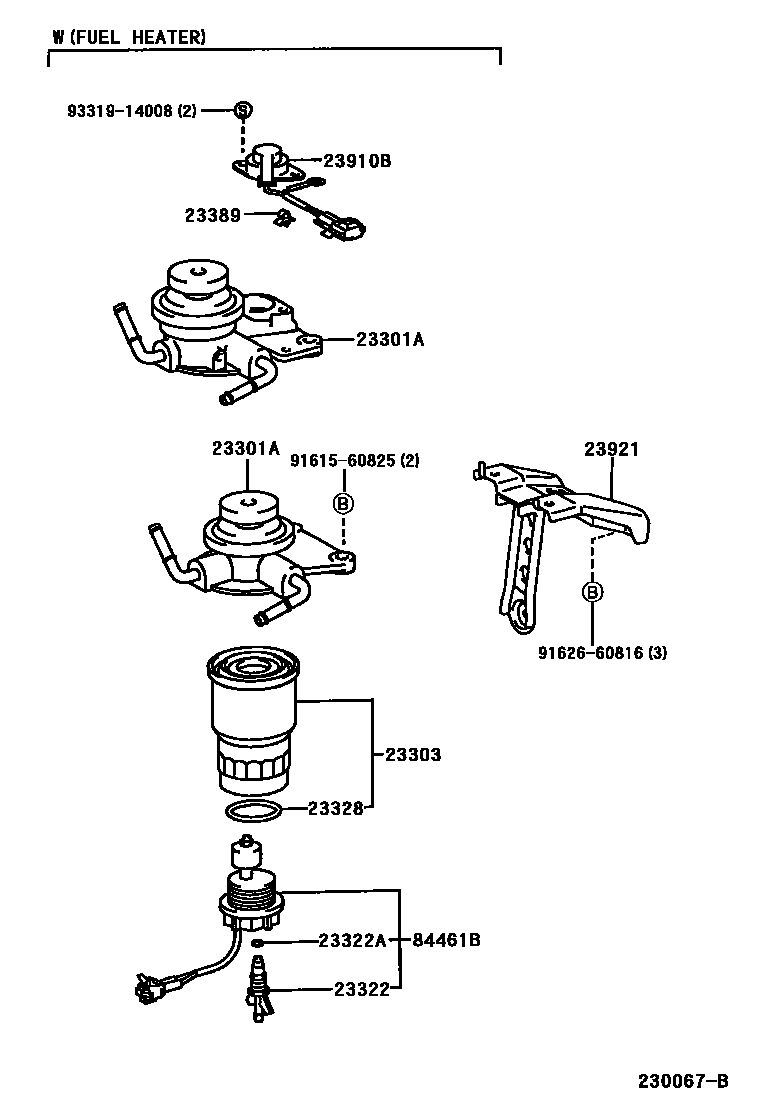

12 parts on this diagram · 1 diagram in section
