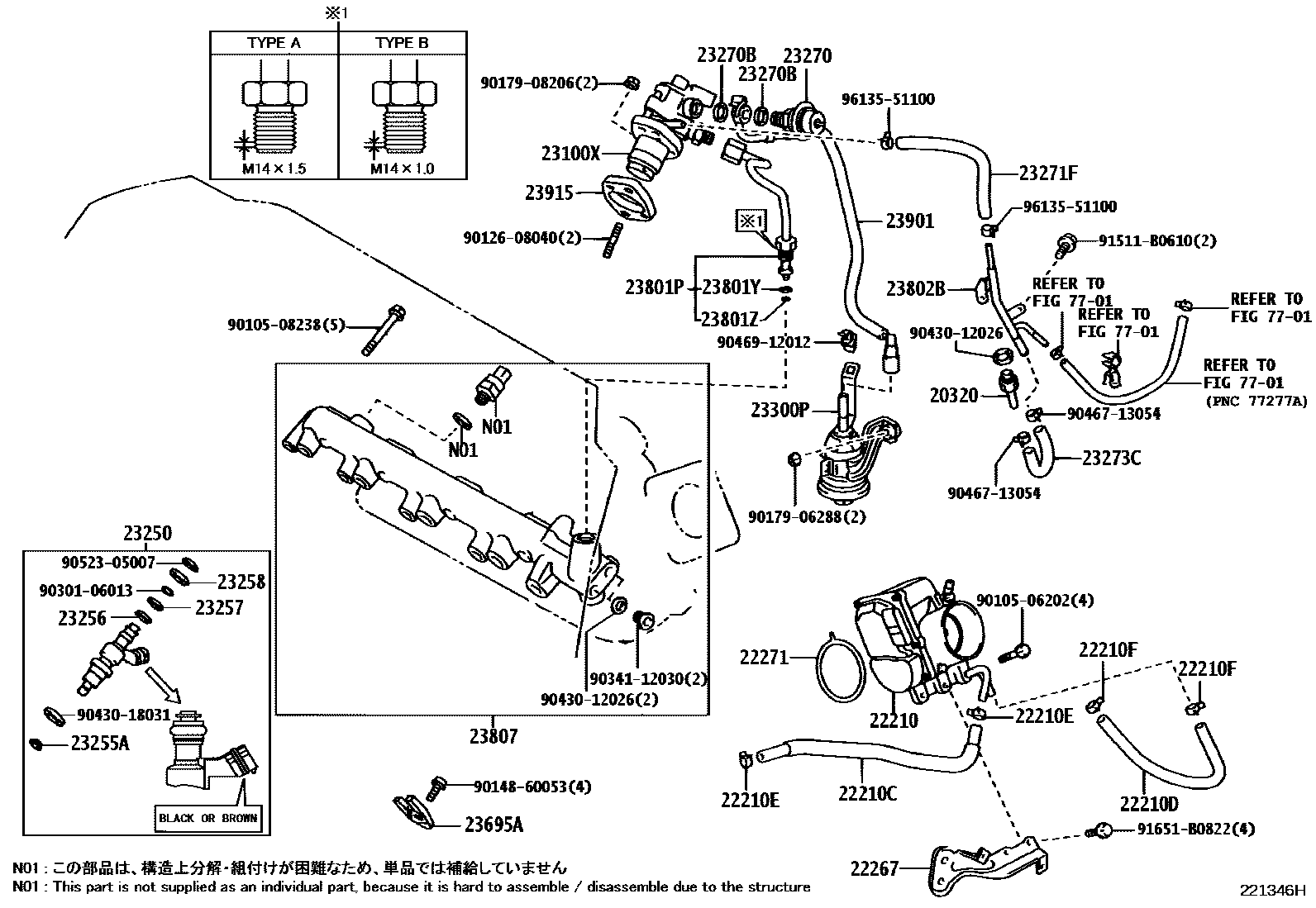

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

20320VALVE ASSY, FUEL RELIEF

main20320-28010i1AZFSE..ACM1#200104-200303

sub20320-28011

main20320-28011i1AZFSE..ACM1#200304-200409

22210BODY ASSY, THROTTLE

main22030-28010i1AZFSE..ACM10200104-200111

sub22030-28011

main22030-28011i1AZFSE..ACM1#200111-200409

main22210-7A560i3SFE..SXM1#199805-200208

22210CHOSE, WATER BY-PASS, NO.1

main16261-28030i1AZFSE..ACM1#200104-200409

main16283-74050i3SFE..SXM15199805-200208

22210DHOSE, WATER BY-PASS, NO.2

main16282-74100i3SFE..SXM1#199805-200208

main99555-10500i1AZFSE..ACM1#200104-200409

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main90467-13050i3SFE..SXM1#199805-200204

sub96135-51300

main96135-51300i1AZFSE..ACM1#200104-200409

22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

main90467-13050i3SFE..SXM1#199805-200204

sub96135-51300

main96135-51300i3SFE..SXM15200104-200409

22267BRACKET, THROTTLE BODY

main22267-28010i1AZFSE..ACM1#200104-200409

22271GASKET, THROTTLE BODY

main22271-28030i1AZFSE..ACM1#200104-200409

main22271-74070i3SFE..SXM1#199805-200208

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23100-28040i1AZFSE..ACM1#200104-200304

sub23100-28041

main23100-28041i1AZFSE..ACM1#200304-200312

sub23100-28042

main23100-28042i1AZFSE..ACM1#200312

sub23100-28043

23250INJECTOR ASSY, FUEL

main23209-29025i1AZFSE..ACM1#200104-200409

sub23209-29026

main23209-74170i3SFE..SXM1#199805-200208

23255ASEAL, FUEL INJECTOR

main23255-28010i1AZFSE..ACM1#200104-200409

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010i1AZFSE..ACM1#200205-200409

main23256-74010i1AZFSE..ACM10200104-200205

main23256-74010i1AZFSE..ACM1#200205-200409

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010i1AZFSE..ACM1#200104-200409

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-28010i1AZFSE..ACM10200104-200205

sub23258-28011

main23258-28010i1AZFSE..ACM1#200205-200409

sub23258-28011

main23258-74010i1AZFSE..ACM1#200205-200409

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-46010i3SFE..SXM15199805-200208

sub23207-20011

main23270-28040i1AZFSE..ACM1#200104-200409

sub23270-31050

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23279-74010i3SFE..SXM1#199805-200409

23271FHOSE, FUEL

main23271-28050i1AZFSE..ACM1#200104-200409

sub23271-28051

23273CHOSE, FUEL, NO.2

main23273-28010i1AZFSE..ACM1#200104-200409

23300PFILTER, FUEL(FOR EFI)

main23300-74300i3SFE..SXM1#199805-200208

23695ACLAMP, NOZZLE HOLDER

main23695-28010i1AZFSE..ACM1#200104-200409

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-28040i1AZFSE..ACM10200104-200105

sub23801-28060

main23801-28041i1AZFSE..ACM10200105-200109

sub23801-28070

main23801-28041i1AZFSE..ACM10200109-200205

sub23801-28070

main23801-28043i1AZFSE..ACM1#200205-200409

sub23801-28050

23801YGASKET

main90430-07006i1AZFSE..ACM10200104-200205

23801ZRING, SNAP(FOR FUEL PIPE)

main90520-05003i1AZFSE..ACM10200104-200205

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-28020i1AZFSE..ACM1#200104-200409

main23802-74070i3SFE..SXM1#199805-200208

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-28020i1AZFSE..ACM10200104-200105

sub23807-28021

sub23801-28041

main23807-28021i1AZFSE..ACM10200109-200205

sub23807-28023

sub23801-28043

sub91621-J0614

main23807-28021i1AZFSE..ACM10200105-200109

sub23807-28023

sub23801-28043

sub91621-J0614

main23807-28023i1AZFSE..ACM1#200205-200409

sub23807-28024

main23814-74110i3SFE..SXM1#199805-200208

sub23814-74080

23901TUBE SUB-ASSY, FUEL

main23901-28120i1AZFSE..ACM1#200104-200405

sub23901-28121

main23901-28121i1AZFSE..ACM1#200405-200409

23915INSULATOR, FUEL PUMP

main23915-46011i1AZFSE..ACM1#200104-200409

7701

9010506202

main90105-06202

9010508238

main90105-08238

9012608040

main90126-08040

9014860053

main90148-60053

9017906288

main90179-06288

9017908206

main90179-08206

9030106013

main90301-06013

9034112030

main90341-12030

9043012026

main90430-12026

9043018031

main90430-18031

9046713054

main90467-13054

9046912012

main90469-12012

9052305007

main90523-05007

91511B0610

main91511-B0610

91651B0822

main91651-B0822

9613551100

main96135-51100

44 parts on this diagram · 5 diagrams in section
