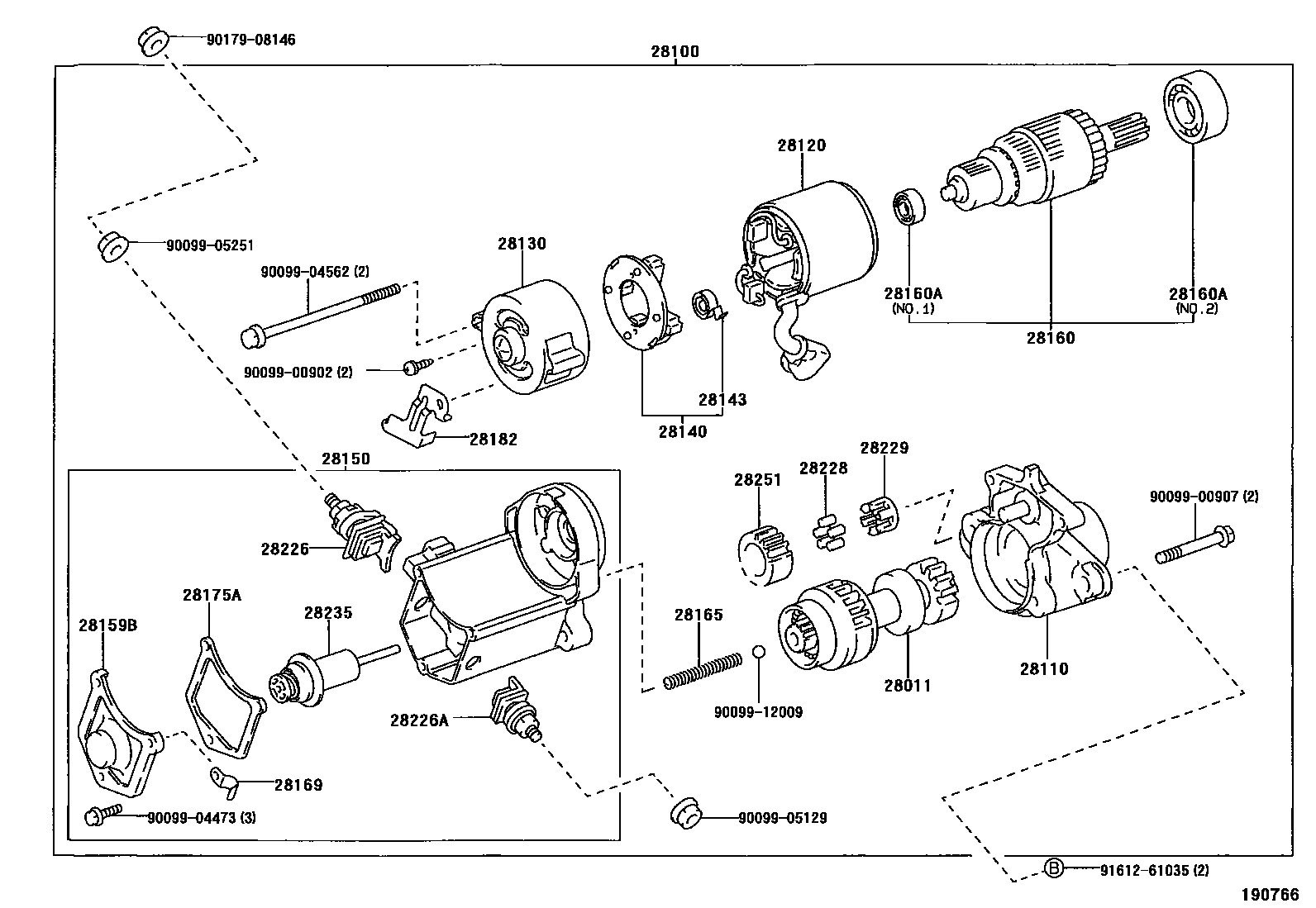

STARTER

0001 112V 1.0KW 0002 112V 1.4KW 0003 112V 2.2KW 0004 112V 1.2KW 0005 112V 1.4KW 0006 112V 2.2KW

28011CLUTCH SUB-ASSY, STARTER

main28011-64010i3CTE..CXM10199805-200104

12V 2.2KW

sub28011-67030

main28011-64130i3CTE..CXM10199805-200104

12V 1.4KW

main28011-74060i3SFE..SXM1#199805-200104

main28011-74070i1AZFSE,3SFE..ACM1#,SXM15200104

28100STARTER ASSY

main28100-64300i3CTE..CXM10199805-200104

main28100-64310i3CTE..CXM10199805-200104

main28100-74130i1AZFSE,3SFE..ACM1#,SXM15200104

sub28100-74140

main28100-74250i3SFE..SXM1#199805-200104

sub28100-74140

28110HOUSING ASSY, STARTER DRIVE

main28110-64170i3CTE..CXM10199805-200104

12V 1.4KW

main28110-74110i3SFE..SXM1#199805-200104

main28115-64040i3CTE..CXM10199805-200104

12V 2.2KW

28120YOKE ASSY, STARTER

main28120-16180i1AZFSE,3SFE..ACM1#,SXM15200104

main28120-26071i3SFE..SXM1#199805-200104

main28120-55050i3CTE..CXM10199805-200104

12V 1.4KW

main28120-64040i3CTE..CXM10199805-200104

12V 2.2KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-64130i3CTE..CXM10199805-200104

main28130-74250i3SFE..SXM1#199805-200104

28140HOLDER ASSY, STARTER BRUSH

main28140-64040i3CTE..CXM10199805-200104

12V 2.2KW

main28140-64130i3CTE..CXM10199805-200104

12V 1.4KW

main28140-74010i3SFE..SXM1#199805-200104

main28140-74120i1AZFSE,3SFE..ACM1#,SXM15200104

28143SPRING, STARTER BRUSH

main90099-17112i3SFE..SXM1#199805-200104

12V 1.4KW

main90099-17115i3CTE..CXM10199805-200104

12V 2.2KW

28150SWITCH ASSY, MAGNET STARTER

main28150-64310i3CTE..CXM10199904-200104

12V 2.2KW

main28150-64341i3CTE..CXM10199805-200104

12V 1.4KW

main28150-64390i3CTE..CXM10199805-199904

12V 2.2KW

sub28150-64310

main28150-74140i1AZFSE,3SFE..ACM1#,SXM15200104

main28150-74250i3SFE..SXM1#199805-200104

12V 1.0KW

28159BCOVER, MAGNET SWITCH

main28159-10040i3SFE..SXM1#199805-200104

12V 2.2KW

main28159-55050i3CTE..CXM10199805-200104

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-26071i3SFE..SXM1#199805-200104

main28160-64041i3CTE..CXM10199805-200104

12V 2.2KW

main28160-74070i3CTE..CXM10199805-200104

12V 1.4KW

main28160-76060i1AZFSE,3SFE..ACM1#,SXM15200104

28160ABEARING, STARTER ARMATURE

main28253-45020i3SFE..SXM1#199805-200104

main28253-54070i3CTE..CXM10199805-200104

main90099-10113i3SFE..SXM1#199805-200104

main90099-10143i3CTE..CXM10199805-200104

main90099-10196i3CTE..CXM10199805-200104

main90099-10197i3CTE..CXM10199805-200104

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i3CTE..CXM10199805-200104

12V 2.2KW

main28165-74010i3SFE..SXM1#199805-200104

main28165-76070i3CTE..CXM10199805-200104

12V 1.4KW

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-10040i3SFE..SXM1#199805-200104

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i3SFE..SXM1#199805-200104

12V 2.2KW

main28175-55050i3CTE..CXM10199805-200104

12V 1.4KW

28182STAY, STARTER COMMUTATOR END FRAME

main28182-74250i3SFE..SXM1#199805-200104

28226STARTER KIT, BATTERY TERMINAL

main28226-54330i3CTE..CXM10199904-200104

12V 2.2KW

main28226-55050i3CTE..CXM10199805-200104

12V 1.4KW

sub28226-64370

main28226-70040i3SFE..SXM1#199805-200104

12V 1.0KW

main28226-76100i3CTE..CXM10199805-199904

12V 2.2KW

28226ASTARTER KIT, MOTOR TERMINAL

main28226-72010i3CTE..CXM10199805-200104

12V 2.2KW

main28226-74070i3CTE..CXM10199805-200104

12V 1.4KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i3CTE,3SFE..CXM10,SXM1#199805-200104

28229RETAINER, STARTER IDLE GEAR

main28229-26040i3CTE..CXM10199805-200104

12V 2.2KW

main28229-74070i3CTE..CXM10199805-200104

12V 1.4KW

28235PLUNGER, MAGNET SWITCH

main28235-35080i3CTE..CXM10199805-200104

12V 2.2KW

main28235-55050i3CTE..CXM10199805-200104

12V 1.4KW

main28235-74060i3SFE..SXM1#199805-200104

28251PINION, STARTER DRIVE

main28251-54070i3CTE..CXM10199805-200104

main28254-54070i3SFE..SXM1#199805-200104

9009900902

main90099-00902

9009900907

main90099-00907

9009904473

main90099-04473

9009904562

main90099-04562

9009905129

main90099-05129

9009905251

main90099-05251

9009912009

main90099-12009

9017908146

main90179-08146

9161261035

main91612-61035

30 parts on this diagram · 6 diagrams in section
