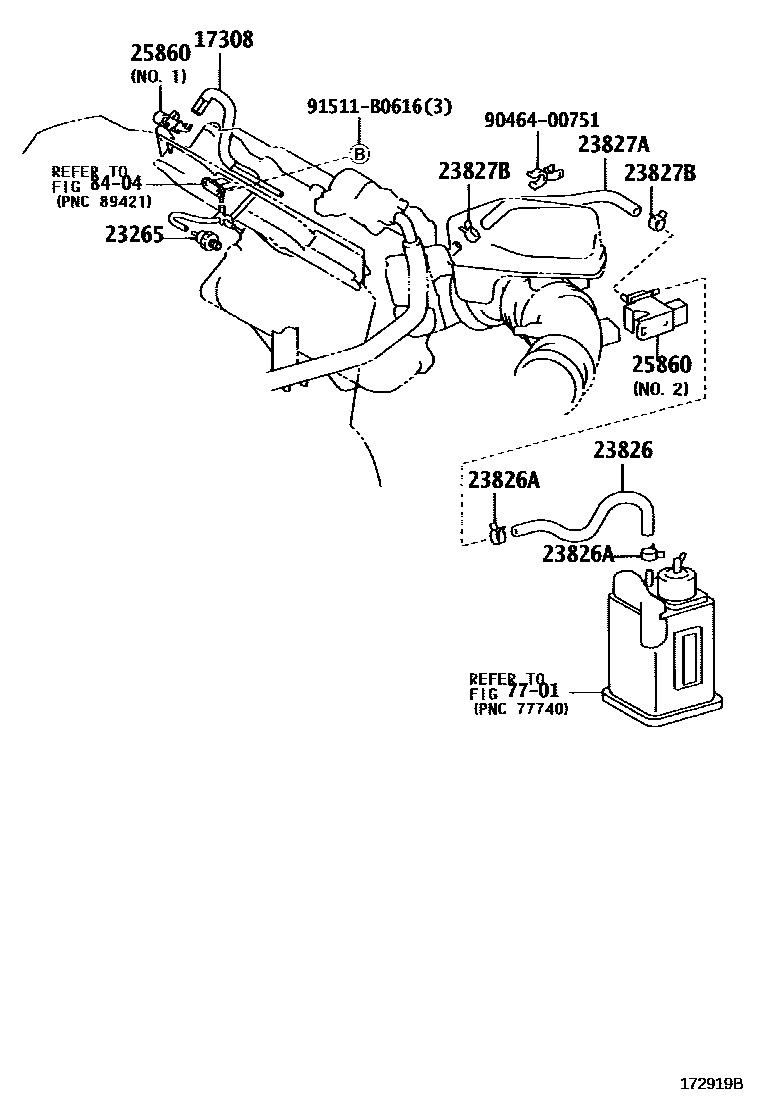

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-28010i1AZFSE..ACM1#200104-200409

23265FILTER, GAS, NO.1

main90917-11037i3SFE..SXM15199805-200409

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-28090i1AZFSE..ACM1#200104

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-41100i1AZFSE..ACM1#200104

sub96132-51100

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-28100i1AZFSE..ACM10200104-200208

sub23827-28101

main23827-28101i1AZFSE..ACM1#200208

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51300i1AZFSE..ACM1#200104

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-16200i3SFE..SXM1#199805-200208

main25860-28020i1AZFSE..ACM1#200104-200409

main25860-28030i1AZFSE..ACM1#200104-200409

7701

8404

9046400751

main90464-00751

91511B0616

main91511-B0616

11 parts on this diagram · 4 diagrams in section
