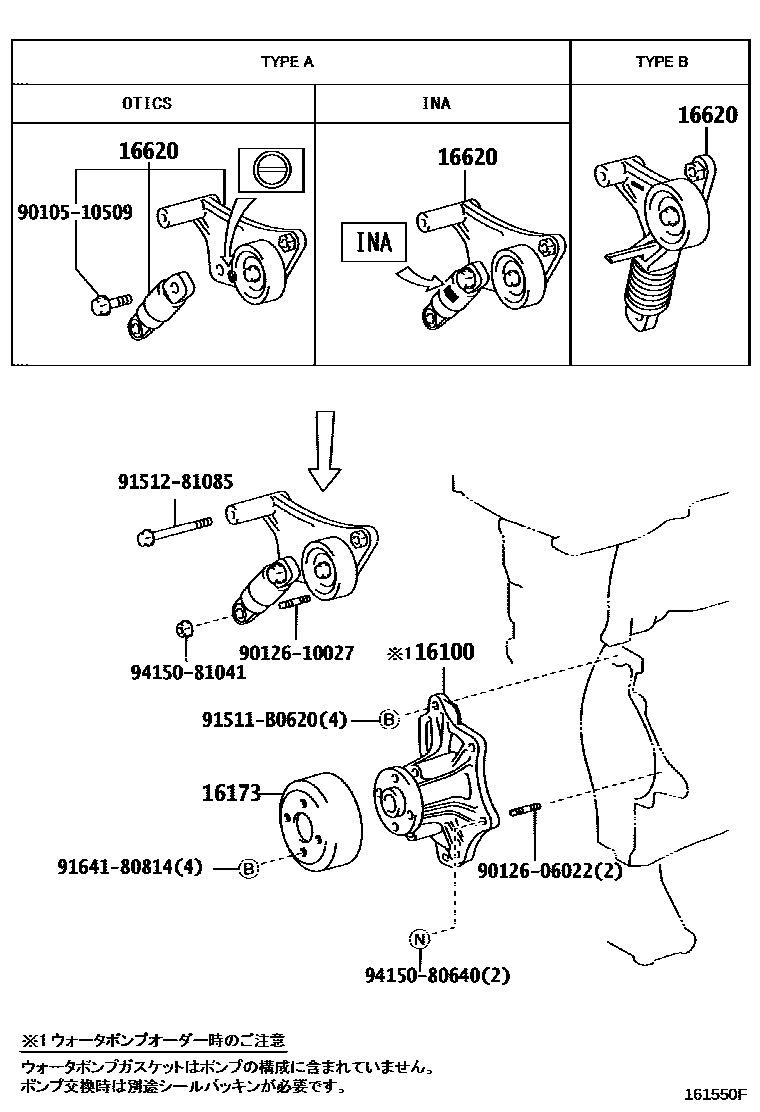

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-28040i1AZFSE..ACM1#200104-200409

sub16100-28041

main16100-69296i3CTE..CXM10199805-199811

sub16100-69425

main16100-69298i3CTE..CXM10199811-200012

sub16100-69435

main16100-69435i3CTE..CXM10200012-200409

main16100-79185i3SFE..SXM15199805-200208

sub16100-79186

16173PULLEY, WATER PUMP

main16173-28020i1AZFSE..ACM1#200104-200409

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0H020i1AZFSE..ACM1#200104-200409

sub16620-0H021

main16620-28011i1AZFSE..ACM1#200104-200409

sub16620-0W110

9010510509

main90105-10509

9012606022

main90126-06022

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

11 parts on this diagram · 3 diagrams in section
