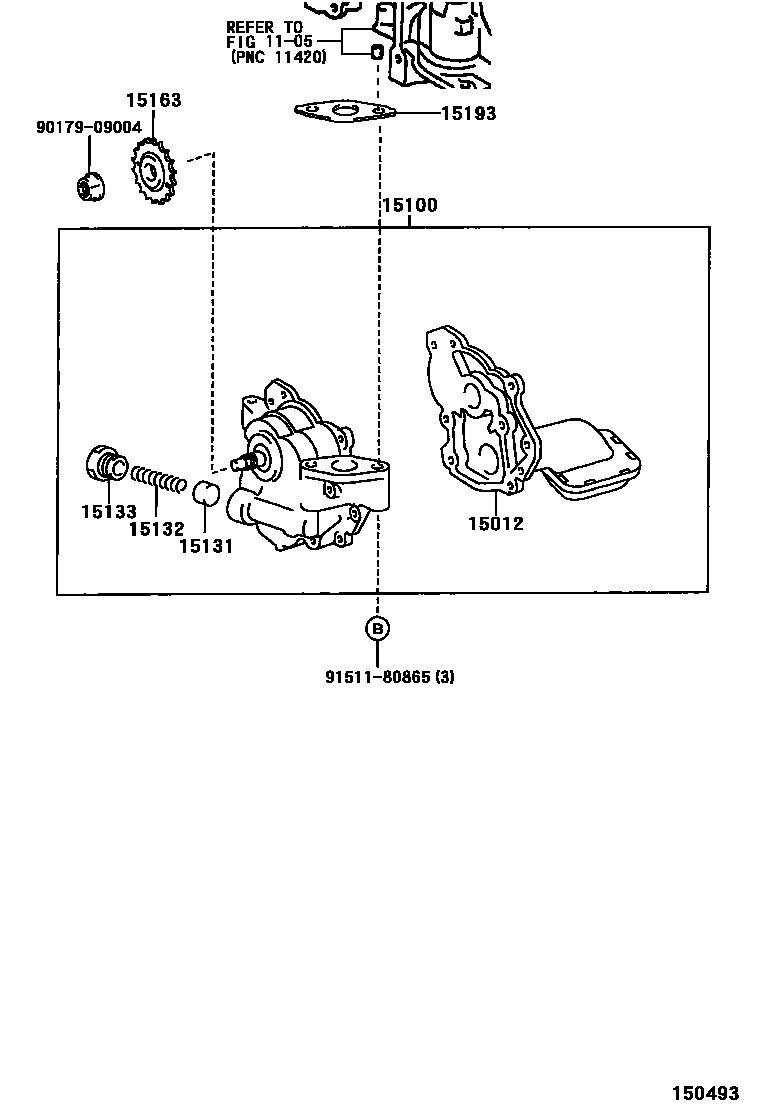

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

1105

15012COVER SUB-ASSY, OIL PUMP

main15012-28030i1AZFSE..ACM1#200104-200409

15100PUMP ASSY, OIL

main15100-28030i1AZFSE..ACM1#200104-200409

main15100-64040i3CTE..CXM10199805-199812

sub90119-08B81

main15100-64041i3CTE..CXM10199812-199906

main15100-64042i3CTE..CXM10200104-200409

main15100-74050i3SFE..SXM15200104-200208

15131VALVE, OIL PUMP RELIEF

main15131-24010i3SFE..SXM1#199805-200104

main15131-46040i1AZFSE..ACM1#200104-200409

main15131-64020i3CTE..CXM10199805-199812

main15131-64041i3CTE..CXM10200104-200409

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i3CTE..CXM10199812-200104

main15132-28020i1AZFSE..ACM1#200104-200409

main15132-40010i3SFE..SXM1#199805-200104

main15132-64012i3CTE..CXM10199805-199812

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i3CTE..CXM10199805-199812

main15133-28020i1AZFSE..ACM1#200104-200409

main15133-64041i3CTE..CXM10199812-200104

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i1AZFSE..ACM1#200104-200409

15193GASKET, OIL PUMP

main15193-28010i1AZFSE..ACM1#200104-200409

main15193-64022i3CTE..CXM10199805-200104

main15197-74040i3SFE..SXM1#199805-200104

9017909004

main90179-09004

9151180865

main91511-80865

10 parts on this diagram · 4 diagrams in section
